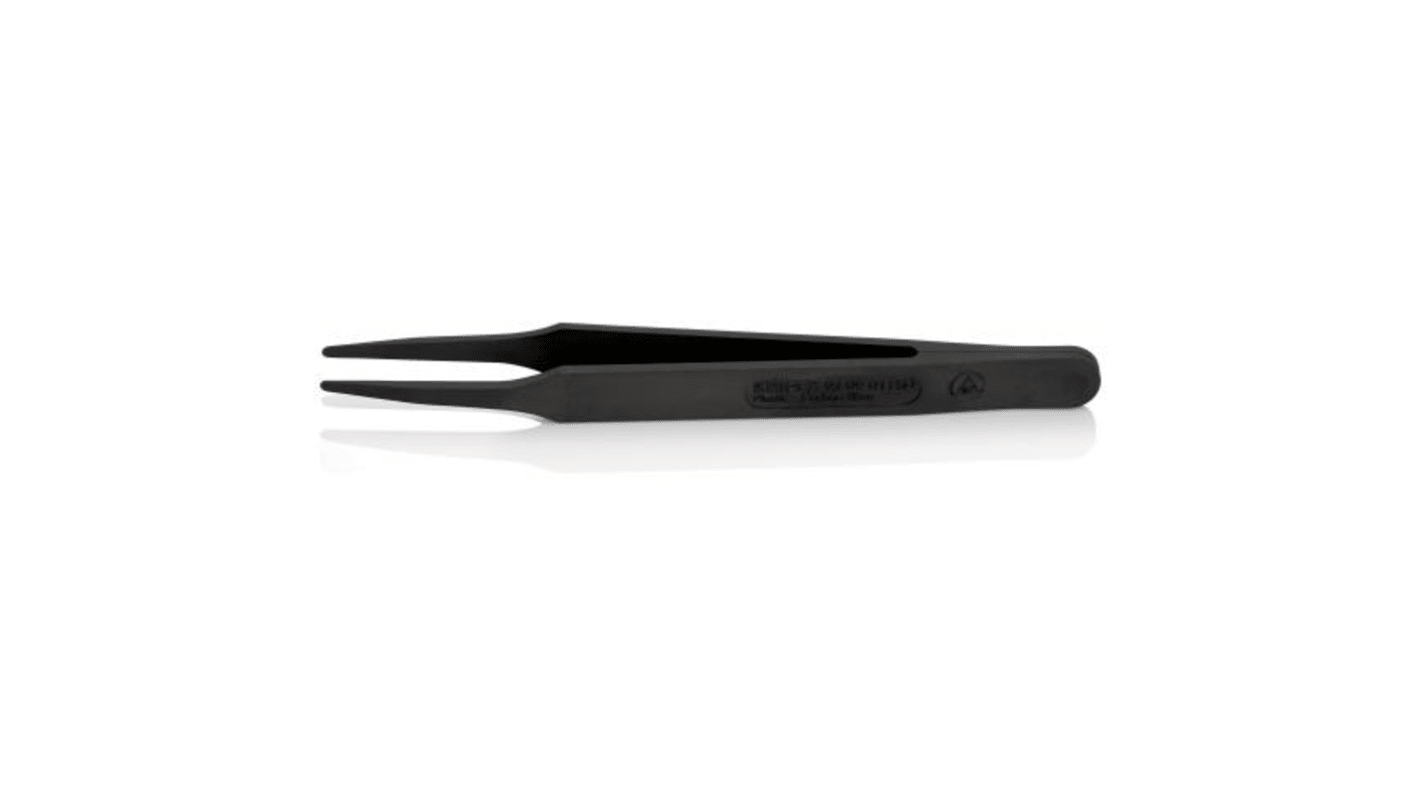

Knipex 115 mm, Plastic, Smooth, ESD Tweezer
- RS Stock No.:
- 247-3287
- Mfr. Part No.:
- 92 09 01 ESD
- Brand:
- Knipex
7 In Global stock for delivery within 10 working day(s)
13 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$15.04
(exc. GST)
$16.54
(inc. GST)
| Units | Per unit |
| 1 + | $15.04 |
- RS Stock No.:
- 247-3287
- Mfr. Part No.:
- 92 09 01 ESD
- Brand:
- Knipex
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CH
Product Details
Knipex Precision Tweezers
The Knipex Precision Tweezers have an overall length of 115mm.
Features and benefits :
ESD tweezers are made of 30% carbon fibre-reinforced plastic, are electrically and thermally highly conductive and feature high abrasion and scratch resistance.
Straight shape
Width of tips (A): 0.35mm
Width of tips (B): 2mm
ESD versions only: with a surface resistance between 10^2 and 10^4 ohms to compensate in a controlled way for potential differences between the operator and the electronic components
ESD plastic tweezers are temperature-stable up to 130 °C, short-term use is possible up to 190 °C
Extremely flexible
Resistant to fatigue, vibration and water
Good chemical resistance to most oils, greases, fuels and non-polar solvents
Straight shape
Width of tips (A): 0.35mm
Width of tips (B): 2mm
ESD versions only: with a surface resistance between 10^2 and 10^4 ohms to compensate in a controlled way for potential differences between the operator and the electronic components
ESD plastic tweezers are temperature-stable up to 130 °C, short-term use is possible up to 190 °C
Extremely flexible
Resistant to fatigue, vibration and water
Good chemical resistance to most oils, greases, fuels and non-polar solvents
Applications :
Handling of sensitive electronic components, micromechanical parts, and glass and ceramic components
Matérial :
30% carbon fibre reinforced plastic
Specifications
Attribute | Value |
|---|---|
| Model Number | 92 09 01 ESD |
| Material | Plastic |
| Overall Length | 115 mm |
| Orientation | Straight |
| Point Type | Smooth |
| Tip Size | Slim; flat |
| Anti-Magnetic | Yes |
| Number of Pieces | 1 |
| ESD Safe | Yes |
| Anti-Acid | Yes |
