Honeywell Technologies ABPDANV015PGAA5 Pressure SensorBoard 6 DIP
- RS Stock No.:
- 214-1398
- Mfr. Part No.:
- ABPDANV015PGAA5
- Brand:
- Honeywell Technologies

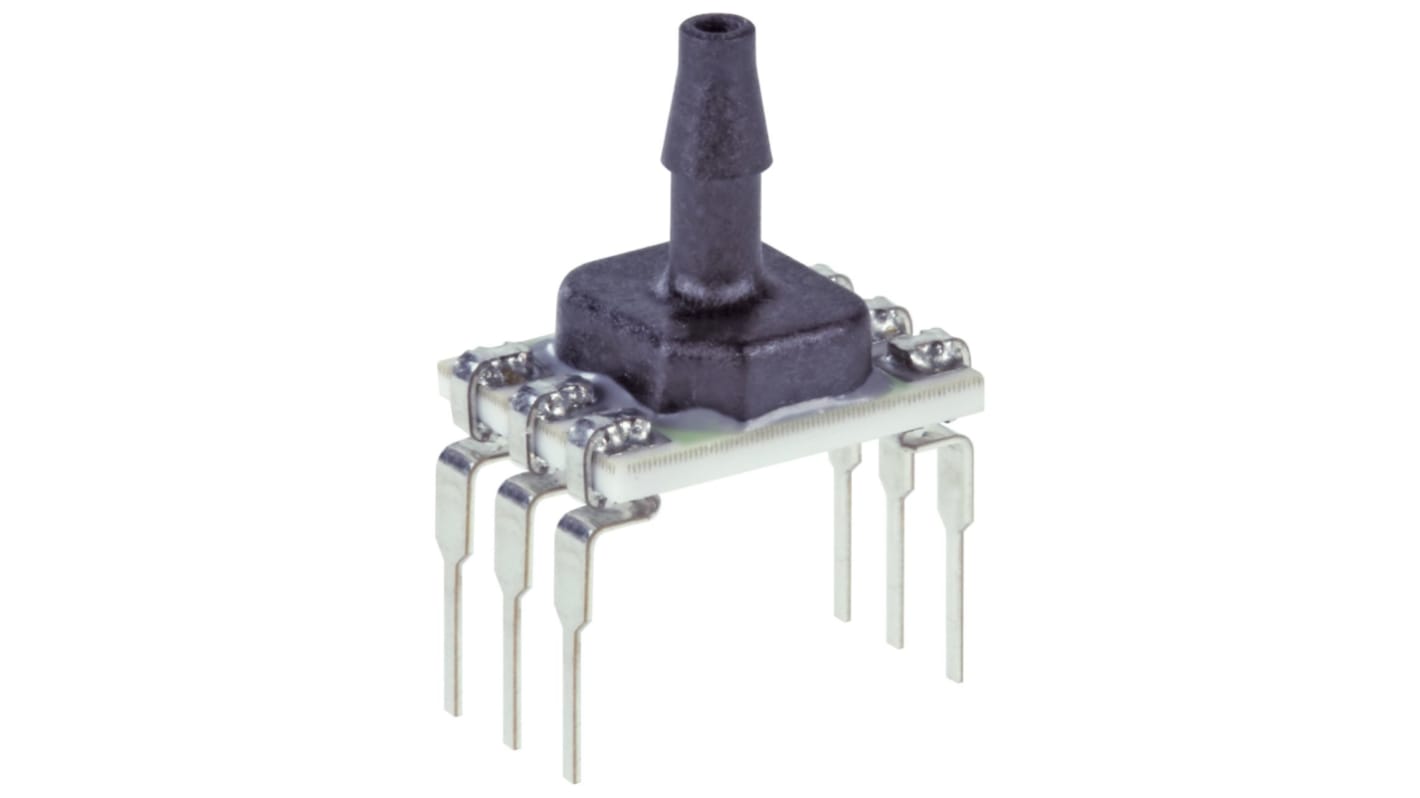

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$51.23
(exc. GST)
$56.35
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- Plus 2 unit(s) shipping from 28 September 2026
- Plus 100 unit(s) shipping from 11 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 12 | $51.23 |
| 13 - 24 | $50.34 |
| 25 + | $49.41 |
*price indicative
- RS Stock No.:
- 214-1398
- Mfr. Part No.:
- ABPDANV015PGAA5
- Brand:
- Honeywell Technologies
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell Technologies | |
| Maximum Overload Pressure | 250psi | |
| Sensor Type | Piezoresistive Pressure Sensor | |
| Product Type | Pressure Sensor | |
| Mount Type | Board | |
| Package Type | DIP | |
| Pin Count | 6 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Operating Pressure | 15 psi | |
| Accuracy | ±0.25 % | |
| Maximum Supply Voltage | 5V | |
| Port Type | Single Axial Barbed | |
| Maximum Operating Temperature | +85°C | |
| Standards/Approvals | BPA Free, LFGB, NSF-169 | |
| Width | 6.3mm | |
| Series | ABP | |
| Height | 3.63mm | |
| Length | 7.3mm | |
| Minimum Operating Pressure | 0psi | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | ISO 9001 | |
| Select all | ||
|---|---|---|
Brand Honeywell Technologies | ||
Maximum Overload Pressure 250psi | ||
Sensor Type Piezoresistive Pressure Sensor | ||
Product Type Pressure Sensor | ||
Mount Type Board | ||
Package Type DIP | ||
Pin Count 6 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Operating Pressure 15 psi | ||
Accuracy ±0.25 % | ||
Maximum Supply Voltage 5V | ||
Port Type Single Axial Barbed | ||
Maximum Operating Temperature +85°C | ||
Standards/Approvals BPA Free, LFGB, NSF-169 | ||
Width 6.3mm | ||
Series ABP | ||
Height 3.63mm | ||
Length 7.3mm | ||
Minimum Operating Pressure 0psi | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard ISO 9001 | ||
Honeywell ABP Series Gauge Pressure Sensor, 15psi Maximum Operating Pressure, ±0.25% Accuracy - ABPDANV015PGAA5
This gauge pressure sensor provides board-mounted measurement of pressure relative to atmospheric pressure, offering ratiometric analogue or digital output for monitoring within specified full‑scale ranges. It is temperature‑compensated and calibrated for offset and sensitivity across its compensated range, and is suitable for use with dry gases or, with an optional coating, non‑corrosive liquids and condensating environments.
Features and Benefits:
• ±0.25%FSS accuracy improves measurement certainty
• 0-15psi option supports low‑pressure system monitoring
• 3.3V/5.0V operation enables low‑voltage designs
• -40 to 85°C operating range tolerates harsh temperatures
• 6‑pin package allows straightforward board mounting
• Liquid‑media option protects electronics for wet use
• 0-15psi option supports low‑pressure system monitoring
• 3.3V/5.0V operation enables low‑voltage designs
• -40 to 85°C operating range tolerates harsh temperatures
• 6‑pin package allows straightforward board mounting
• Liquid‑media option protects electronics for wet use
Applications
• Suitable for CPAP and ventilator pressure sensing
• Ideal for pneumatic control and valve positioning
• Used with blood analysis and patient‑monitoring devices
• Can be used for HVAC and process gas monitoring
• Suitable for coffee makers and household appliances
• Ideal for pneumatic control and valve positioning
• Used with blood analysis and patient‑monitoring devices
• Can be used for HVAC and process gas monitoring
• Suitable for coffee makers and household appliances
What outputs are available for integration with control electronics?
It offers a ratiometric analogue output or a 12‑bit digital output compatible with I2C or SPI interfaces.
How is long‑term measurement drift addressed?
Devices are factory‑calibrated and compensated with an on‑board ASIC and specify long‑term stability of ±0.25% FSS over 1000 hr at 25°C.
What protection exists against pressure excursions?
The sensor tolerates defined overpressure limits and higher burst pressures per pressure‑range tables to prevent immediate failure.
Which materials are used where fluids contact the sensor?
Wetted components include high‑temperature polyamide ports, alumina ceramic substrate, silicone or epoxy adhesives, and selected metals and gold‑plated electronics.
Are there food‑safety or manufacturing standards applicable?
The product is manufactured to ISO 9001 and options are certified to NSF‑169, LFGB and BPA‑Free standards.
