Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±10.8 V dc, ±13.2 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

RS Stock No.:: 166-6593
Mfr. Part No.:: RH-1215D/H6
Brand:: Recom

Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±10.8 V dc, ±13.2 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

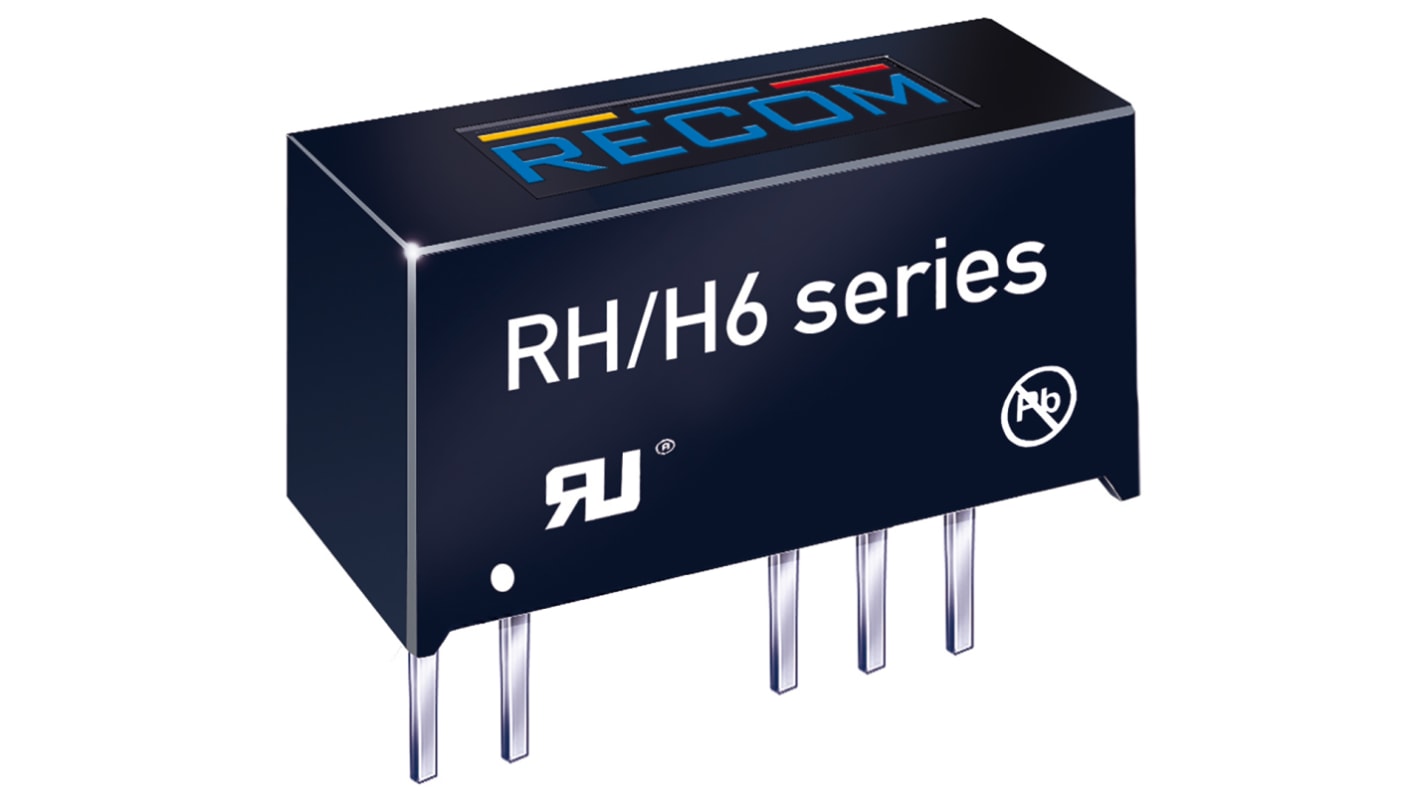

This image is representative of the product range

On back order for despatch 03/09/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) 1 Tube of 25

$402.22

(exc. GST)

$442.44

(inc. GST)

Tube(s)	Per Tube	Per unit*
1 - 1	$402.22	$16.089
2 - 3	$393.37	$15.735
4 +	$384.90	$15.396
*price indicative

RS Stock No.:: 166-6593
Mfr. Part No.:: RH-1215D/H6
Brand:: Recom

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Recom 1W SIP7 Single/Dual Output Unregulated DC-DC Converters - RK/H6 and RH/H6 Series

The RK/H6 and RH/H6 series 1 W DC-DC converters feature high 6.4 kV dc isolation. They also feature an extended
operating temperature range up to +90°C without derating, yet are lower cost than standard high isolation converters.
They are suitable for demanding industrial and high isolation test and measurement applications.

Features & Benefits

High 6.4 kV dc isolation
Wide operating temperature range from -40°C to +90°C without derating
High capacitive load capability
Continuous short circuit protection
Built-in EN50022 Class A filter
Efficiency up to 80%

Approvals

IEC60950-1
UL60950-1

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	±10.8 V dc, ±13.2 V dc
Power Rating	1W
Input Voltage Nominal	±12 V dc
Output Current	±33mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Output Voltage Adjustment Range	±14.25 V dc, ±15.75V dc
Package	SIP 7
Isolation Voltage	4kV dc
Depth	10.2mm
Width	7.05mm
Length	19.65mm
Series	RH
Load Regulation	0.1
Maximum Temperature	+90°C
Efficiency	78 → 80%
Minimum Temperature	-40°C
Standards Met	A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950
