Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±13.5 V dc, ±16.5 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

RS Stock No.:: 166-6592
Mfr. Part No.:: RH-1515D/H6
Brand:: Recom

Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±13.5 V dc, ±16.5 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

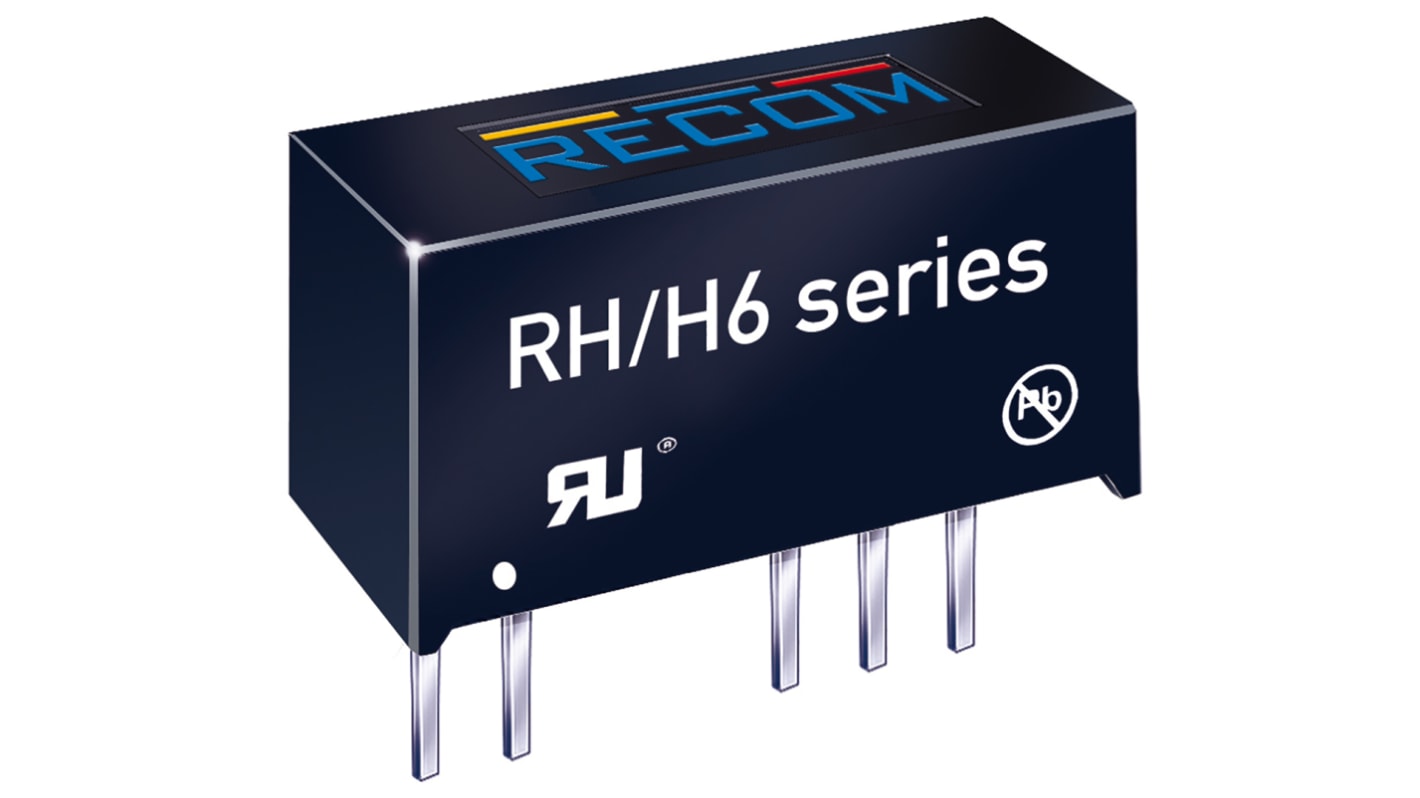

This image is representative of the product range

On back order for despatch 18/12/2024, delivery within 10 working days from despatch date.

Price (ex. GST) 1 Tube of 25

$425.13

(exc. GST)

$467.64

(inc. GST)

Tube(s)	Per Tube	Per unit*
1 +	$425.13	$17.005

*price indicative

RS Stock No.:: 166-6592
Mfr. Part No.:: RH-1515D/H6
Brand:: Recom

Datasheet

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	±13.5 V dc, ±16.5 V dc
Power Rating	1W
Input Voltage Nominal	±15 V dc
Output Current	±33mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Output Voltage Adjustment Range	±14.25 V dc, ±15.75V dc
Package	SIP 7
Isolation Voltage	4kV dc
Width	7.05mm
Depth	10.2mm
Length	19.65mm
Series	RH
Load Regulation	0.1
Minimum Temperature	-40°C
Efficiency	78 → 80%
Maximum Temperature	+90°C
Standards Met	A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950

Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±13.5 V dc, ±16.5 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

Recom 1W SIP7 Single/Dual Output Unregulated DC-DC Converters - RK/H6 and RH/H6 Series

Features & Benefits

Approvals
