Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±21.6 V dc, ±26.4 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

RS Stock No.:: 166-6597
Mfr. Part No.:: RH-2415D/H6
Brand:: Recom

Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±21.6 V dc, ±26.4 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

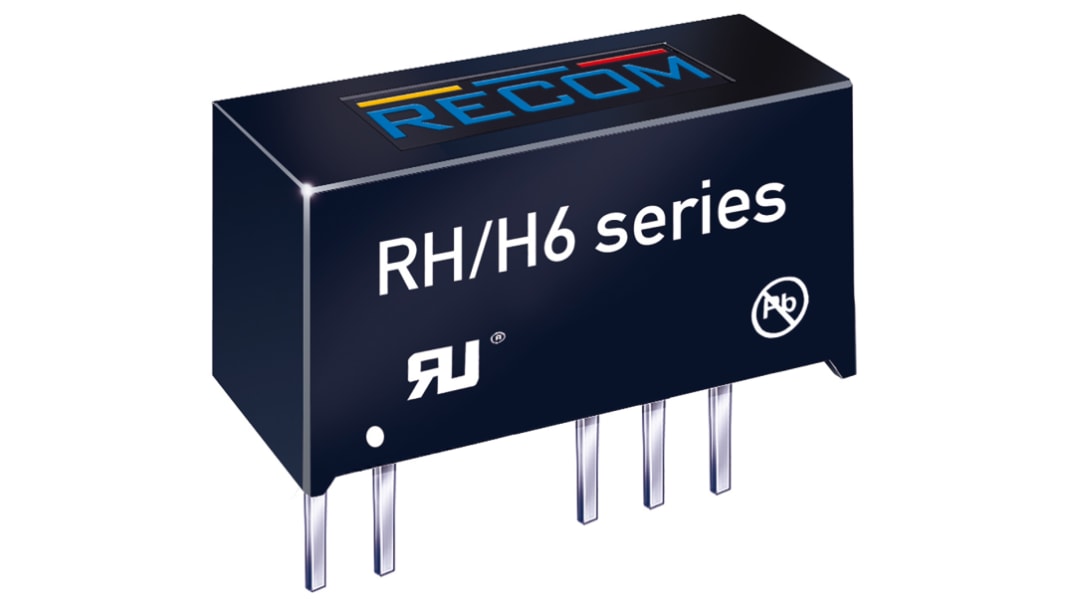

This image is representative of the product range

3 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) 1 Tube of 25

$424.36

(exc. GST)

$466.80

(inc. GST)

Tube(s)	Per Tube	Per unit*
1 - 1	$424.36	$16.974
2 - 3	$415.03	$16.601
4 +	$406.12	$16.245
*price indicative

RS Stock No.:: 166-6597
Mfr. Part No.:: RH-2415D/H6
Brand:: Recom

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

RECOM DC-DC Converter, 6kV DC Isolation Voltage, 20ms Start-Up Time - RH Series - RH-2415D/H6

Need a hand with your isolation testing? Reach out to this DC-DC converter from RECOM. With a high isolation voltage of 6kV DC, it's ideal for breaking your circuit into modules. This makes it easy to root out electrical bugs. Thanks to its quiet operation, you can rest assured the unit helps to keep noise pollution levels down. Continuous short-circuit protection puts the brakes on power faults that could damage your equipment. As this converter is electromagnetically compatible, there's minimal chance of it interfering with nearby electronic devices.

Features & Benefits

• Compact dimensions of 19.65 (L) x 7.05 (W) x 10.2mm (H) help to maximise board packing efficiency
• Flame-retardant casing won't catch alight in the event of a fire
• MTBFean time between failures of over 14.9 million hours for reliability throughout its extended service life
• Start-up time of 20ms means it reacts almost instantly to voltage changes

Applications

• Laboratories and testing facilities
• Automotive manufacturing
• Data and telecommunication centres
• Aerospace technology

What's the operating temperature range of this DC-DC converter?

The device offers a reliable and stable power supply in a board operating temperature range between -40°C and +90°C, so it's a versatile option.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	±21.6 V dc, ±26.4 V dc
Power Rating	1W
Input Voltage Nominal	±24 V dc
Output Current	±33mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Output Voltage Adjustment Range	±14.25 V dc, ±15.75V dc
Package	SIP 7
Isolation Voltage	4kV dc
Depth	10.2mm
Width	7.05mm
Length	19.65mm
Series	RH
Load Regulation	0.1
Standards Met	A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950
Maximum Temperature	+90°C
Efficiency	78 → 80%
Minimum Temperature	-40°C
