Recom RH DC-DC Converter, ±12V dc/ ±42mA Output, ±10.8 V dc, ±13.2 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C
- RS Stock No.:
- 166-6590
- Mfr. Part No.:
- RH-1212D/H6
- Brand:
- Recom
On back order for despatch 03/09/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) 1 Tube of 25
$402.47
(exc. GST)
$442.72
(inc. GST)
Tube(s) | Per Tube | Per unit* |
1 - 1 | $402.47 | $16.099 |
2 - 3 | $393.61 | $15.744 |
4 + | $385.15 | $15.406 |
*price indicative |
- RS Stock No.:
- 166-6590
- Mfr. Part No.:
- RH-1212D/H6
- Brand:
- Recom
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

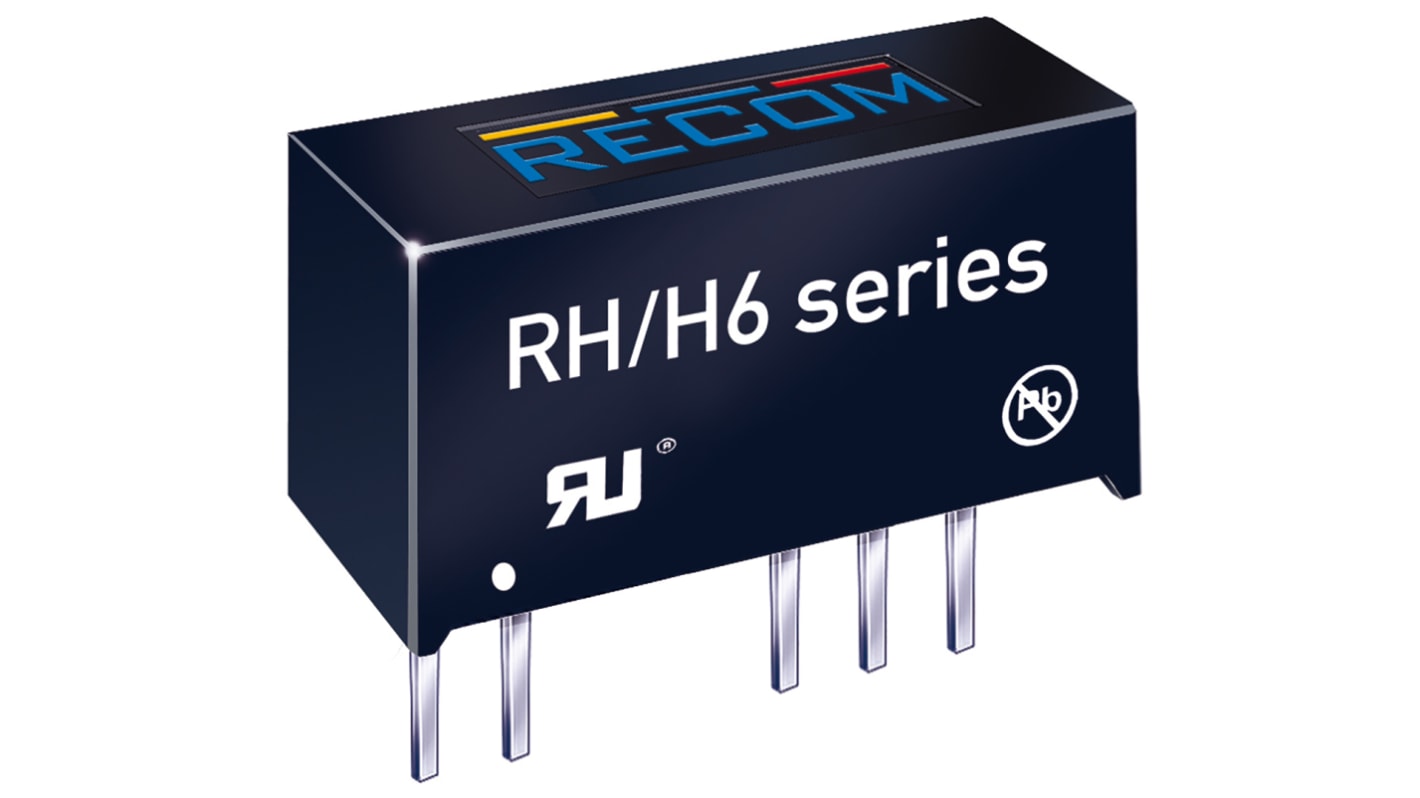

Recom 1W SIP7 Single/Dual Output Unregulated DC-DC Converters - RK/H6 and RH/H6 Series
The RK/H6 and RH/H6 series 1 W DC-DC converters feature high 6.4 kV dc isolation. They also feature an extended
operating temperature range up to +90°C without derating, yet are lower cost than standard high isolation converters.
They are suitable for demanding industrial and high isolation test and measurement applications.
operating temperature range up to +90°C without derating, yet are lower cost than standard high isolation converters.
They are suitable for demanding industrial and high isolation test and measurement applications.
Features & Benefits
High 6.4 kV dc isolation
Wide operating temperature range from -40°C to +90°C without derating
High capacitive load capability
Continuous short circuit protection
Built-in EN50022 Class A filter
Efficiency up to 80%
Wide operating temperature range from -40°C to +90°C without derating
High capacitive load capability
Continuous short circuit protection
Built-in EN50022 Class A filter
Efficiency up to 80%
Approvals
IEC60950-1
UL60950-1
UL60950-1
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Output Voltage | ±12V dc |
Input Voltage Range | ±10.8 V dc, ±13.2 V dc |
Power Rating | 1W |
Input Voltage Nominal | ±12 V dc |
Output Current | ±42mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Output Voltage Adjustment Range | ±11.4 V dc, ±12.6V dc |
Package | SIP 7 |
Isolation Voltage | 4kV dc |
Length | 19.65mm |
Depth | 10.2mm |
Width | 7.05mm |
Series | RH |
Load Regulation | 0.1 |
Maximum Temperature | +90°C |
Minimum Temperature | -40°C |
Efficiency | 77 → 80% |
Standards Met | A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950 |
