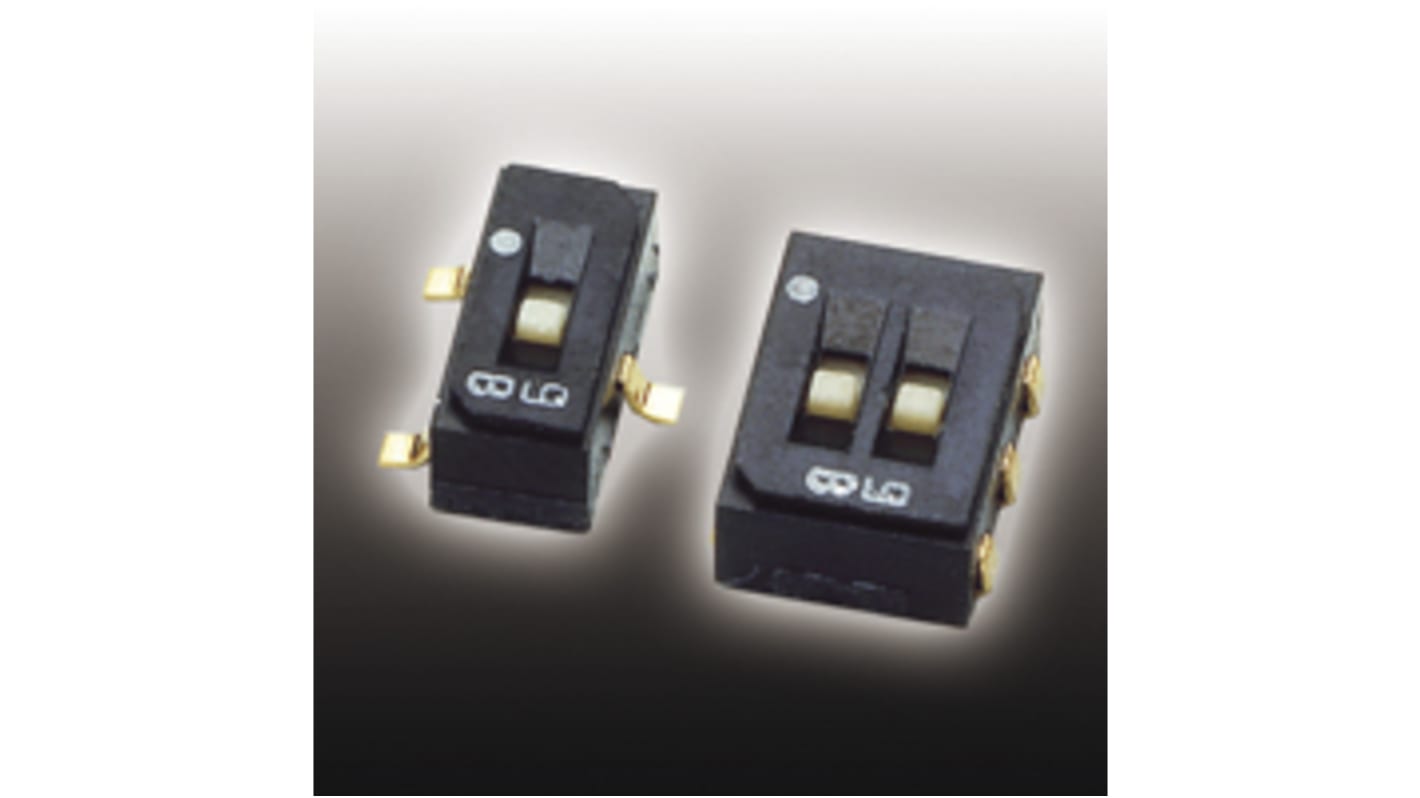

Nidec Components Surface Mount Slide Switch SPDT 100 (Non-Switching) mA, 100 (Switching) mA Slide
- RS Stock No.:
- 179-6404
- Mfr. Part No.:
- CAS-120B1
- Brand:
- Nidec Components
Bulk discount available
Subtotal (1 bag of 100 units)**
$160.90
(exc. GST)
$177.00
(inc. GST)
100 In Global stock for delivery within 5 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit | Per Bag** |
|---|---|---|
| 100 - 100 | $1.609 | $160.90 |
| 200 - 300 | $1.573 | $157.30 |
| 400 + | $1.54 | $154.00 |
**price indicative
- RS Stock No.:
- 179-6404
- Mfr. Part No.:
- CAS-120B1
- Brand:
- Nidec Components
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Contact Configuration | SPDT | |
| Mounting Type | Surface Mount | |
| Contact Current Rating | 100 (Non-Switching) mA, 100 (Switching) mA | |
| Terminal Type | Gull Wing | |
| Actuator Type | Slide | |
| Length | 5.4mm | |
| Width | 2.5mm | |
| Depth | 2.4mm | |
| Dimensions | 5.4 x 2.5 x 2.4mm | |
| Contact Resistance | 50mΩ | |
| Voltage Rating | 50V dc | |
| Minimum Operating Temperature | -40°C | |
| Actuator Material | Polyamide | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -40 → +85°C | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand Nidec Components | ||
Contact Configuration SPDT | ||
Mounting Type Surface Mount | ||
Contact Current Rating 100 (Non-Switching) mA, 100 (Switching) mA | ||
Terminal Type Gull Wing | ||
Actuator Type Slide | ||
Length 5.4mm | ||
Width 2.5mm | ||
Depth 2.4mm | ||
Dimensions 5.4 x 2.5 x 2.4mm | ||
Contact Resistance 50mΩ | ||
Voltage Rating 50V dc | ||
Minimum Operating Temperature -40°C | ||
Actuator Material Polyamide | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -40 → +85°C | ||
Contact Material Copper Alloy | ||
