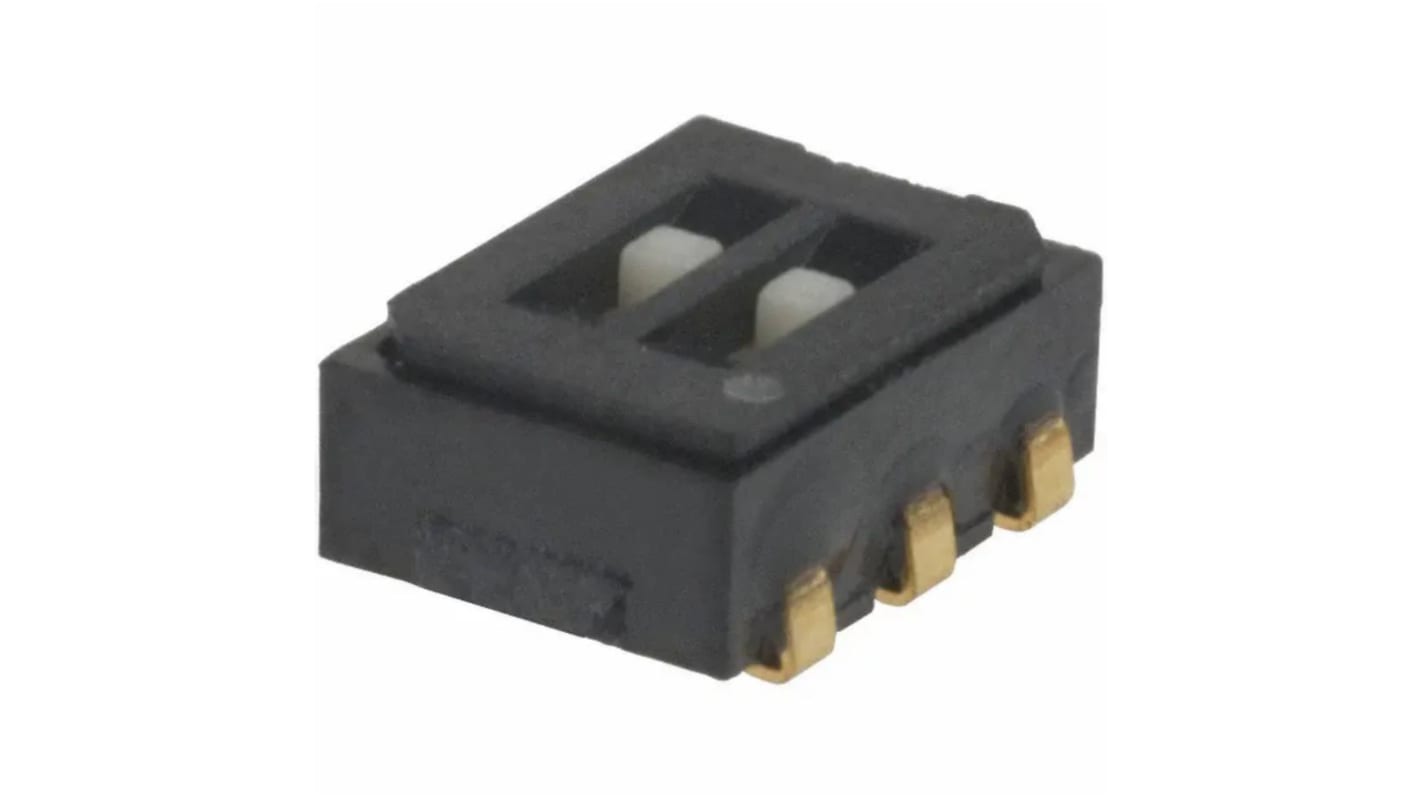

Copal Electronics CAS-D20A is a SPDT 2-position slide switch having DC current rating of 100mA. The contact material is Copper whereas the contact finish is Gold. Its polyamide (PA),nylon actuator is of flush length. It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CAS-D20A SPDT slide switch adopted twin-contact mechanism. These switches are ROHS compliant. CAS-D20A SPDT slide switches consists of 100 pieces per pack which weighs 0.082 grams.

On-On switch function with 2,000 electrical life cycles with an operating force of 51 ∼ 510gf
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
Switch Travel Time is 060mm

Units	Per unit	Per Pack**
5 - 20	$4.028	$20.14
25 - 45	$3.93	$19.65
50 +	$3.868	$19.34

Select all	Attribute	Value
	Brand	Nidec Components
	Contact Configuration	Dual SPDT
	Mounting Type	Surface Mount
	Contact Current Rating	100mA
	Terminal Type	J-Hook
	Actuator Type	Slide
	Length	5.4mm
	Width	2.5mm
	Depth	2.5mm
	Dimensions	5.4 x 2.5 x 2.5mm
	Contact Resistance	50mΩ
	Mechanical Life	2000Operations
	Voltage Rating	6V
	Actuator Material	Polyamide
	Maximum Operating Temperature	+85°C
	Contact Material	Copper Alloy, Gold Plated
	Operating Temperature Range	-40 → +85°C
	Minimum Operating Temperature	-40°C

	Select all
	Brand Nidec Components
	Contact Configuration Dual SPDT
	Mounting Type Surface Mount
	Contact Current Rating 100mA
	Terminal Type J-Hook
	Actuator Type Slide
	Length 5.4mm
	Width 2.5mm
	Depth 2.5mm
	Dimensions 5.4 x 2.5 x 2.5mm
	Contact Resistance 50mΩ
	Mechanical Life 2000Operations
	Voltage Rating 6V
	Actuator Material Polyamide
	Maximum Operating Temperature +85°C
	Contact Material Copper Alloy, Gold Plated
	Operating Temperature Range -40 → +85°C
	Minimum Operating Temperature -40°C

Nidec Components Surface Mount Slide Switch Dual SPDT 100mA Slide
