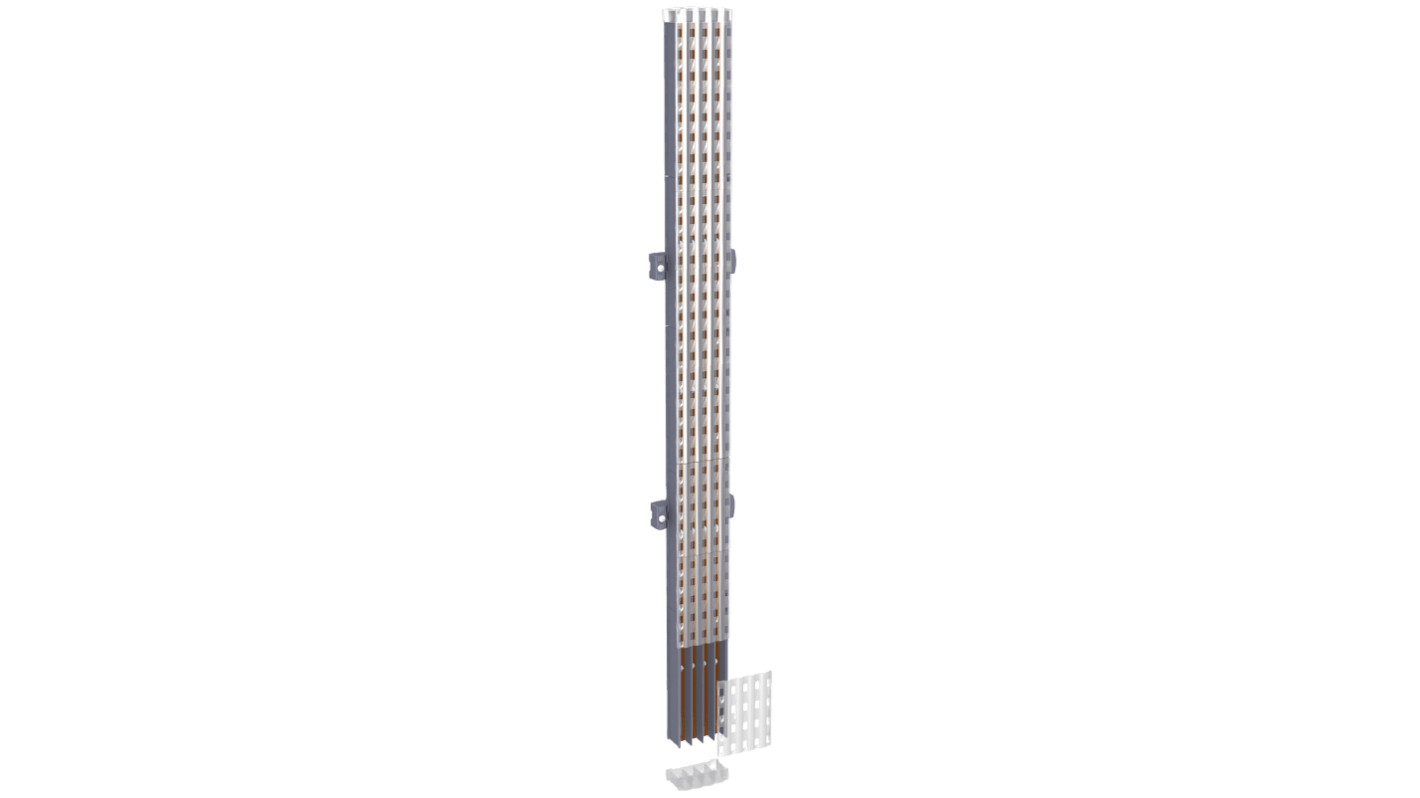

Schneider Electric Linergy Linergy Busbar, 25 mm Pitch
- RS Stock No.:
- 130-815
- Mfr. Part No.:
- LVS04121
- Brand:
- Schneider Electric
Subtotal (1 unit)*
$743.92
(exc. GST)
$818.31
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 2 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $743.92 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 130-815
- Mfr. Part No.:
- LVS04121
- Brand:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Busbar | |
| Range | Linergy | |
| Number of Poles | 4 | |
| For Use With | PrismaSeT PrismaSeT G enclosurePrismaSeT PrismaSeT P enclosure | |
| Standards/Approvals | IEC 61439-1, ASTA, IEC 61439-2 | |
| Current Rating | 160A | |
| Series | Linergy | |
| Better World Product | Yes | |
| Pitch | 25mm | |
| Better World Verification | Byggvarubedömningen | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Busbar | ||
Range Linergy | ||
Number of Poles 4 | ||
For Use With PrismaSeT PrismaSeT G enclosurePrismaSeT PrismaSeT P enclosure | ||
Standards/Approvals IEC 61439-1, ASTA, IEC 61439-2 | ||
Current Rating 160A | ||
Series Linergy | ||
Better World Product Yes | ||
Pitch 25mm | ||
Better World Verification Byggvarubedömningen | ||
- COO (Country of Origin):
- FR
The Schneider Electric LINERGY BW 4P INSULATED B.BAR is a reliable and durable busbar designed for various applications. With an IP degree of protection of IPxx B and mechanical robustness with Seismic tests structure reinforcement, this product ensures high performance and safety standards. It is a sustainable Green Premium product meeting Reach Regulation and EU RoHS Directive.
Insulated bar with 4P poles description
Easy installation
M6 threaded hole busbar connection with connection pitch of 25 mm
