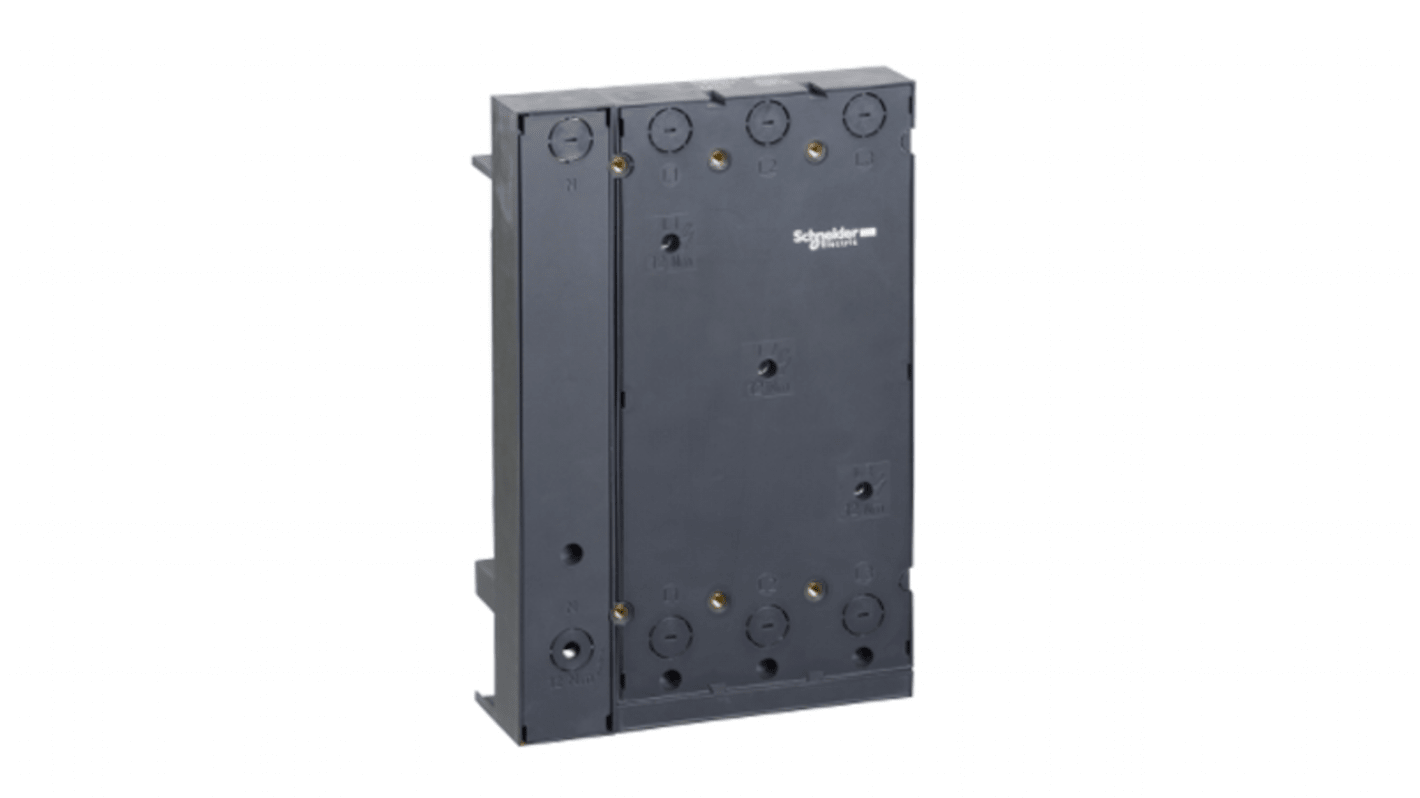

Schneider Electric Linergy Linergy Busbar Adapter, 690 V, 60 mm Pitch

View all Busbars

Subtotal (1 unit)*

$855.00

(exc. GST)

$940.50

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +$855.00

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
219-9105
Mfr. Part No.:
LV432624
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Busbar Adapter

Rated Operational Voltage

690 V

Range

Linergy

Number of Poles

4

For Use With

NSX400 to NSX630

Standards/Approvals

IEC/UL

Pitch

60mm

Better World Product

Yes

Current Rating

250 A

Series

Linergy

Colour

Anthracite

COO (Country of Origin):
DE
The Schneider Electrics product The NSX mounting plate system for busbar simplifies the installation of 4 poles NSX 400-630 circuit breaker. Power distribution is performed by a busbar. The mounting plate is fitted directly on the busbar, by Snap-On-mounting. thus implementing mechanical and electrical connection. The busbar interaxis is 60 mm. Depending on the cross section of the bars, the busbar associated to terminals can withstand a maximum current of 630A. This system offers numerous benefits as space saving in cabinets and easy connection. This system also offer fast, safe and reliable electrical and mechanical connection. This system also offer IP20 protection by using bus bars and end covers. This system also offer easier maintenance and equipment flexibility and modularity.

RoHS compliant
