- RS Stock No.:
- 244-1704
- Mfr. Part No.:
- NTCS0805E3502JLT
- Brand:
- Vishay
On back order for despatch 20/08/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 4000)
$0.312
(exc. GST)
$0.343
(inc. GST)
Units | Per unit | Per Reel* |
4000 - 16000 | $0.312 | $1,248.00 |
20000 + | $0.281 | $1,124.00 |
*price indicative |
- RS Stock No.:
- 244-1704
- Mfr. Part No.:
- NTCS0805E3502JLT
- Brand:
- Vishay
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IL
Product Details

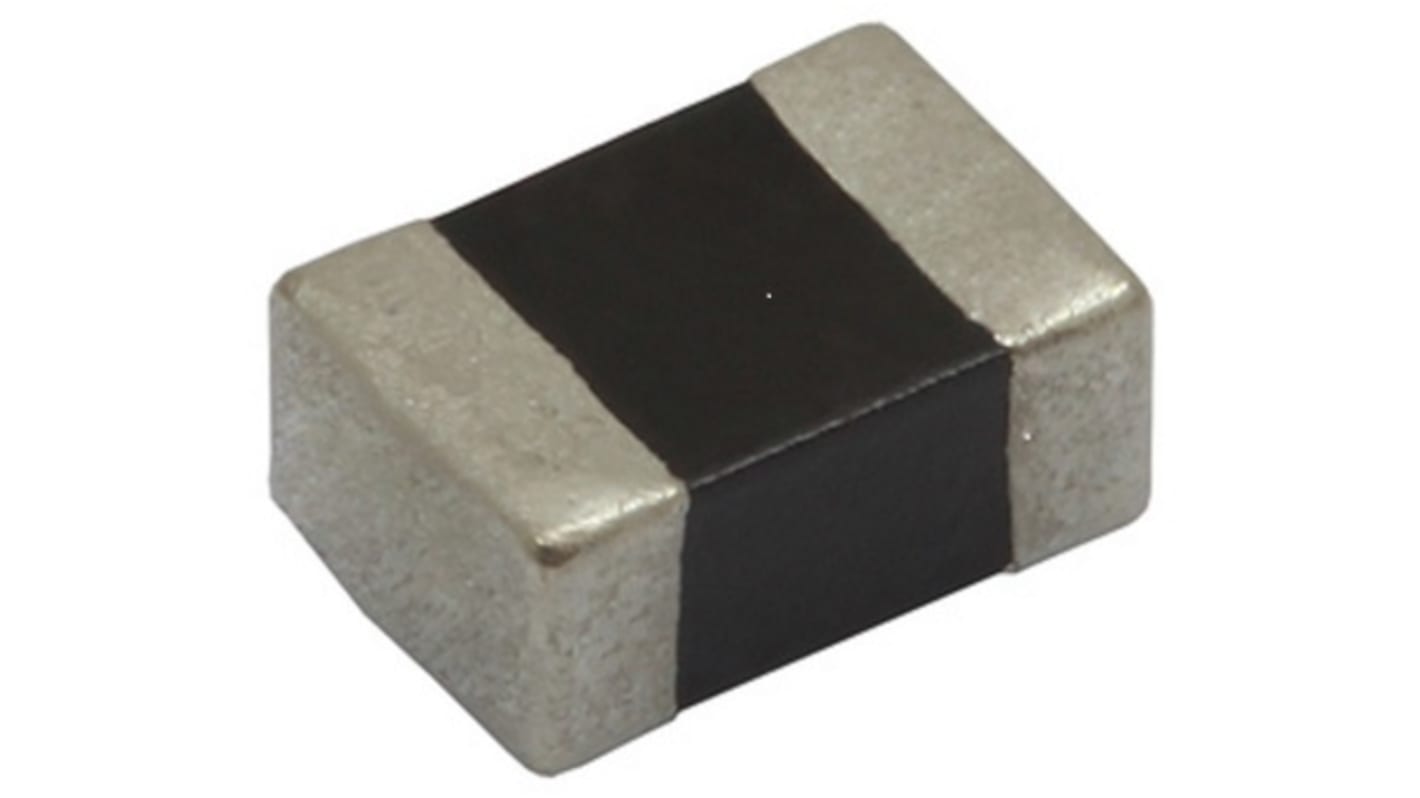

The Vishay NTCS0805E3102JLT thermistrors used in Temperature sensing, protection and compensation in automotive, industrial, telecom and consumer applications. Examples are Battery chargers, Power supplies, Office equipment, LCD compensation, In-car entertainment. Its has Size 0805 (M2012) glass protected SMD chip thermistor with negative temperature coefficient (TCR) and matte tin (Sn) plated terminations. The device has no marking. Available in 8 mm punched paper tape on reel package of 4000 units.
TCR ranging from -6 %/K at -40 °C to -2 %/K at 150 °C
Tolerance on R25 down to 1 %, and on B25/85 down to 1 %
Suitable for wave or reflow soldering
NiSn terminations
Fully glass coated and protected
cULus recognized, file E148885 (UL category XGPU2 / XGPU8)
AEC-Q200 qualified
Tolerance on R25 down to 1 %, and on B25/85 down to 1 %
Suitable for wave or reflow soldering
NiSn terminations
Fully glass coated and protected
cULus recognized, file E148885 (UL category XGPU2 / XGPU8)
AEC-Q200 qualified
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Series | SMD 0603 |
Temperature Coefficient Type | NTC |
Thermal Coefficient | -277.05%/°C |
Thermal Time Constant | 10s |
