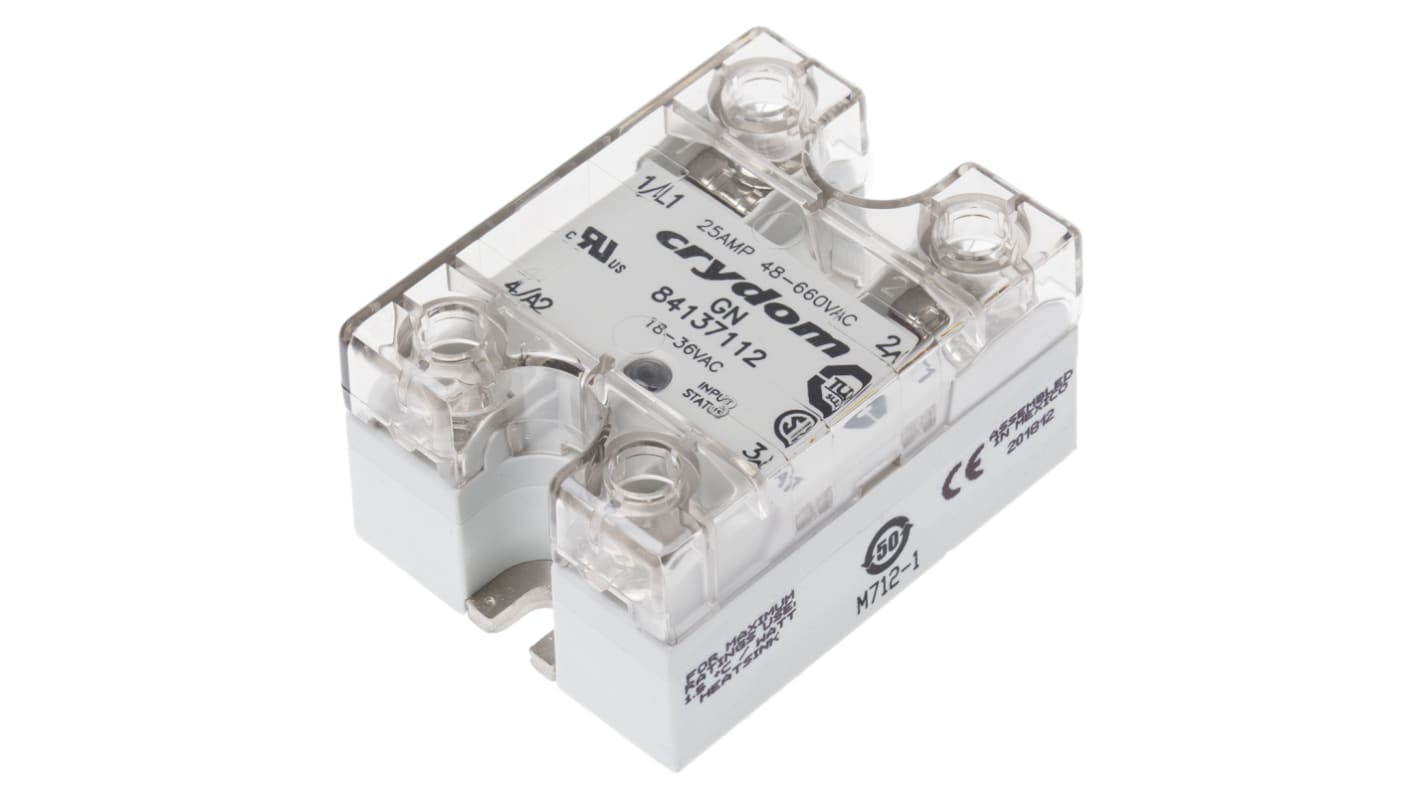

Sensata Crydom GN Series Solid State Relay, 10 A rms Load, Panel Mount, 660 V ac Load, 36 V ac Control

RS Stock No.:: 170-7329
Mfr. Part No.:: 84137112
Brand:: Sensata / Crydom

Sensata Crydom GN Series Solid State Relay, 10 A rms Load, Panel Mount, 660 V ac Load, 36 V ac Control

15 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$152.35

(exc. GST)

$167.59

(inc. GST)

Units	Per unit
1 +	$152.35

RS Stock No.:: 170-7329
Mfr. Part No.:: 84137112
Brand:: Sensata / Crydom

Datasheet
Declaration of Conformity 2014/35/EU
CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Attribute	Value
Maximum Load Current	10 A rms
Mounting Type	Panel Mount
Maximum Load Voltage	660 V ac
Minimum Load Voltage	48 V ac
Maximum Control Voltage	36 V ac
Minimum Control Voltage	18 V ac
Switching Type	Zero Voltage Turn-On
Control Voltage Range	18 → 36 V ac
Minimum Load Current	500mA rms
Terminal Type	Screw
Output Device	Triac
Relay Type	Solid State Relay
Load Voltage Range	48 → 660V ac
Series	GN
Maximum Turn On Time	20ms
Dimensions	44.5 x 30.9 x 57.3mm
Maximum Operating Temperature	+80°C
Off State Leakage Current	0.25mArms
Length	44.5mm
Operating Temperature Range	-40 → +80°C
Capacitance	8pF
Minimum Operating Temperature	-40°C
Depth	30.9mm
Special Features	LED Input Status Indicator
Height	57.3mm

Sensata Crydom GN Series Solid State Relay, 10 A rms Load, Panel Mount, 660 V ac Load, 36 V ac Control
