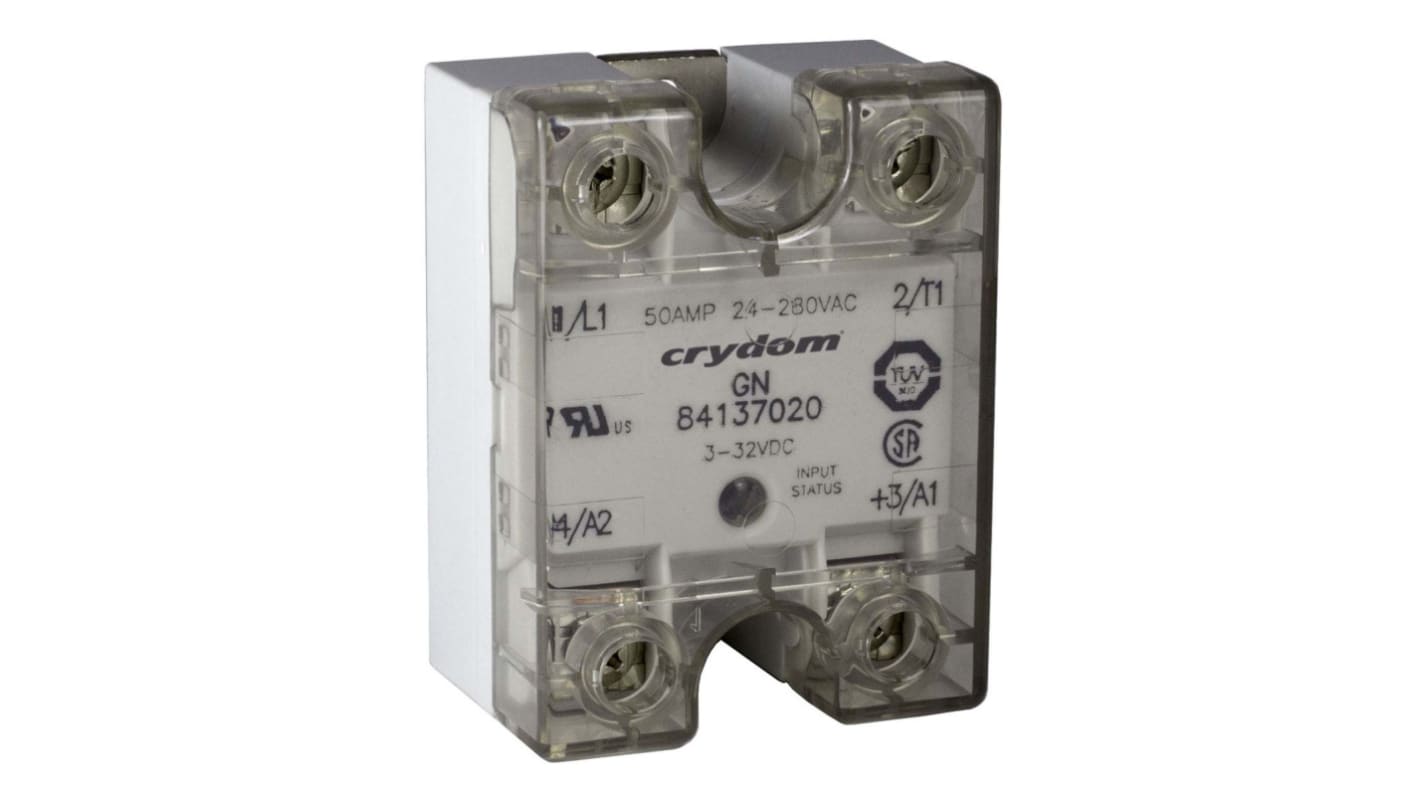

Sensata Crydom GN Series Solid State Relay, 75 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
- RS Stock No.:
- 145-0542
- Distrelec Article No.:
- 137-44-885
- Mfr. Part No.:
- 84137130
- Brand:
- Sensata / Crydom
Subtotal (1 unit)**
$224.50
(exc. GST)
$246.95
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit |
|---|---|
| 1 + | $224.50 |
**price indicative
- RS Stock No.:
- 145-0542
- Distrelec Article No.:
- 137-44-885
- Mfr. Part No.:
- 84137130
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 75 A rms | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 660 V ac | |
| Minimum Load Voltage | 48 V ac | |
| Minimum Control Voltage | 3 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | Zero Crossing | |
| Control Voltage Range | 3 → 32 V dc | |
| Range | Easy Pick | |
| Minimum Load Current | 100mA rms | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Output Device | SSR | |
| Relay Type | Solid State Relay | |
| Series | GN | |
| Load Voltage Range | 48 → 660V ac | |
| Maximum Turn On Time | 1/2 cycle + 1 ms | |
| Dimensions | 44.5 x 57.3 x 30.9mm | |
| Depth | 57.3mm | |
| Maximum Operating Temperature | +80°C | |
| Capacitance | 8pF | |
| Minimum Operating Temperature | -40°C | |
| Special Features | Improved SEMS Screw & Washer, IP20, LED Input Status Indicator, Redesigned Housing with Anti-Rotation Barriers | |
| Standards Met | CE, CSA LR 38595, cULus Recognised E79183, EMC Compliant, EN 60950-1, EN 62314:2006, IEC, IEC 61000-4-2, IEC 61000-4-4, TUV, UL | |
| Operating Temperature Range | -40 → +80°C | |
| Length | 44.5mm | |
| Off State Leakage Current | 0.25mArms | |
| Height | 30.9mm | |
Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 75 A rms | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 660 V ac | ||
Minimum Load Voltage 48 V ac | ||
Minimum Control Voltage 3 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Crossing | ||
Control Voltage Range 3 → 32 V dc | ||
Range Easy Pick | ||
Minimum Load Current 100mA rms | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Output Device SSR | ||
Relay Type Solid State Relay | ||
Series GN | ||
Load Voltage Range 48 → 660V ac | ||
Maximum Turn On Time 1/2 cycle + 1 ms | ||
Dimensions 44.5 x 57.3 x 30.9mm | ||
Depth 57.3mm | ||
Maximum Operating Temperature +80°C | ||
Capacitance 8pF | ||
Minimum Operating Temperature -40°C | ||
Special Features Improved SEMS Screw & Washer, IP20, LED Input Status Indicator, Redesigned Housing with Anti-Rotation Barriers | ||
Standards Met CE, CSA LR 38595, cULus Recognised E79183, EMC Compliant, EN 60950-1, EN 62314:2006, IEC, IEC 61000-4-2, IEC 61000-4-4, TUV, UL | ||
Operating Temperature Range -40 → +80°C | ||
Length 44.5mm | ||
Off State Leakage Current 0.25mArms | ||
Height 30.9mm | ||
