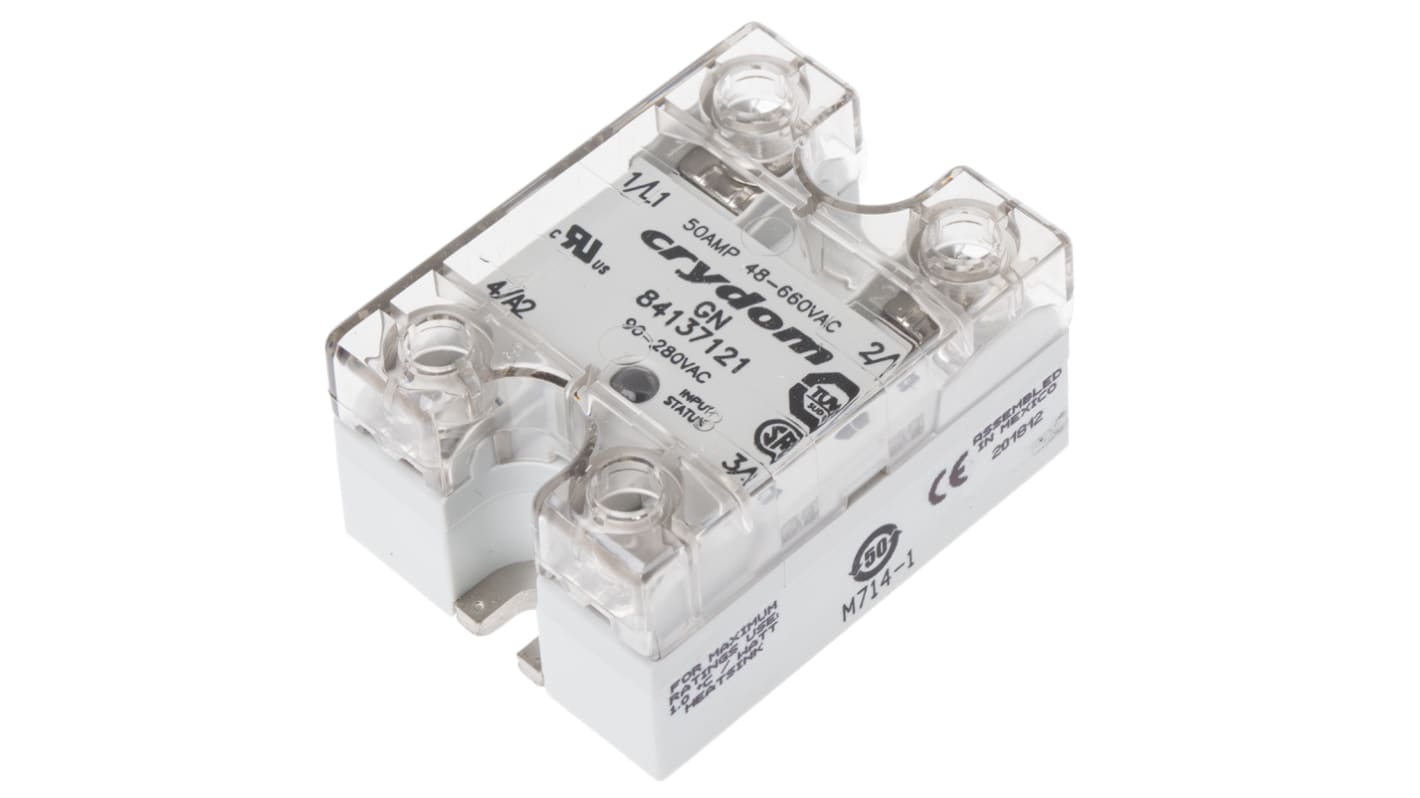

    Sensata Crydom GN Series Solid State Relay, 50 A rms Load, Panel Mount, 660 V ac Load, 280 V ac Control

    View this category

    Subtotal (1 unit)**

    $167.40

    (exc. GST)

    $184.14

    (inc. GST)

    Add to Basket
    Select or type quantity
    6 In Global stock for delivery within 10 working day(s)*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per unit
    1 +$167.40

    **price indicative

    RS Stock No.:
    170-7330
    Mfr. Part No.:
    84137121
    Brand:
    Sensata / Crydom
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Sensata / Crydom

    Maximum Load Current

    50 A rms

    Mounting Type

    Panel Mount

    Maximum Load Voltage

    660 V ac

    Minimum Load Voltage

    48 V ac

    Maximum Control Voltage

    280 V ac

    Minimum Control Voltage

    90 V ac

    Switching Type

    Zero Voltage Turn-On

    Control Voltage Range

    90 → 280 V ac

    Minimum Load Current

    100mA rms

    Terminal Type

    Screw

    Output Device

    Triac

    Relay Type

    Solid State Relay

    Maximum Turn On Time

    20ms

    Load Voltage Range

    48 → 660V ac

    Series

    GN

    Dimensions

    44.5 x 30.9 x 57.3mm

    Operating Temperature Range

    -40 → +80°C

    Depth

    30.9mm

    Length

    44.5mm

    Off State Leakage Current

    0.25mArms

    Maximum Operating Temperature

    +80°C

    Capacitance

    8pF

    Height

    57.3mm

    Special Features

    LED Input Status Indicator

    Minimum Operating Temperature

    -40°C
