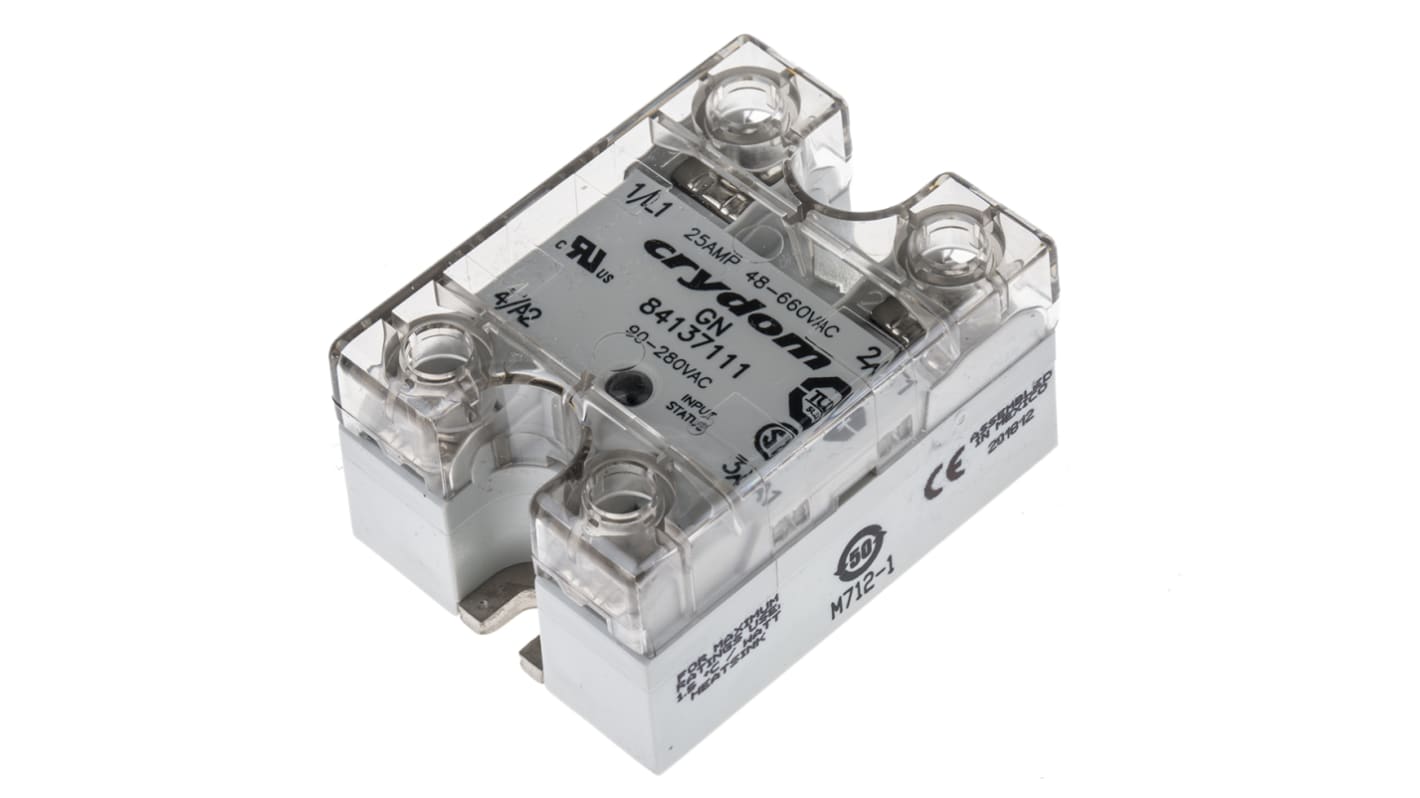

Sensata Crydom GN Series Solid State Relay, 10 A rms Load, Panel Mount, 660 V ac Load, 280 V ac Control

RS Stock No.:: 170-7328
Mfr. Part No.:: 84137111
Brand:: Sensata / Crydom

Sensata Crydom GN Series Solid State Relay, 10 A rms Load, Panel Mount, 660 V ac Load, 280 V ac Control

On back order for despatch 21/12/2024, delivery within 10 working days from despatch date.

Price (ex. GST) Each

$151.80

(exc. GST)

$166.98

(inc. GST)

Units	Per unit
1 +	$151.80

RS Stock No.:: 170-7328
Mfr. Part No.:: 84137111
Brand:: Sensata / Crydom

Datasheet
Declaration of Conformity 2014/35/EU
CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Attribute	Value
Maximum Load Current	10 A rms
Mounting Type	Panel Mount
Maximum Load Voltage	660 V ac
Minimum Load Voltage	48 V ac
Minimum Control Voltage	90 V ac
Maximum Control Voltage	280 V ac
Switching Type	Zero Voltage Turn-On
Control Voltage Range	90 → 280 V ac
Minimum Load Current	500mA rms
Terminal Type	Screw
Output Device	Triac
Relay Type	Solid State Relay
Series	GN
Load Voltage Range	48 → 660V ac
Maximum Turn On Time	20ms
Dimensions	44.5 x 30.9 x 57.3mm
Length	44.5mm
Off State Leakage Current	0.25mArms
Maximum Operating Temperature	+80°C
Operating Temperature Range	-40 → +80°C
Capacitance	8pF
Height	57.3mm
Special Features	LED Input Status Indicator
Depth	30.9mm
Minimum Operating Temperature	-40°C

Sensata Crydom GN Series Solid State Relay, 10 A rms Load, Panel Mount, 660 V ac Load, 280 V ac Control
