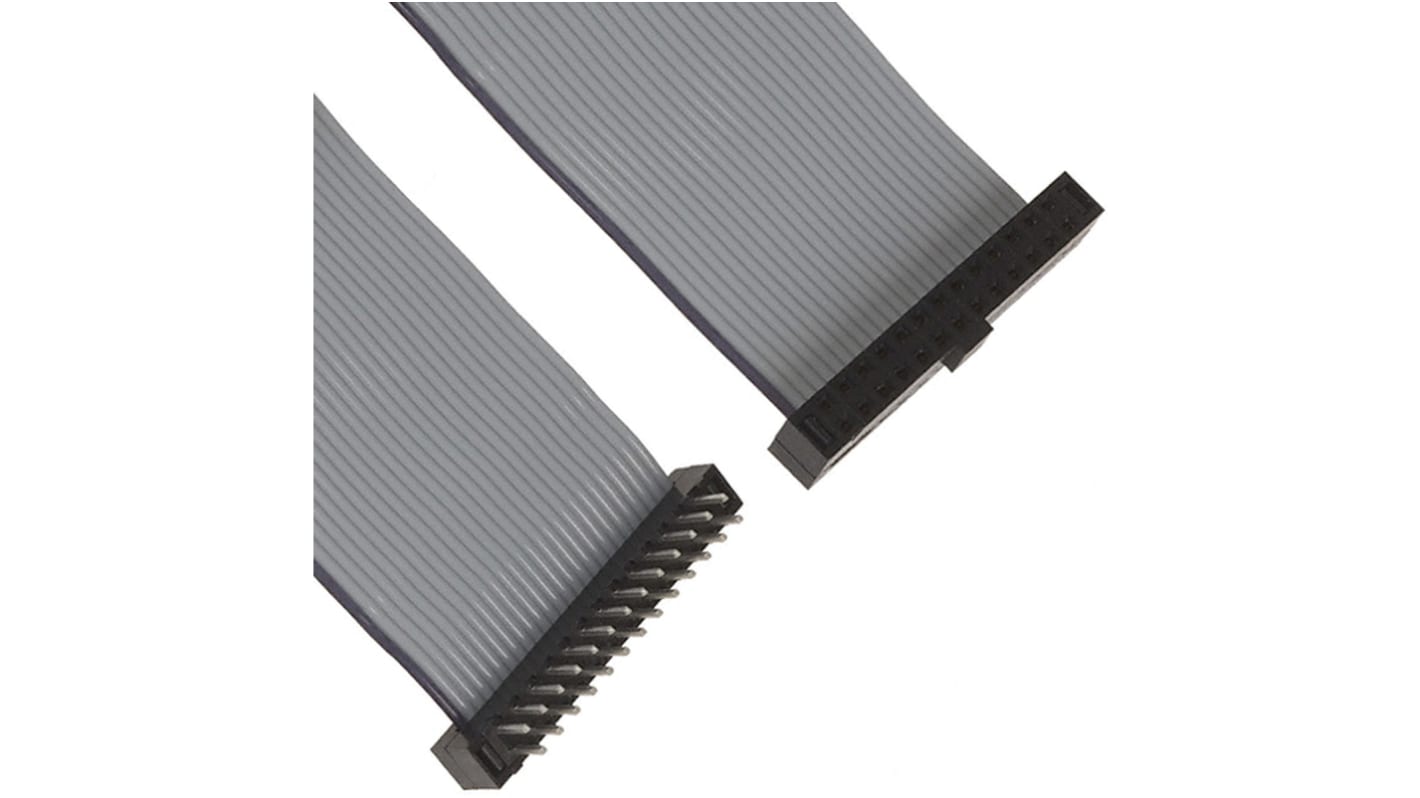

Samtec TCMD Series Flat Ribbon Cable, 2x15-Way, 2mm Pitch, 203.2mm Length, Tiger Eye IDC to Tiger Eye IDC

Double ended fem/fem or male/fem cable assemblies in 100mm or 200mm length
Low profile, only 5mm (.200") height
Wire is 2 mm pitch, 28 awg, 7/36 stranded, copper with PVC insulation
4-finger contacts optimize normal insertion & withdrawal forces
TCSDs have Beryllium Copper 0.76μm Gold plated contacts
TCMDs have Phosphor Bronze Tin plated contacts
Current rating: 1A
Contact resistance: 10mΩ max
Operating temperature range: -40 to 105°C

TCSD-XX-D-YY.YY-01-N:
TCSD= Socket connector, -XX= Number of pins per row, -YY.YY= Length in Inches, -D= Double ended assembly, -N= Notched polarization
TCMD-XX-T-YY.YY-01-N:
TCMD= Pin connector, -XX= Number of pins per row, -YY.YY= Length in Inches, T= Transfer end assembly (Male to Female), -N= Notched polarization

This terminated ribbon cable features Tiger Eye IDC connectors in a 2x15 pin layout, designed for efficient interconnections. It measures 203.2mm in length and operates within a temperature range of -40 to 105°C.

• Complies with RoHS standards for environmental safety
• 28 AWG stranded conductors for flexibility
• Maximum current rating of 1A
• Suitable for temperatures up to 105°C
• 2x15 pin layout offers versatile configurations

• Ideal for automation control systems
• Suitable for electronic circuit boards

The cable features a black glass-filled polyester insulator and phosphor bronze terminals.
