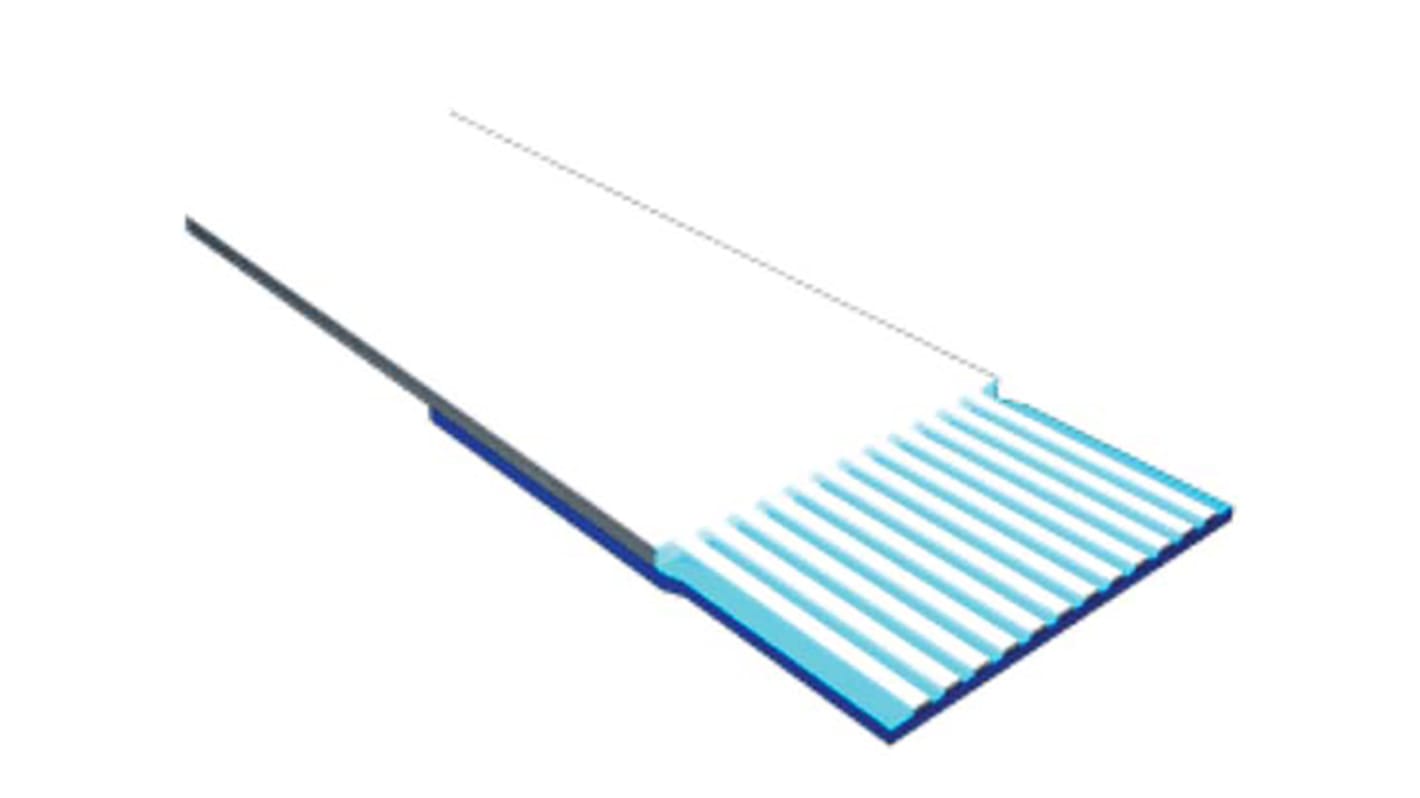

Samtec FJH Series Ribbon Cable, Flat, 0.5 mm Pitch, 4 mm Length
- RS Stock No.:
- 197-6642
- Mfr. Part No.:
- FJH-30-D-02.00-4
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
$4.20
(exc. GST)
$4.62
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 7 unit(s) shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | $4.20 |
| 25 - 249 | $4.03 |
| 250 + | $3.87 |
*price indicative
- RS Stock No.:
- 197-6642
- Mfr. Part No.:
- FJH-30-D-02.00-4
- Brand:
- Samtec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Cable Type | Flat | |
| Product Type | Ribbon Cable | |
| Pitch | 0.5mm | |
| Voltage | 60 V | |
| Series | FJH | |
| Cable Length | 4mm | |
| Standards/Approvals | RoHS Compliant | |
| Jacket Colour | Grey | |
| Hi-Flex | Yes | |
| Conductor Material | Tin Plated Copper | |
| Maximum Operating Temperature | 80°C | |
| Minimum Operating Temperature | 30°C | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Cable Type Flat | ||
Product Type Ribbon Cable | ||
Pitch 0.5mm | ||
Voltage 60 V | ||
Series FJH | ||
Cable Length 4mm | ||
Standards/Approvals RoHS Compliant | ||
Jacket Colour Grey | ||
Hi-Flex Yes | ||
Conductor Material Tin Plated Copper | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature 30°C | ||
The Samtec FJH series flat flexible cable with double end. It has tin platted copper conductor. It can be easily modified for custom pin count and length.
Operating Temperature Range -30°C to +80°C
Voltage rating 60VAC
RoHS compliant
Mating standard and ZIF connectors
