Honeywell Technologies SSCDANV015PASA3 Piezoresistive Pressure SensorThrough Hole 8 DIP
- RS Stock No.:
- 226-9729
- Mfr. Part No.:
- SSCDANV015PASA3
- Brand:
- Honeywell

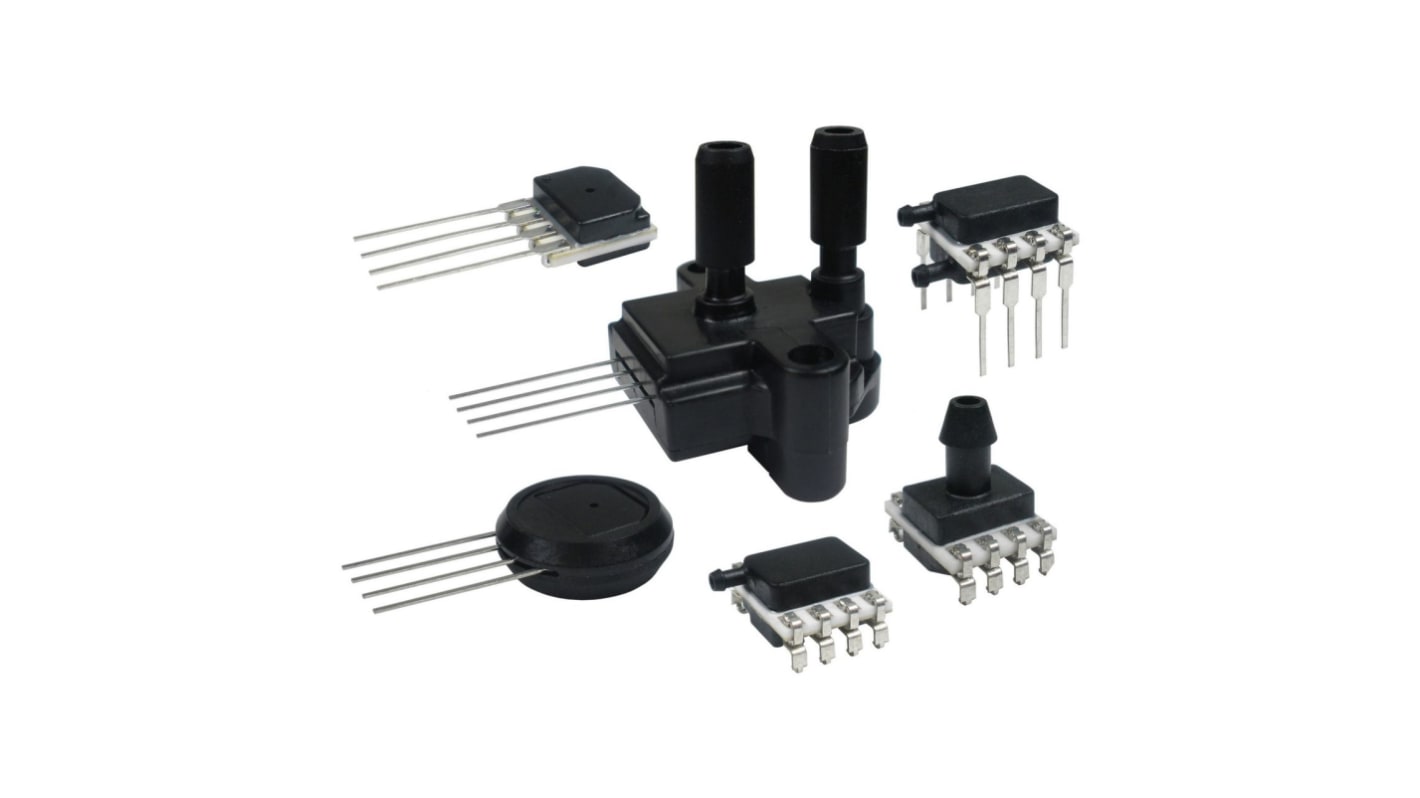

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$59.65
(exc. GST)
$65.62
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 118 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $59.65 |
| 10 - 24 | $58.59 |
| 25 - 49 | $57.53 |
| 50 + | $56.49 |
*price indicative
- RS Stock No.:
- 226-9729
- Mfr. Part No.:
- SSCDANV015PASA3
- Brand:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Sensor Type | Absolute Pressure Sensor | |
| Product Type | Piezoresistive Pressure Sensor | |
| Maximum Overload Pressure | 206kPa | |
| Mount Type | Through Hole | |
| Package Type | DIP | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Operating Pressure | 103 kPa | |
| Accuracy | ±0.25 % | |
| Port Type | Single Axial Barbed | |
| Maximum Supply Voltage | 5V | |
| Maximum Operating Temperature | 85°C | |
| Height | 13.75mm | |
| Standards/Approvals | No | |
| Series | SSC | |
| Length | 10mm | |
| Minimum Operating Pressure | 0psi | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Sensor Type Absolute Pressure Sensor | ||
Product Type Piezoresistive Pressure Sensor | ||
Maximum Overload Pressure 206kPa | ||
Mount Type Through Hole | ||
Package Type DIP | ||
Pin Count 8 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Operating Pressure 103 kPa | ||
Accuracy ±0.25 % | ||
Port Type Single Axial Barbed | ||
Maximum Supply Voltage 5V | ||
Maximum Operating Temperature 85°C | ||
Height 13.75mm | ||
Standards/Approvals No | ||
Series SSC | ||
Length 10mm | ||
Minimum Operating Pressure 0psi | ||
Automotive Standard No | ||
Minimum Operating Temperature -40°C | ||
Honeywell SSC Series Piezoresistive Pressure Sensor, 0 to 103KPa Operating Pressure, 3.3V Minimum Supply Voltage - SSCDANV015PASA3
This piezoresistive pressure sensor is an absolute pressure transducer designed for measuring up to atmospheric-range pressures. It operates on low-voltage supplies and is supplied in a through-hole DIP package with an axial barbed port for straightforward fluid connection. The device is intended for applications requiring compact, board-mounted sensing within a moderate temperature range.
Features and Benefits:
• ±0.25% accuracy delivers precise measurement performance
• 3.3V minimum supply enables low-voltage system integration
• 5V maximum supply allows compatibility with common controllers
• 103kPa maximum operating pressure supports near-atmospheric sensing
• -40°C to 85°C range permits use across varied environments
• 3.3V minimum supply enables low-voltage system integration
• 5V maximum supply allows compatibility with common controllers
• 103kPa maximum operating pressure supports near-atmospheric sensing
• -40°C to 85°C range permits use across varied environments
Applications
• Suitable for pressure monitoring in laboratory instruments
• Ideal for Compact pneumatic control systems
• Used for environmental sensing in enclosed equipment
• Can be used for low-pressure leak detection setups
• Suitable for integration into prototype evaluation boards
• Ideal for Compact pneumatic control systems
• Used for environmental sensing in enclosed equipment
• Can be used for low-pressure leak detection setups
• Suitable for integration into prototype evaluation boards
How is the sensor physically mounted to a board?
It is supplied in a through-hole DIP package for insertion and soldering to a PCB.
What electrical Interface does it require for operation?
It requires a single supply between 3.3V and 5V and uses an 8-pin connection for signals and power.
What type of pressure connection does it employ?
A single axial barbed port is used for fluid or tubing attachment.
What measurement range and overload capability does it offer?
It measures up to 103kPa and can tolerate overloads up to 206kPa.
