Honeywell Technologies HSCDANN015PA2A3 Absolute Pressure SensorBoard 8 DIP
- RS Stock No.:
- 214-1439
- Distrelec Article No.:
- 304-56-874
- Mfr. Part No.:
- HSCDANN015PA2A3
- Brand:
- Honeywell

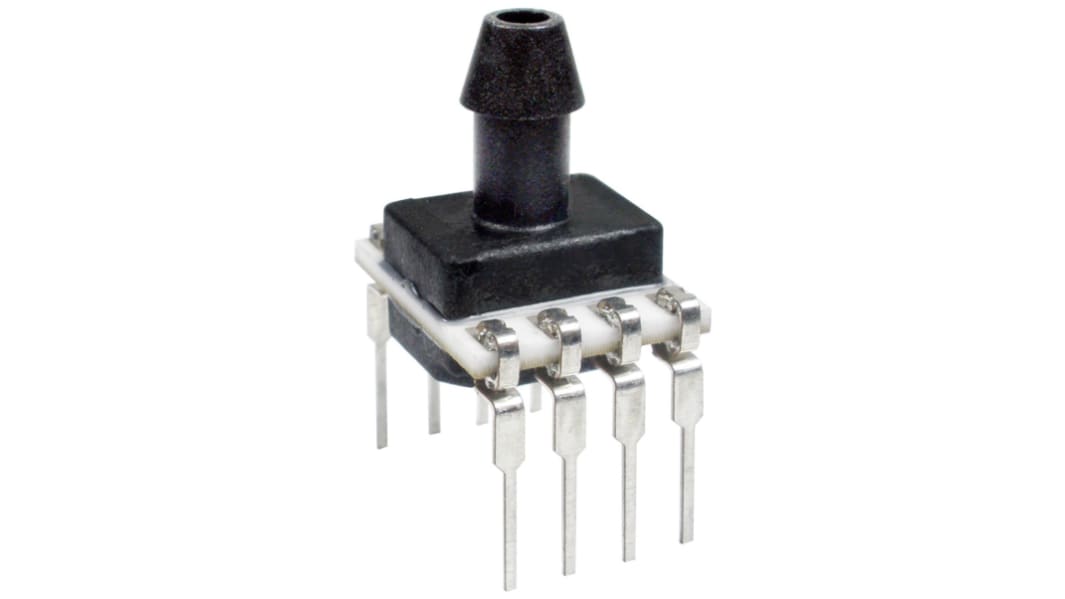

This image is representative of the product range
Get a bulk buy discount
Add 100 more to save $167.30
View bulk pricing optionsSubtotal (1 box of 50 units)*
$3,345.00
(exc. GST)
$3,679.50
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Temporarily out of stock
- Shipping from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* | Saving |
|---|---|---|---|
| 50 - 50 | $66.90 | $3,345.00 | - |
| 100 - 150 | $65.227 | $3,261.35 | $167.30 |
| 200 + | $64.224 | $3,211.20 | $535.20 |
*price indicative
- RS Stock No.:
- 214-1439
- Distrelec Article No.:
- 304-56-874
- Mfr. Part No.:
- HSCDANN015PA2A3
- Brand:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Absolute Pressure Sensor | |
| Maximum Overload Pressure | 30psi | |
| Sensor Type | Absolute Pressure Sensor | |
| Mount Type | Board | |
| Package Type | DIP | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Operating Pressure | 15 psi | |
| Maximum Supply Voltage | 6V | |
| Accuracy | ±0.25 % | |
| Port Type | Single Axial Barbed | |
| Maximum Operating Temperature | 85°C | |
| Width | 13.3mm | |
| Standards/Approvals | ISO 9001 | |
| Length | 10mm | |
| Series | HSC | |
| Height | 13.75mm | |
| Minimum Operating Pressure | 0psi | |
| Automotive Standard | ISO 9001 | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Absolute Pressure Sensor | ||
Maximum Overload Pressure 30psi | ||
Sensor Type Absolute Pressure Sensor | ||
Mount Type Board | ||
Package Type DIP | ||
Pin Count 8 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Operating Pressure 15 psi | ||
Maximum Supply Voltage 6V | ||
Accuracy ±0.25 % | ||
Port Type Single Axial Barbed | ||
Maximum Operating Temperature 85°C | ||
Width 13.3mm | ||
Standards/Approvals ISO 9001 | ||
Length 10mm | ||
Series HSC | ||
Height 13.75mm | ||
Minimum Operating Pressure 0psi | ||
Automotive Standard ISO 9001 | ||
Minimum Operating Temperature -40°C | ||
Honeywell HSC Series Absolute Pressure Sensor, 15psi Maximum Operating Pressure, ±0.25% Accuracy - HSCDANN015PA2A3
This absolute pressure sensor measures absolute pressure using an internal vacuum reference and provides a calibrated, temperature‑compensated output for use with non‑corrosive, non‑ionic gases in board‑mounted electronic systems. It operates from a low‑voltage supply and is intended for miniature applications where an amplified or digital, ratiometric signal is required for integration with microcontrollers and data acquisition hardware.
Features and Benefits:
• ±0.25% accuracy reduces software correction requirements
• 3.3V supply compatibility enables low‑voltage system integration
• 8‑pin DIP package allows straightforward through‑hole mounting
• Calibrated and temperature compensated for 0°C-50°C operation
• Single axial barbed port simplifies pneumatic connection to tubing
• Low power consumption (<10mW typical) supports battery operation
• 3.3V supply compatibility enables low‑voltage system integration
• 8‑pin DIP package allows straightforward through‑hole mounting
• Calibrated and temperature compensated for 0°C-50°C operation
• Single axial barbed port simplifies pneumatic connection to tubing
• Low power consumption (<10mW typical) supports battery operation
Applications
• Suitable for ventilator and respiratory monitoring systems
• Ideal for HVAC filter clog detection and VAV control
• Used with gas chromatography and flow instrumentation
• Can be used for oxygen concentrator pressure monitoring
• Suitable for barometry and ambient absolute pressure measurement
• Ideal for HVAC filter clog detection and VAV control
• Used with gas chromatography and flow instrumentation
• Can be used for oxygen concentrator pressure monitoring
• Suitable for barometry and ambient absolute pressure measurement
What supply voltages can it accept?
It is characterised for use from a single supply of either 3.3V or 5.0V and will operate within specified limits up to 6V.
What environmental temperature range does it tolerate during operation?
The device will operate over −40 to 85°C and is characterised for compensated performance across 0°C to 50°C.
Which output interfaces are available for direct microcontroller connection?
Outputs include a ratiometric analogue signal or digital interfaces compatible with I2C or SPI allowing direct microprocessor interfacing.
How is long‑term accuracy and interchangeability achieved?
Each sensor is fully calibrated and compensated on‑board using an ASIC, providing tight part‑to‑part accuracy and industry‑leading stability.
What media are permitted at the pressure port?
It is intended for non‑corrosive, non‑ionic gases, liquid‑media options are restricted to specific pressure ranges and require Port 1 only.
