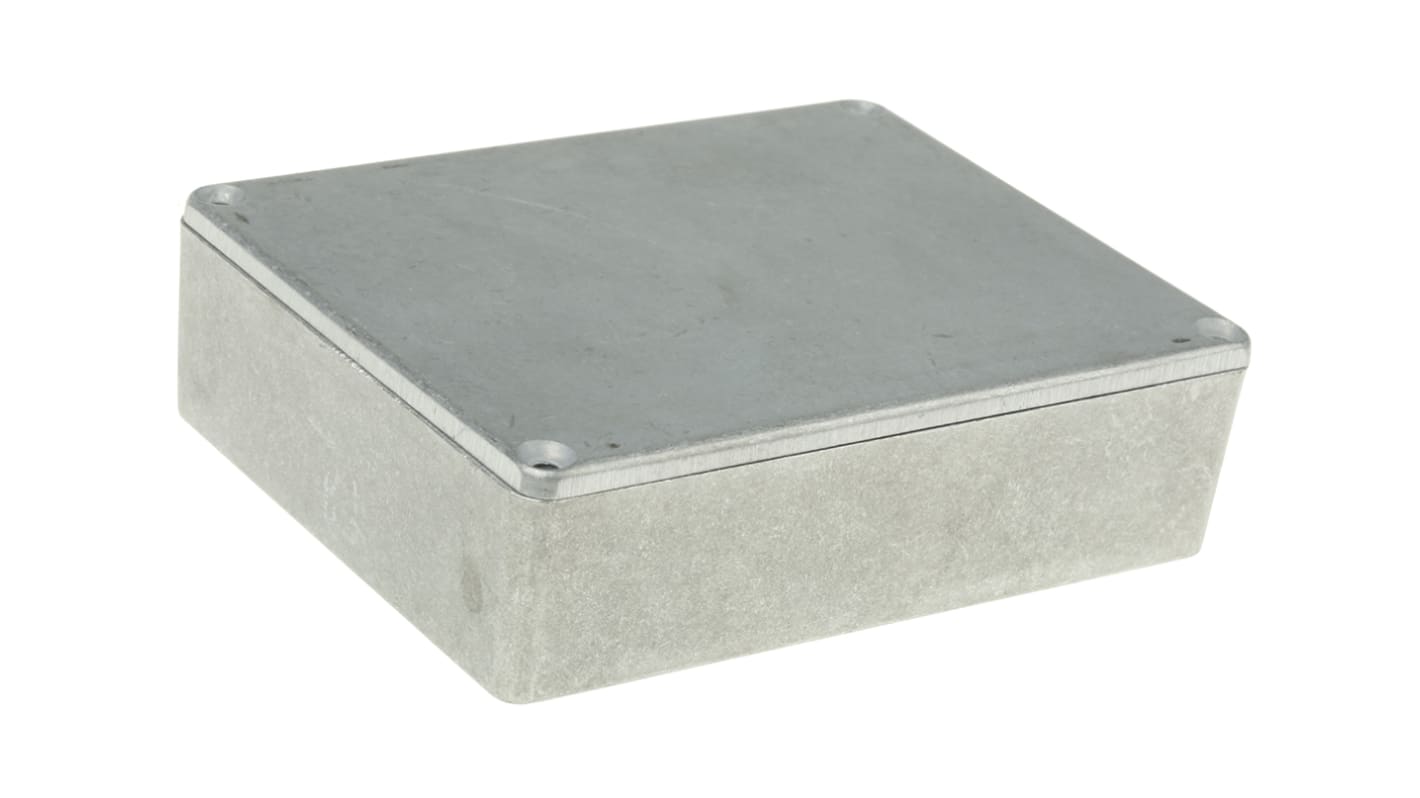

Hammond 1590 Series Natural Die Cast Aluminium Enclosure, IP65, Natural Lid, 119.5 x 94 x 34mm

RS Stock No.:: 364-2225
Mfr. Part No.:: 1590WBB
Brand:: Hammond

Hammond 1590 Series Natural Die Cast Aluminium Enclosure, IP65, Natural Lid, 119.5 x 94 x 34mm

On back order for despatch 21/06/2024, delivery within 10 working days from despatch date.

Price (ex. GST) Each

$22.58

(exc. GST)

$24.84

(inc. GST)

Units	Per unit
1 - 49	$22.58
50 - 99	$22.15
100 +	$21.80

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO Silver Die Cast Aluminium Enclosure, IP54, Silver Lid, 118.9 x 93.3 x 34.2mm

RS Stock No.: 161-0923

Price (ex. GST) Each

$15.58

(exc. GST)

$17.14

(inc. GST)

RS Stock No.:: 364-2225
Mfr. Part No.:: 1590WBB
Brand:: Hammond

Technical data sheets

Legislation and Compliance

Product Details

Hammond 1590 Watertight Diecast Aluminium Enclosures

The Hammond 1590 series is a rugged diecast aluminium alloy enclosure suitable for electronic instruments which is tough, yet easy to machine. It has a lap joint construction with a self adhesive silicone gasket around the lid perimeter which provides IP65 protection against dust and water and also provides improved EMI/RFI shielding.

Features and Benefits:

• Rugged, diecast aluminium alloy 384 (tough yet easy to machine), electronic instrument enclosure
• Lap joint construction with a silicone rubber gasket which fits around the perimeter of the lid provides protection against dust and water
• Silicone rubber gasket remains flexible from -62 to +232 °C (-80 to +450 °F)
• Vibra finished for a smooth surface with no sharp edges
• Four (or 6 in 1590D, 1590DD, 8 in 1590F) 6-32 x 1/2 in. stainless steel machine screws secure lid into factory tapped holes
• Screws use neoprene 'O' rings (included)
• Designed to meet IP65

FAQ:

What does IP rating mean?

The IP rating is used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture. For more information please, visit SOLUTIONS section at the top of the page or click on Selection Guide of an Enclosures.

What is supplied?

• An enclosure with a lid
• 4 cover screws

Note

Replacement Lid screws 6-32 UNC x " clear with o-ring.
Dimensions do not include the lid and exclude flanges (add 4mm to height for the lid)

Specifications

Attribute	Value
Body Material	Die Cast Aluminium
External Length	119.5 mm
External Height	34 mm
External Width	94 mm
External Dimensions	119.5 x 94 x 34mm
Range	1590
IP Rating	IP65
Colour	Natural
Lid Colour	Natural
Flanged	No
Shielded	Yes
Series	1590
Number Of Knockouts	0
Weight	145g
Gasket Material	Silicone
Explosion Proof	No
