Hammond 1590 Series Red Die Cast Aluminium Enclosure, IP54, Red Lid, 119.5 x 94 x 34mm

RS Stock No.:: 756-8780
Mfr. Part No.:: 1590BBRD
Brand:: Hammond

Hammond 1590 Series Red Die Cast Aluminium Enclosure, IP54, Red Lid, 119.5 x 94 x 34mm

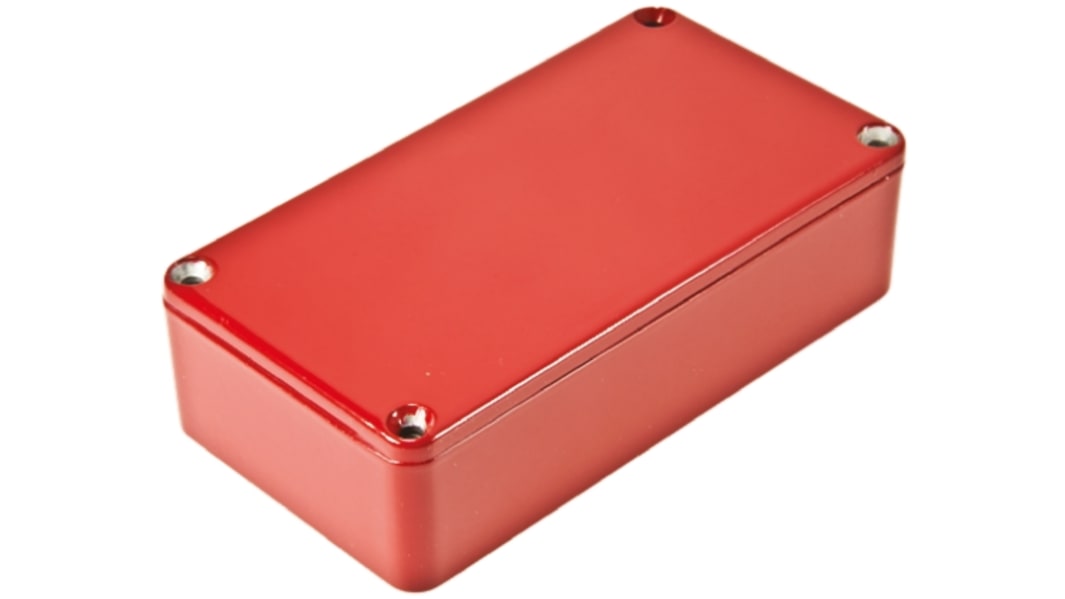

This image is representative of the product range

On back order for despatch 10/07/2024, delivery within 10 working days from despatch date.

Price (ex. GST) Each

$22.11

(exc. GST)

$24.32

(inc. GST)

Units	Per unit
1 - 4	$22.11
5 +	$21.85

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO Red Die Cast Aluminium Enclosure, IP54, Red Lid, 152 x 82 x 49.75mm

RS Stock No.: 158-5313

Price (ex. GST) Each

$105.80

(exc. GST)

$116.38

(inc. GST)

RS Stock No.:: 756-8780
Mfr. Part No.:: 1590BBRD
Brand:: Hammond

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Hammond 1590 Diecast Aluminium Enclosure

The Hammond 1590 series is a rugged diecast aluminium alloy enclosure suitable for electronic instruments which is tough, yet easy to machine. It has a lap joint construction which provides IP54 protection against dust and splashing water and also provides improved EMI/RFI shielding. The enclosure, also known as a Stomp Box, is available in a rectangular, trapezoidal or octagonal design and in a variety of colours.

Features and Benefits:

• Rugged, diecast aluminium alloy, tough yet easy to machine
• Lap joint construction provides IP54 protection against dust and splashing water also provides improved EMI/RFI shielding
• Tough polyester powder paint finish allows for easy adhesion of labels and/or silk screens
• Paint colours are matched to standard RAL colors
• Four or six, depending on size of enclosure, 6-32 x 1/2 in. stainless steel machine screws secure lid into factory tapped holes
• Low side wall draft angle (2° or less) for easy PC board mounting

FAQ:

What does IP rating means?

The IP rating is used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture. For more information please, visit SOLUTIONS section at the top of the page or click on Selection Guide of an Enclosures.

What is supplied?

• An enclosure with a lid

• Color matched screws

Note

Dimensions do not include the lid.

Specifications

Attribute	Value
Body Material	Die Cast Aluminium
External Length	119.5 mm
External Height	34 mm
External Width	94 mm
External Dimensions	119.5 x 94 x 34mm
Range	1590
IP Rating	IP54
Colour	Red
Lid Colour	Red
Flanged	No
Shielded	Yes
Series	1590
Number Of Knockouts	0
Weight	229g
RAL Code	RAL 3011
Explosion Proof	No
