MPN

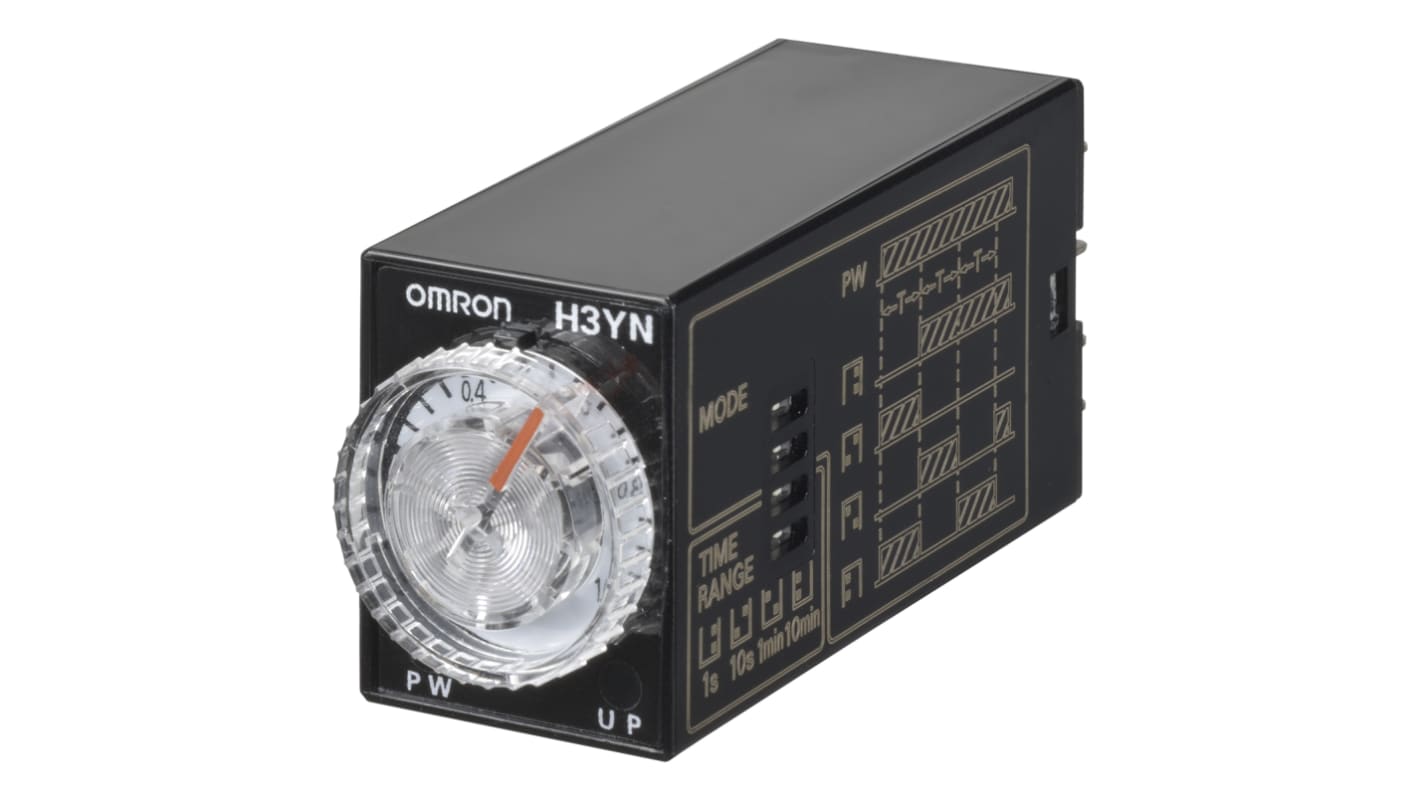

Omron H3YN Series Panel Timer Relay, 4-Contact, 125 V dc 100/120 V ac, 0.1 min to 10 h, Multifunction-Function, DPDT

RS Stock No.:: 106-6254
Mfr. Part No.:: H3YN-21-B 100-120VAC
Brand:: Omron

Omron H3YN Series Panel Timer Relay, 4-Contact, 125 V dc 100/120 V ac, 0.1 min to 10 h, Multifunction-Function, DPDT

Subtotal (1 unit)*

$177.98

(exc. GST)

$195.78

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Temporarily out of stock

Shipping from 18 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$177.98

*price indicative

RS Stock No.:: 106-6254
Mfr. Part No.:: H3YN-21-B 100-120VAC
Brand:: Omron

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Timer Relay
	Mount Type	Panel
	Time Range	0.1 min to 10 h
	Number of Contacts	4
	Switching Voltage	250 V ac
	Number of Timer Functions	Multifunction
	Contact Configuration	DPDT
	IP Rating	IP40
	Minimum Operating Temperature	-10°C
	Contact Current	5A
	Supply DC Voltage	125 V dc
	Supply AC Voltage	100/120 V ac
	Terminal Type	Push-in
	Maximum Operating Temperature	55°C
	Width	56.6 mm
	Height	28mm
	Length	21.5mm
	Standards/Approvals	UL 508, EN 61812-1, Lloyds, CE, CCC, CSA C22.2 No. 14, IEC 60664-1
	Series	H3YN

	Select all
	Brand Omron
	Product Type Timer Relay
	Mount Type Panel
	Time Range 0.1 min to 10 h
	Number of Contacts 4
	Switching Voltage 250 V ac
	Number of Timer Functions Multifunction
	Contact Configuration DPDT
	IP Rating IP40
	Minimum Operating Temperature -10°C
	Contact Current 5A
	Supply DC Voltage 125 V dc
	Supply AC Voltage 100/120 V ac
	Terminal Type Push-in
	Maximum Operating Temperature 55°C
	Width 56.6 mm
	Height 28mm
	Length 21.5mm
	Standards/Approvals UL 508, EN 61812-1, Lloyds, CE, CCC, CSA C22.2 No. 14, IEC 60664-1
	Series H3YN

Datasheet

COO (Country of Origin):: CN

Miniature Multi function Solid State Timer- H3YN Series

Miniature timers with multiple time ranges and operating modes.

• 8 or 14-pin models available

• Multiple operating modes

• Black design

• Power supply terminals on top and contact output terminals on bottom

• Pin configuration compatible with MY power relay

• Wide supply voltage range

• Plug-in terminal

Omron H3YN Series Panel Timer Relay, 4-Contact, 125 V dc 100/120 V ac, 0.1 min to 10 h, Multifunction-Function, DPDT

FREE delivery for orders over $60.00 ex GST

Miniature Multi function Solid State Timer- H3YN Series
