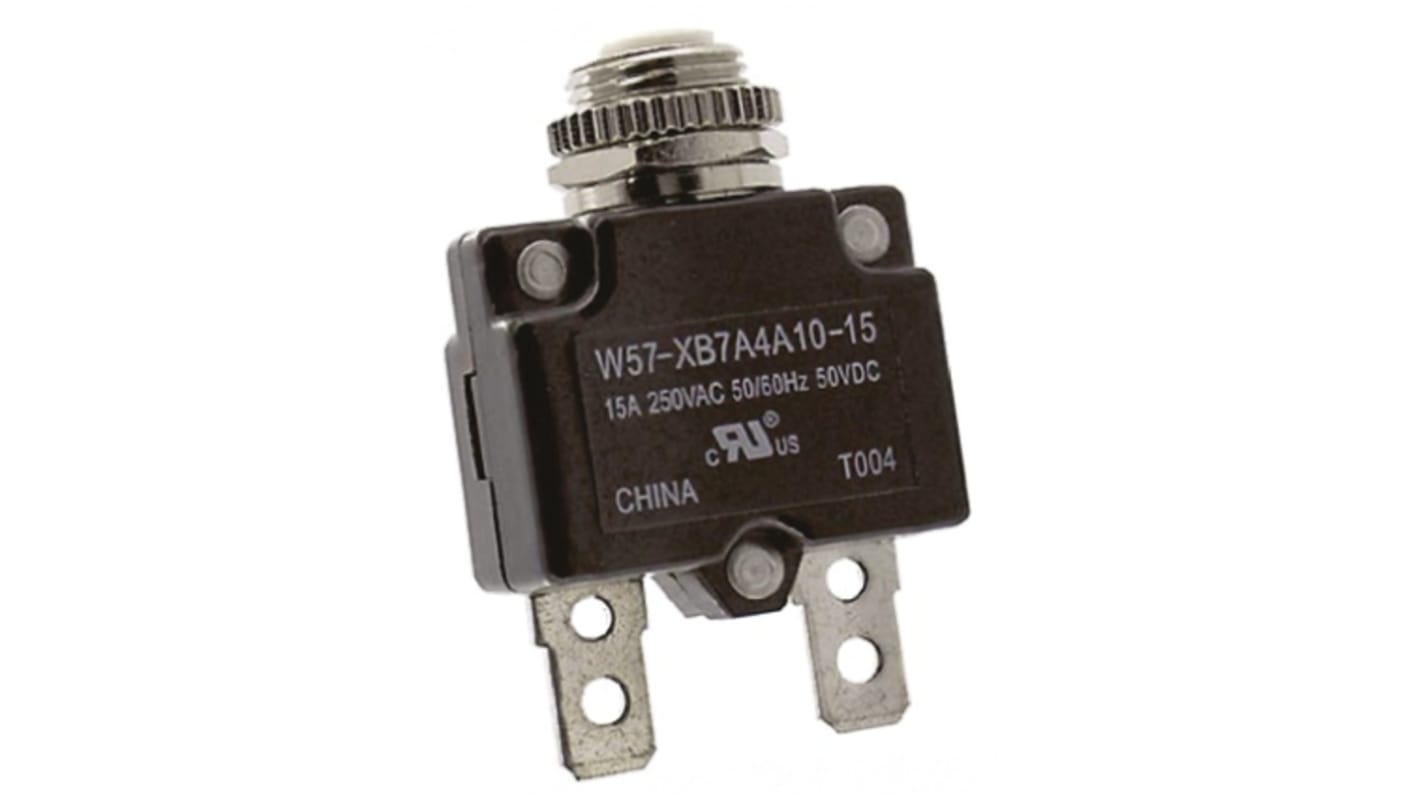

TE Connectivity W57 Thermal Circuit Breaker - 1-Pole, Direct, 15A Current Rating, 1000 A, 250V ac, 50 V dc
- RS Stock No.:
- 782-7931
- Distrelec Article No.:
- 303-03-476
- Mfr. Part No.:
- W57-XB7A4A10-15
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
$6.77
(exc. GST)
$7.45
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Plus 10 unit(s) shipping from 20 April 2026
- Final 10 unit(s) shipping from 20 April 2026
Units | Per unit |
|---|---|
| 1 - 24 | $6.77 |
| 25 - 49 | $6.60 |
| 50 - 149 | $6.34 |
| 150 + | $6.19 |
*price indicative
- RS Stock No.:
- 782-7931
- Distrelec Article No.:
- 303-03-476
- Mfr. Part No.:
- W57-XB7A4A10-15
- Brand:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Current Rating | 15A | |
| Product Type | Thermal Circuit Breaker | |
| Series | W57 | |
| Number of Poles | 1 | |
| Width | 14.6mm | |
| Mount Type | Direct | |
| Terminal Type | Screw | |
| Mount Hole Size | 18.8 mm | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | must trip at 135% of rating within one hour at +25°C | |
| Standards/Approvals | CE, RoHS | |
| Rated AC Voltage | 250V ac | |
| Breaking Capacity | 1000A | |
| Rated DC Voltage | 50V dc | |
| Break Time | Medium | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Current Rating 15A | ||
Product Type Thermal Circuit Breaker | ||
Series W57 | ||
Number of Poles 1 | ||
Width 14.6mm | ||
Mount Type Direct | ||
Terminal Type Screw | ||
Mount Hole Size 18.8 mm | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics must trip at 135% of rating within one hour at +25°C | ||
Standards/Approvals CE, RoHS | ||
Rated AC Voltage 250V ac | ||
Breaking Capacity 1000A | ||
Rated DC Voltage 50V dc | ||
Break Time Medium | ||
- COO (Country of Origin):
- CN
TE Connectivity - W57 Series
