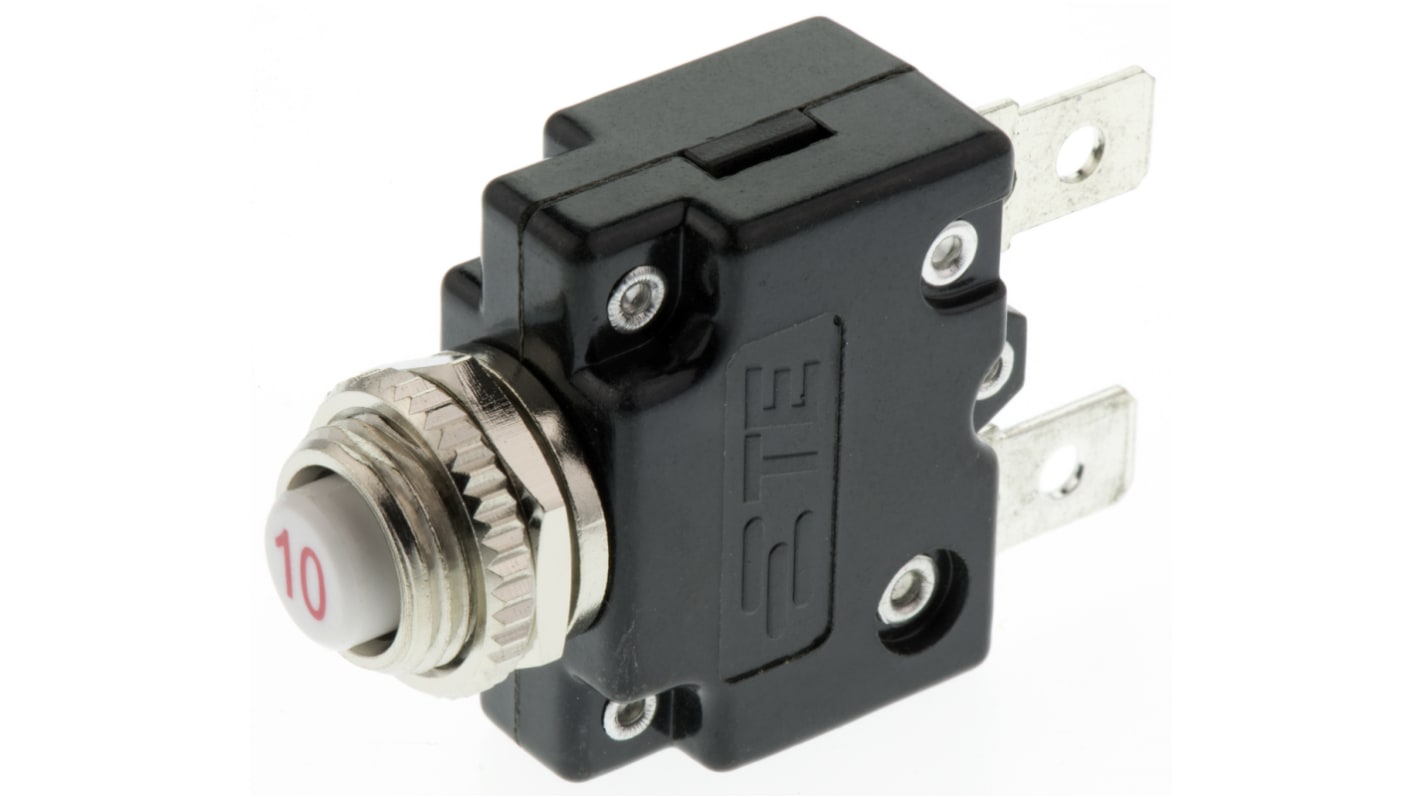

TE Connectivity W57 Thermal Circuit Breaker - 1-Pole, Direct, 10A Current Rating, 1000 A, 250V ac, 50 V dc

View all Thermal Breakers
Bulk discount available
View bulk pricing options

Subtotal (1 unit)*

$4.36

(exc. GST)

$4.80

(inc. GST)

Add to Basket
Select or type quantity
Last RS stock
  • 88 left, ready to ship from another location
  • Plus 64 unit(s) shipping from 30 April 2026
  • Final 67 unit(s) shipping from 07 May 2026

Units
Per unit
1 - 24$4.36
25 - 49$4.29
50 - 149$4.09
150 +$3.98

*price indicative

RS Stock No.:
782-0867
Distrelec Article No.:
304-23-641
Mfr. Part No.:
W57-XB7A4A10-10
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Current Rating

10A

Product Type

Thermal Circuit Breaker

Number of Poles

1

Series

W57

Width

14.6mm

Mount Type

Direct

Mount Hole Size

18.8 mm

Terminal Type

Screw

Tripping Mechanism

Thermal

Reset Actuator Type

Toggle Switch

Tripping Characteristics

but must trip at 135% of rating within one hour at +25°C, May trip between 101% and 134%

Depth

29.2mm

Standards/Approvals

RoHS, CE

Rated AC Voltage

250V ac

Height

46mm

Break Time

Medium

Breaking Capacity

1000A

Rated DC Voltage

50V dc

TE Connectivity - W57 Series
