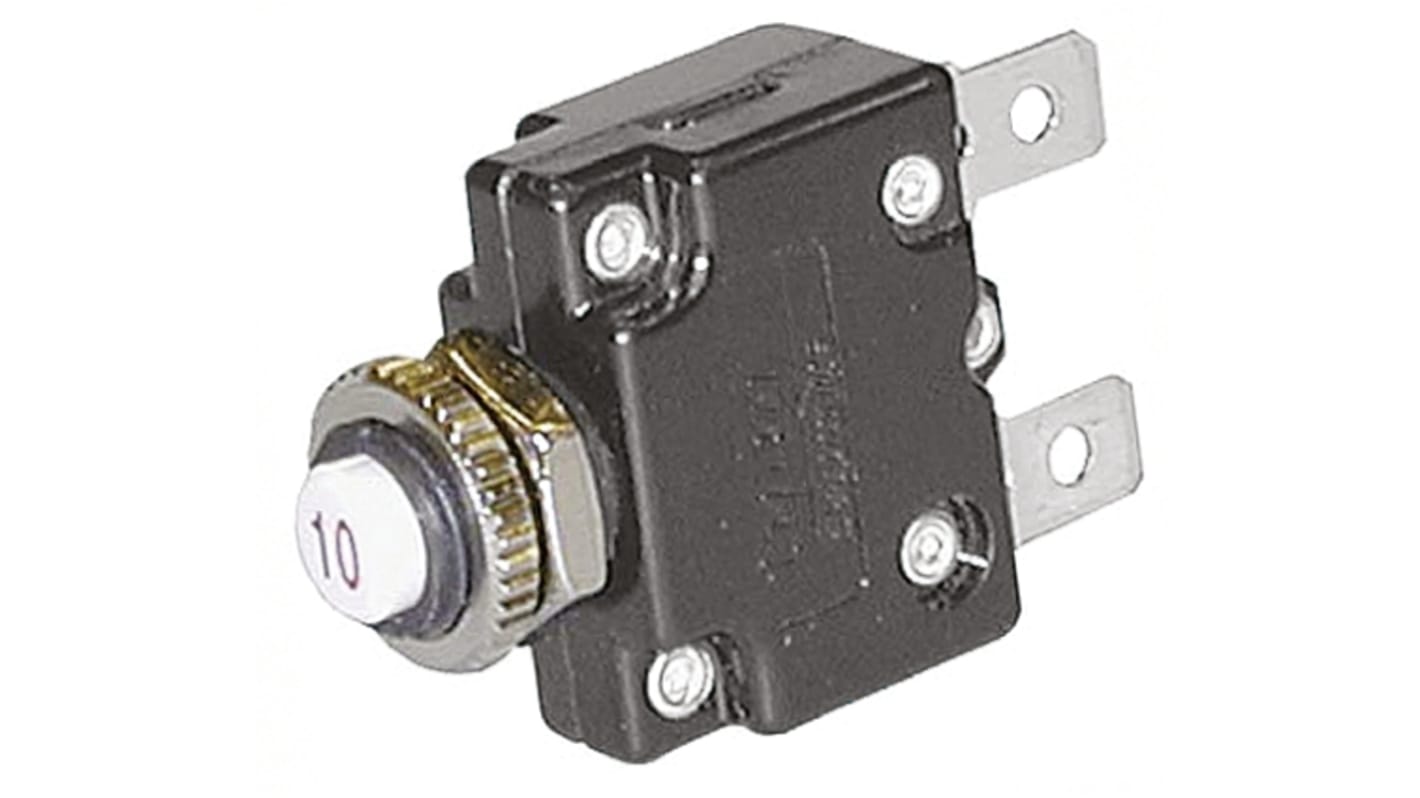

TE Connectivity 3 to 20 A W57 Thermal Circuit Breaker - 1-Pole, Direct, 5A Current Rating, 1000 A, 250V ac, 50 V dc
- RS Stock No.:
- 782-7938
- Mfr. Part No.:
- W57-XB7A4A10-5
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
$6.44
(exc. GST)
$7.08
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Being discontinued
- Final 65 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 24 | $6.44 |
| 25 - 49 | $6.10 |
| 50 - 149 | $5.77 |
| 150 - 749 | $5.48 |
| 750 + | $5.22 |
*price indicative
- RS Stock No.:
- 782-7938
- Mfr. Part No.:
- W57-XB7A4A10-5
- Brand:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Thermal Circuit Breaker | |
| Current Rating | 5A | |
| Number of Poles | 1 | |
| Series | W57 | |
| Range | 3 to 20 A | |
| Width | 14.6mm | |
| Mount Type | Direct | |
| Terminal Type | Screw | |
| Mount Hole Size | 18.8 mm | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | Trips at 135% of rating within one hour at +25°C | |
| Rated AC Voltage | 250V ac | |
| Standards/Approvals | RoHS, CE | |
| Breaking Capacity | 1000A | |
| Break Time | Medium | |
| Rated DC Voltage | 50V dc | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Thermal Circuit Breaker | ||
Current Rating 5A | ||
Number of Poles 1 | ||
Series W57 | ||
Range 3 to 20 A | ||
Width 14.6mm | ||
Mount Type Direct | ||
Terminal Type Screw | ||
Mount Hole Size 18.8 mm | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics Trips at 135% of rating within one hour at +25°C | ||
Rated AC Voltage 250V ac | ||
Standards/Approvals RoHS, CE | ||
Breaking Capacity 1000A | ||
Break Time Medium | ||
Rated DC Voltage 50V dc | ||
TE Connectivity - W57 Series
