XP Power DC/DC Switching Regulator 36V, 2 A Output Current, 5 Outputs
- RS Stock No.:
- 212-4699
- Mfr. Part No.:
- VR20S3V3
- Brand:
- XP Power

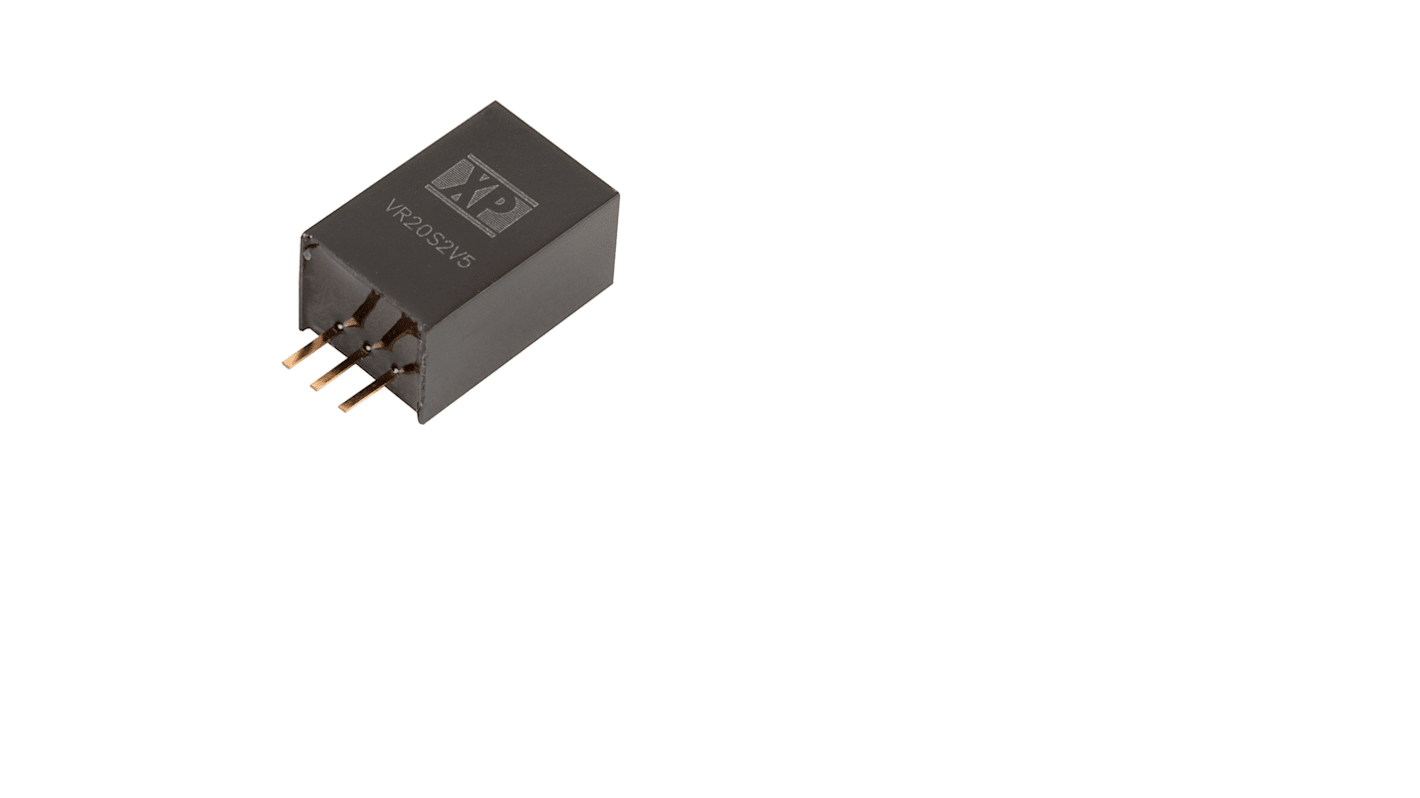

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 212-4699
- Mfr. Part No.:
- VR20S3V3
- Brand:
- XP Power
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | DC/DC Switching Regulator | |
| Output Current | 2A | |
| Number of Outputs | 5 | |
| Efficiency | 96% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | VR20 | |
| Line Regulation | 60 mV | |
| Standards/Approvals | RoHS | |
| Maximum Input Voltage | 36V | |
| Load Regulation | 90 mV | |
| Minimum Input Voltage | 6V | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type DC/DC Switching Regulator | ||
Output Current 2A | ||
Number of Outputs 5 | ||
Efficiency 96% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series VR20 | ||
Line Regulation 60 mV | ||
Standards/Approvals RoHS | ||
Maximum Input Voltage 36V | ||
Load Regulation 90 mV | ||
Minimum Input Voltage 6V | ||
- COO (Country of Origin):
- CN
The XP power VR20 provides a cost effective Compact efficient switching regulator solution operating from a wide range DC input. Output voltages start from 2.5V and the VR20 consumes as little as 0.1mA when idle.
Wide Input Range to 36V
SIP3 Package
High Efficiency to 96%
