ABB Wire Splice Splice Connector 16 → 12 AWG
- RS Stock No.:
- 253-1276
- Mfr. Part No.:
- 7TAI029010R0014
- Brand:
- ABB
On back order for despatch 25/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Pack of 1000)
$0.601
(exc. GST)
$0.661
(inc. GST)
| Units | Per unit | Per Pack* |
| 1000 + | $0.601 | $601.00 |
| *price indicative | ||
- RS Stock No.:
- 253-1276
- Mfr. Part No.:
- 7TAI029010R0014
- Brand:
- ABB
Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
- COO (Country of Origin):
- US
Product Details

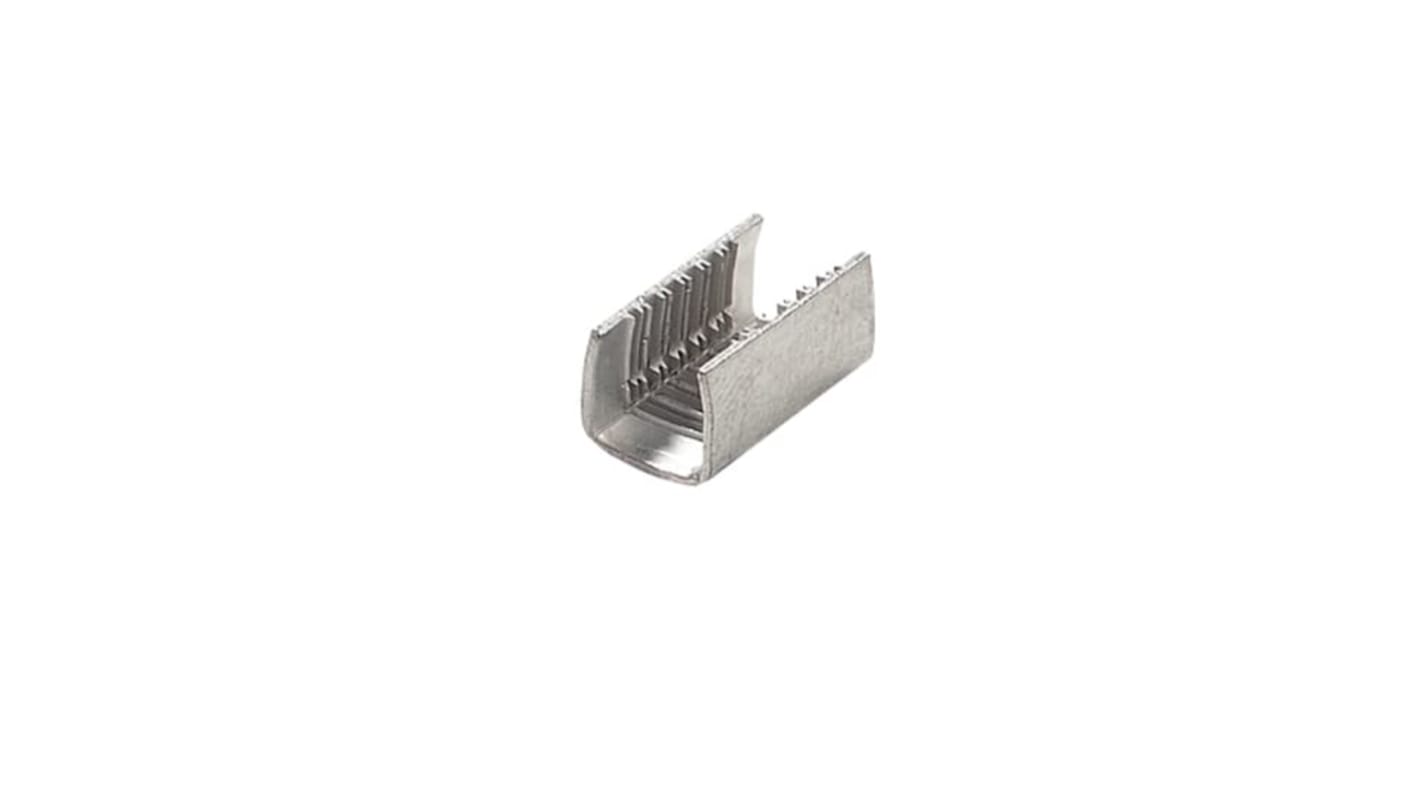

The ABB insulation piercing magnet wire splice has 2,580 to 12,330 circular mil area. The material used is copper alloy (tin plated).
Length 0.44 inches
Width 0.25 inches
Height 0.22 inches
Wire range 16 AWG to 12 AWG
Width 0.25 inches
Height 0.22 inches
Wire range 16 AWG to 12 AWG
Specifications
Attribute | Value |
|---|---|
| Splice Type | Wire Splice |
| Wire Size | 16 → 12 AWG |
| Overall Length | 0.44in |
| Minimum Wire Size AWG | 16AWG |
| Insulation | Uninsulated |
| Maximum Wire Size AWG | 12AWG |
| Number of Ways | 2 |
