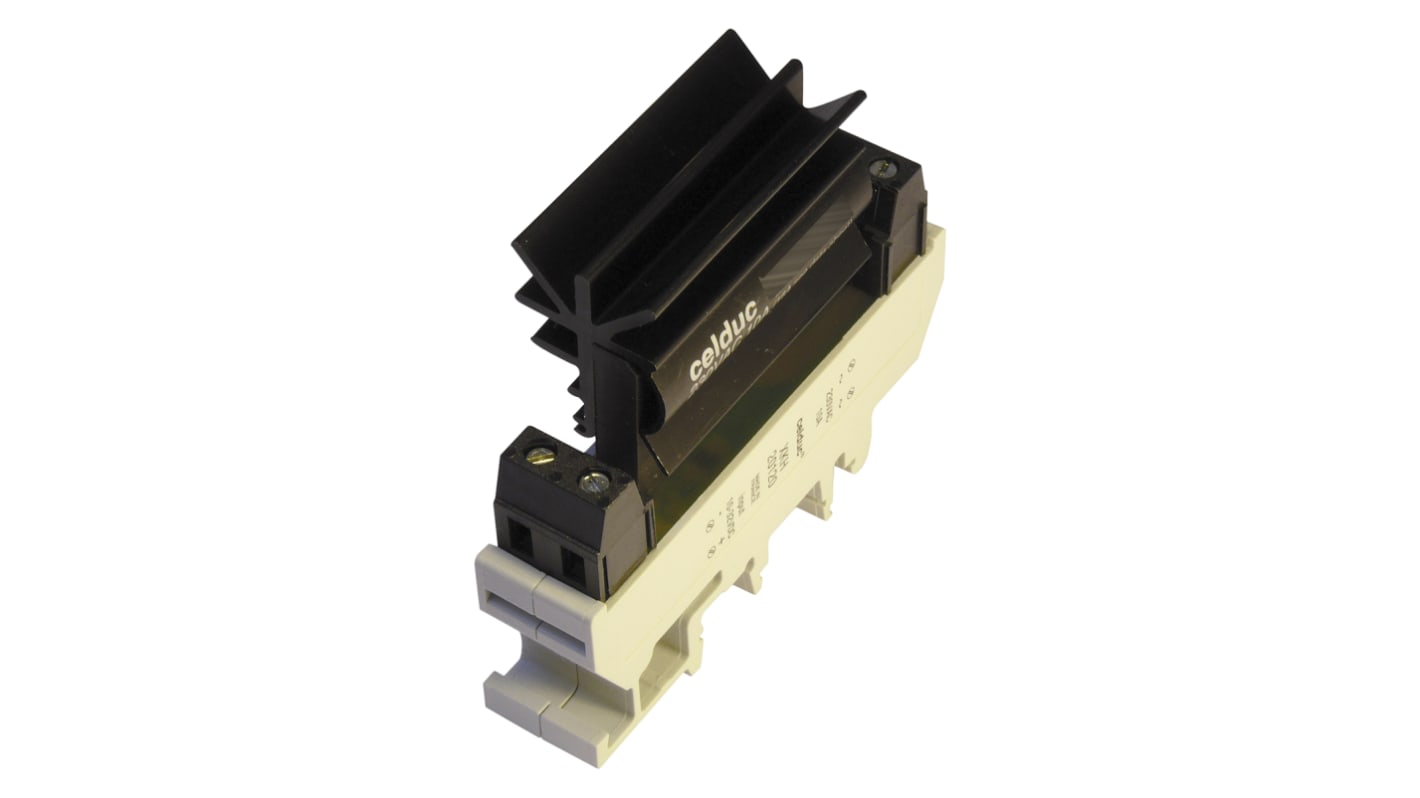

Celduc XK Series Solid State Relay, 10 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control

RS Stock No.:: 917-4876
Mfr. Part No.:: XKH20120
Brand:: Celduc

Celduc XK Series Solid State Relay, 10 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control

7 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$141.46

(exc. GST)

$155.61

(inc. GST)

Units	Per unit
1 +	$141.46

RS Stock No.:: 917-4876
Mfr. Part No.:: XKH20120
Brand:: Celduc

Datasheet

Attribute	Value
Maximum Load Current	10 A
Mounting Type	DIN Rail
Maximum Load Voltage	280 V ac
Minimum Load Voltage	12 V ac
Minimum Control Voltage	10 V dc
Maximum Control Voltage	32 V dc
Switching Type	Zero Cross
Control Voltage Range	10 → 32 V dc
Range	XK
Number of Poles	1
Terminal Type	PCB Pin
Output Device	Bipolar Transistor
Relay Type	AC
Maximum Turn On Time	0.001ms
Load Voltage Range	12 → 280V
Series	XK
Dimensions	76.4 x 65 x 25mm
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-40°C
Standards Met	EN60947-4-x, EN61810, IEC
Depth	65mm
Special Features	Control Visualization By LED.
Length	25mm
Height	76.4mm

Celduc XK Series Solid State Relay, 10 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control

Non-pull-out vertical relays for DIN rail
