Sensata / Crydom HS301DR Series Solid State Relay, 24 A Load, DIN Rail Mount, 280 V ac Load, 32V Control
- RS Stock No.:
- 703-4599
- Mfr. Part No.:
- HS301DR-D2425
- Brand:
- Sensata / Crydom

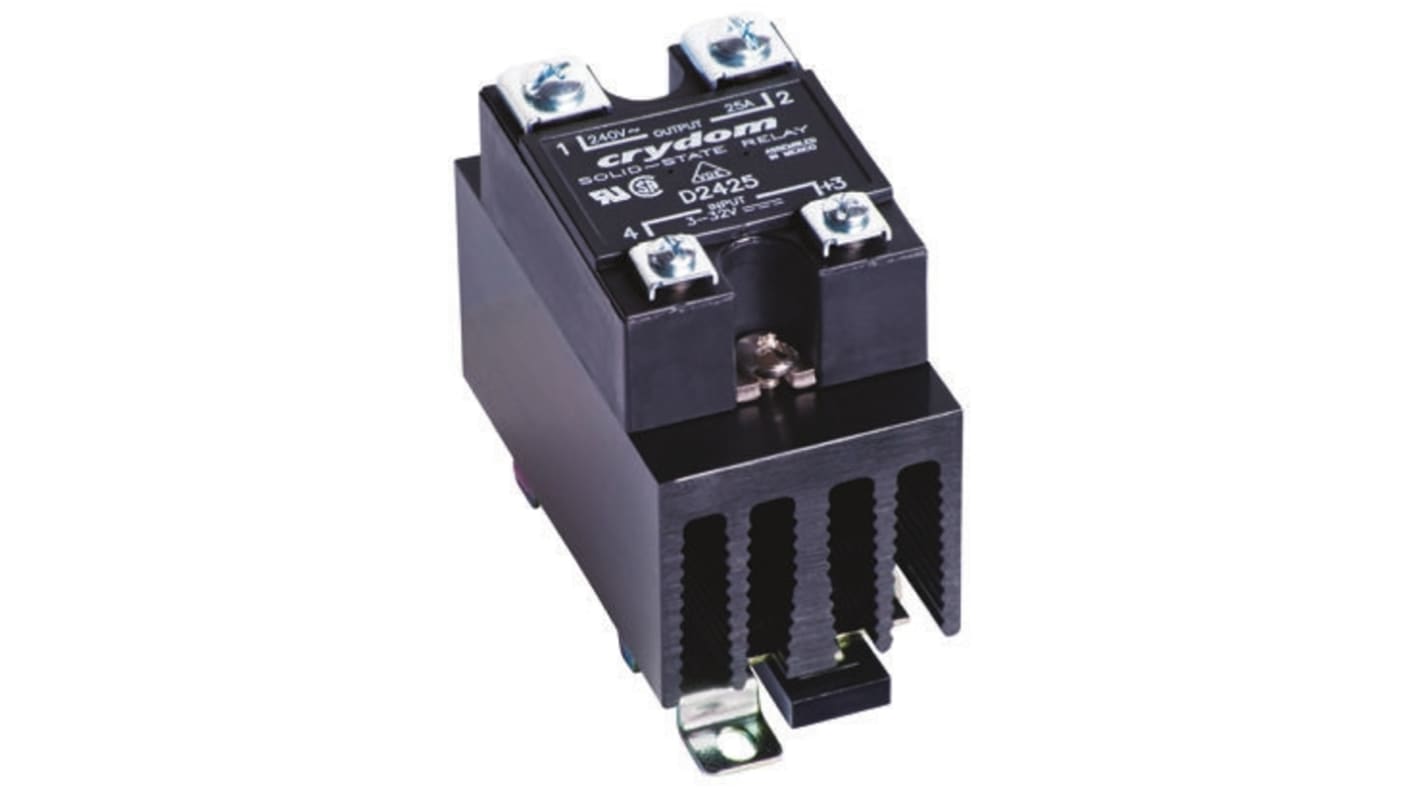

This image is representative of the product range
Subtotal (1 unit)*
$167.78
(exc. GST)
$184.56
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 02 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $167.78 |
*price indicative
- RS Stock No.:
- 703-4599
- Mfr. Part No.:
- HS301DR-D2425
- Brand:
- Sensata / Crydom
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 24A | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 280V ac | |
| Minimum Load Voltage | 24V ac | |
| Minimum Control Voltage | 3V dc | |
| Maximum Control Voltage | 32V | |
| Series | HS301DR | |
| Terminal Type | Screw | |
| Contact Configuration | SPST-NO | |
| Minimum Operating Temperature | -40°C | |
| Switching Function | Zero Cross Switching | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CSA, RoHS, UL, VDE, CE | |
| Length | 97.8mm | |
| Height | 46.5mm | |
| Width | 45 mm | |
| Capacitance | 8pF | |
| Output Type | AC | |
| Off State Leakage Current | 10mA | |
| Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Product Type Solid State Relay | ||
Maximum Load Current 24A | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 280V ac | ||
Minimum Load Voltage 24V ac | ||
Minimum Control Voltage 3V dc | ||
Maximum Control Voltage 32V | ||
Series HS301DR | ||
Terminal Type Screw | ||
Contact Configuration SPST-NO | ||
Minimum Operating Temperature -40°C | ||
Switching Function Zero Cross Switching | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CSA, RoHS, UL, VDE, CE | ||
Length 97.8mm | ||
Height 46.5mm | ||
Width 45 mm | ||
Capacitance 8pF | ||
Output Type AC | ||
Off State Leakage Current 10mA | ||
DIN Rail Mounting with Heatsink - HS301DR Series
Single channel output
3 to 32 Vdc input control voltage
DIN rail mounted
Thermal pad installed
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
