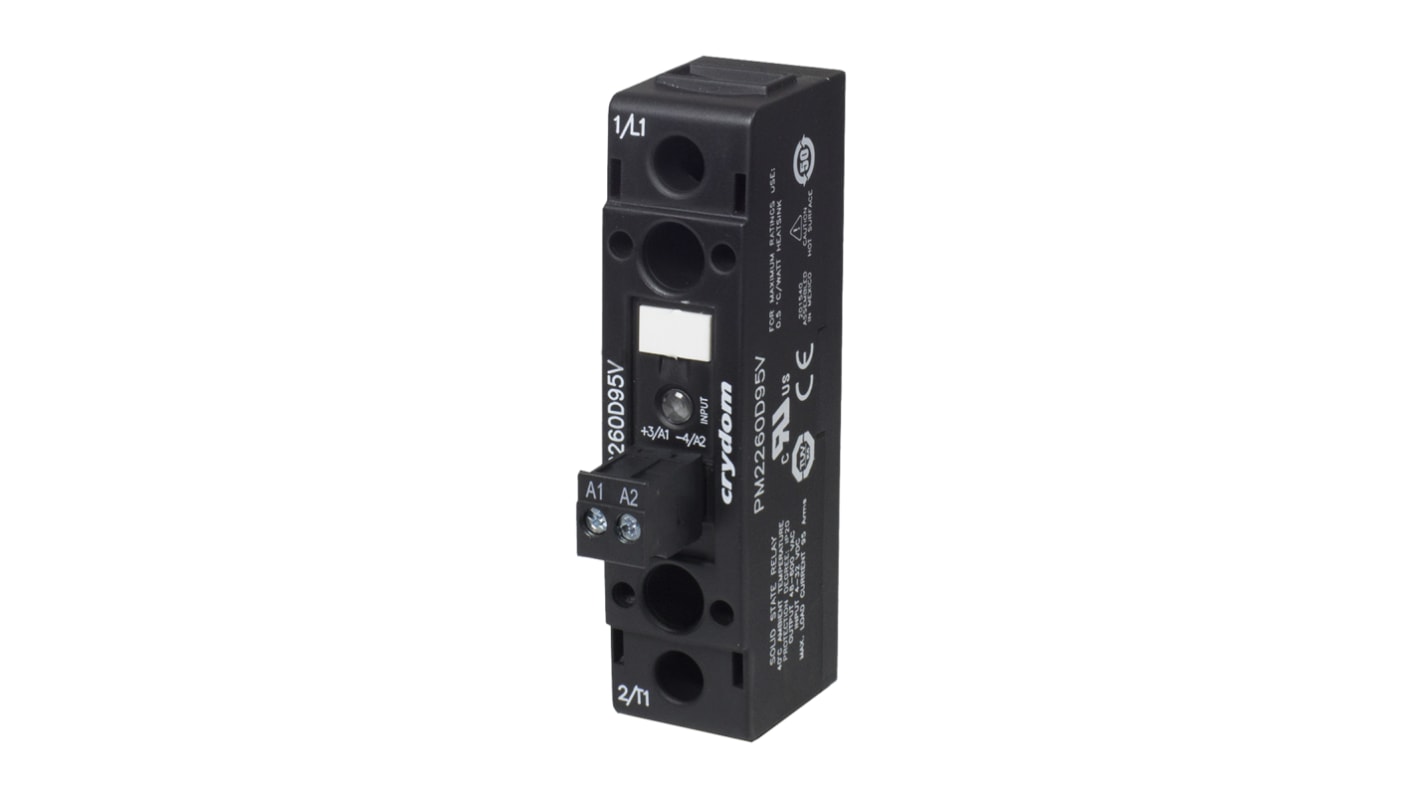

Sensata Crydom Solid State Relay, 25 A Load, Panel Mount, 600 V rms Load, 32 V dc Control
- RS Stock No.:
- 910-7337
- Mfr. Part No.:
- PM2260D25V
- Brand:
- Sensata / Crydom
Subtotal (1 unit)**
$111.06
(exc. GST)
$122.17
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit |
|---|---|
| 1 + | $111.06 |
**price indicative
- RS Stock No.:
- 910-7337
- Mfr. Part No.:
- PM2260D25V
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 25 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 600 V rms | |
| Minimum Load Voltage | 48 V rms | |
| Minimum Control Voltage | 4 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 4 → 32 V dc | |
| Minimum Load Current | 100 mA | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Contact Configuration | SP | |
| Output Device | Triac | |
| Relay Type | Nove 22 Solid State Relay | |
| Maximum Turn On Time | 1/2 cycles | |
| Load Voltage Range | 48 → 600Vrms | |
| Dimensions | 22.5 x 47.5 x 91.9mm | |
| Operating Temperature Range | -40 → +80°C | |
| Length | 22.5mm | |
| Standards Met | CE | |
| Special Features | IP20 Touch Safe Housing, LED Input Status Indicator | |
| Off State Leakage Current | 1 mA | |
| Capacitance | 8pF | |
| Depth | 47.5mm | |
| Height | 91.9mm | |
Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 25 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 600 V rms | ||
Minimum Load Voltage 48 V rms | ||
Minimum Control Voltage 4 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 4 → 32 V dc | ||
Minimum Load Current 100 mA | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Contact Configuration SP | ||
Output Device Triac | ||
Relay Type Nove 22 Solid State Relay | ||
Maximum Turn On Time 1/2 cycles | ||
Load Voltage Range 48 → 600Vrms | ||
Dimensions 22.5 x 47.5 x 91.9mm | ||
Operating Temperature Range -40 → +80°C | ||
Length 22.5mm | ||
Standards Met CE | ||
Special Features IP20 Touch Safe Housing, LED Input Status Indicator | ||
Off State Leakage Current 1 mA | ||
Capacitance 8pF | ||
Depth 47.5mm | ||
Height 91.9mm | ||
