Honeywell Technologies HSCDRRD006MGAA5 Pressure SensorBoard 8 DIP

RS Stock No.:: 214-1453
Mfr. Part No.:: HSCDRRD006MGAA5
Brand:: Honeywell

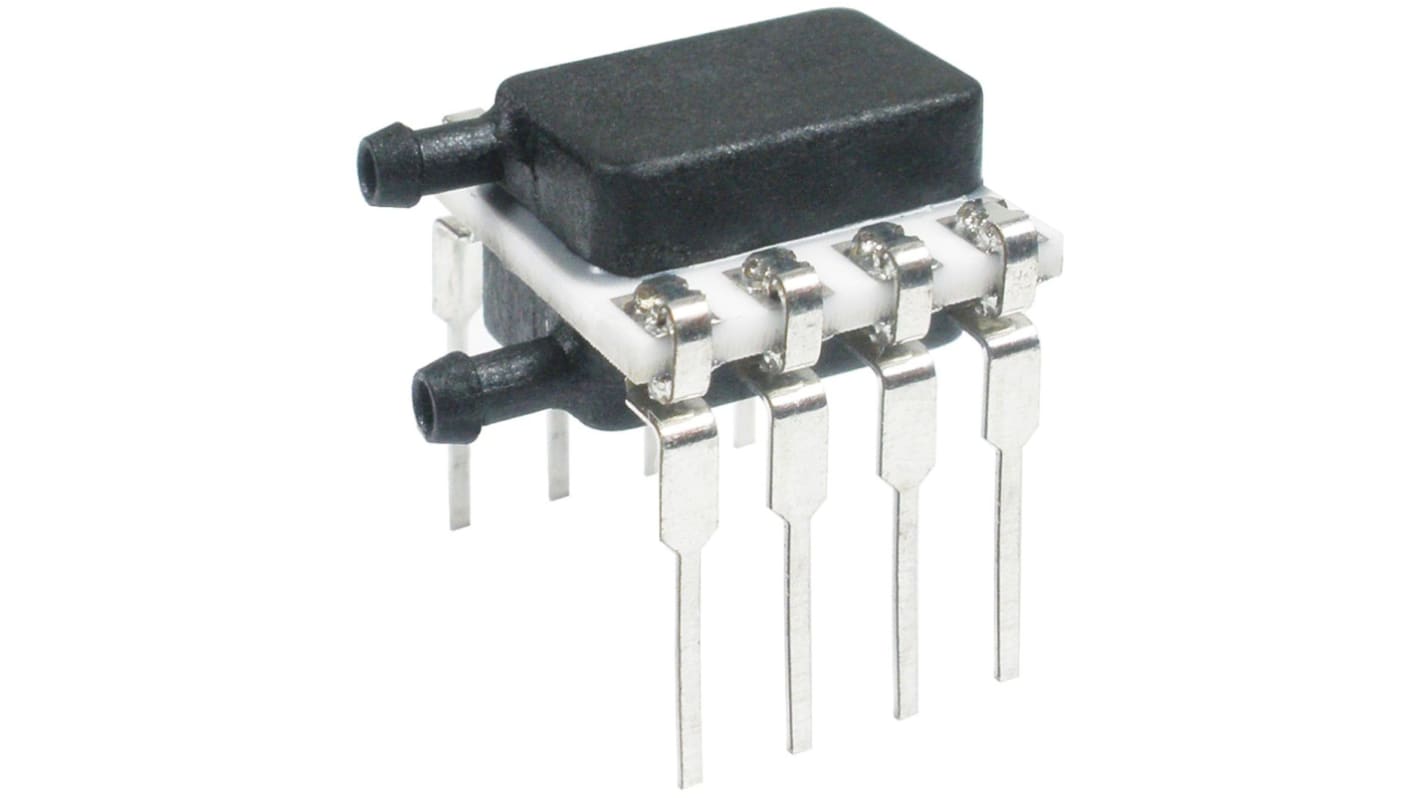

Honeywell Technologies HSCDRRD006MGAA5 Pressure SensorBoard 8 DIP

This image is representative of the product range

Get a bulk buy discount

Add 13 more to save 2%

View bulk pricing options

Subtotal (1 unit)*

$183.21

(exc. GST)

$201.53

(inc. GST)

FREE delivery for orders over $80.00 ex GST

In Stock

Plus 69 unit(s) shipping from 09 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Saving
1 - 12	$183.21	-
13 - 24	$178.69	2%
25 +	$175.92	3%

*price indicative

RS Stock No.:: 214-1453
Mfr. Part No.:: HSCDRRD006MGAA5
Brand:: Honeywell

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Sensor Type	Piezoresistive Pressure Sensor
	Maximum Overload Pressure	675mbar
	Product Type	Pressure Sensor
	Mount Type	Board
	Package Type	DIP
	Pin Count	8
	Minimum Supply Voltage	3.3V
	Maximum Operating Pressure	6 mbar
	Accuracy	±0.25 %
	Port Type	Dual Radial Barbed
	Maximum Supply Voltage	5V
	Maximum Operating Temperature	+85°C
	Height	13.75mm
	Width	13.3mm
	Series	HSC
	Length	10mm
	Standards/Approvals	ISO 9001
	Minimum Operating Pressure	0mbar
	Minimum Operating Temperature	-20°C
	Automotive Standard	ISO 9001

	Select all
	Brand Honeywell
	Sensor Type Piezoresistive Pressure Sensor
	Maximum Overload Pressure 675mbar
	Product Type Pressure Sensor
	Mount Type Board
	Package Type DIP
	Pin Count 8
	Minimum Supply Voltage 3.3V
	Maximum Operating Pressure 6 mbar
	Accuracy ±0.25 %
	Port Type Dual Radial Barbed
	Maximum Supply Voltage 5V
	Maximum Operating Temperature +85°C
	Height 13.75mm
	Width 13.3mm
	Series HSC
	Length 10mm
	Standards/Approvals ISO 9001
	Minimum Operating Pressure 0mbar
	Minimum Operating Temperature -20°C
	Automotive Standard ISO 9001

Datasheet-HSCDRRD006MGAA5

Honeywell HSC Series Gauge Pressure Sensor, 3.3V Minimum Supply Voltage, ±0.25% Accuracy - HSCDRRD006MGAA5

This gauge pressure sensor measures pressure relative to atmosphere for use with non-corrosive, non-ionic gases and select non-corrosive liquids at higher ranges. It is a board-mount device designed for low-power systems and can provide either ratiometric analogue or digital outputs for integration with microcontrollers. The sensor is calibrated and temperature-compensated to deliver consistent readings across typical industrial and medical operating environments.

Features and Benefits:

• ±0.25% accuracy pressure sensor for tight measurement tolerance
• 3.3-5V supply pressure sensor enabling direct MCU interfacing
• Calibrated output updates at approx. 1kHz analogue for Faster sampling
• Low power consumption under 10mW for battery-powered applications
• Dual radial barbed port pressure sensor simplifies tubing connections
• 8-pin DIP board mount sensor for straightforward PCB installation

Applications

• Used for airflow measurement in respiratory and ventilator systems
• Suitable for HVAC filter clog detection and VAV control systems
• Ideal for gas flow instrumentation and chromatography tools
• Used with medical oxygen concentrators and anaesthesia equipment
• Suitable for industrial barometry and flow calibration systems

What pressure limits and overload protection apply to this device?

The unit supports operating measurements from 0 mbar with working pressures rated to allow overloads up to 675 mbar on low ranges and higher overpressure ratings for larger ranges.

Which media are compatible with the sensor ports?

It is intended for dry, non-corrosive gases, liquid media compatibility is available only for Port 1 on specified higher pressure ranges and must be non-ionic and particulate-free.

How does the sensor manage temperature-related errors?

An on-board ASIC applies calibration and temperature compensation for offset, sensitivity, non-linearity and updates calibrated values across the compensated range.
