Vishay Isolated TrenchFET 2 Type P, Type P-Channel MOSFET, 135 mA, 60 V Enhancement, 6-Pin SC-89-6 SI1025X-T1-GE3
- RS Stock No.:
- 165-6899
- Mfr. Part No.:
- SI1025X-T1-GE3
- Brand:
- Vishay

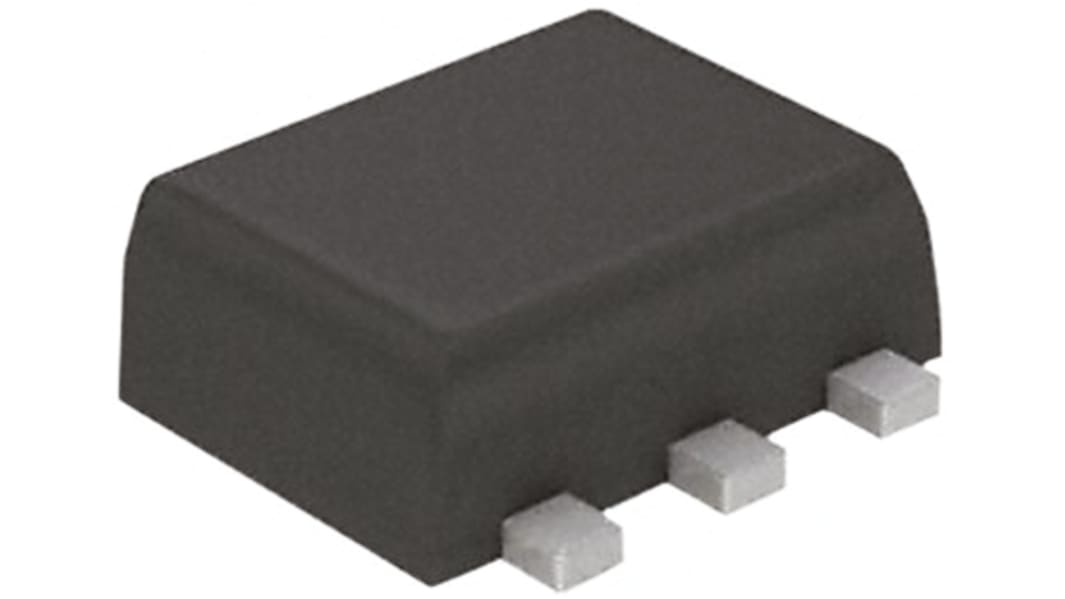

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 165-6899
- Mfr. Part No.:
- SI1025X-T1-GE3
- Brand:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type P, Type P | |
| Maximum Continuous Drain Current Id | 135mA | |
| Maximum Drain Source Voltage Vds | 60V | |
| Series | TrenchFET | |
| Package Type | SC-89-6 | |
| Mount Type | Surface, Surface Mount | |
| Pin Count | 6 | |
| Maximum Drain Source Resistance Rds | 8Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | -1.4V | |
| Maximum Power Dissipation Pd | 250mW | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Typical Gate Charge Qg @ Vgs | 1.7nC | |
| Transistor Configuration | Isolated | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Width | 1.2mm | |
| Length | 1.7mm | |
| Height | 0.6mm | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type P, Type P | ||
Maximum Continuous Drain Current Id 135mA | ||
Maximum Drain Source Voltage Vds 60V | ||
Series TrenchFET | ||
Package Type SC-89-6 | ||
Mount Type Surface, Surface Mount | ||
Pin Count 6 | ||
Maximum Drain Source Resistance Rds 8Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf -1.4V | ||
Maximum Power Dissipation Pd 250mW | ||
Maximum Gate Source Voltage Vgs 20V | ||
Typical Gate Charge Qg @ Vgs 1.7nC | ||
Transistor Configuration Isolated | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Width 1.2mm | ||
Length 1.7mm | ||
Height 0.6mm | ||
Number of Elements per Chip 2 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
Dual P-Channel MOSFET, Vishay Semiconductor
MOSFET Transistors, Vishay Semiconductor
