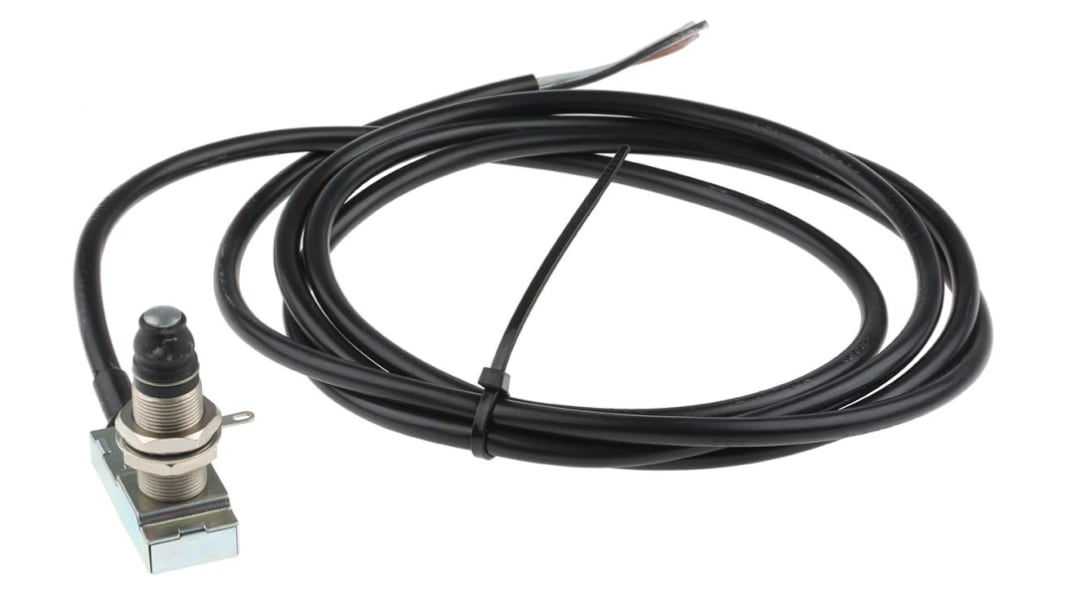

Crouzet 83731 Series Plunger Limit Switch, 1 NO/1 NC, IP66, 250V ac, 5A
- RS Stock No.:
- 539-315
- Mfr. Part No.:
- 83731324
- Brand:
- Crouzet
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
$89.01
(exc. GST)
$97.91
(inc. GST)
- RS Stock No.:
- 539-315
- Mfr. Part No.:
- 83731324
- Brand:
- Crouzet
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Actuator Type | Plunger | |
| Product Type | Limit Switch | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP66 | |
| Contact Type | Single Break | |
| Terminal Type | Cable | |
| Switching Current | 5A | |
| Series | 83731 | |
| Minimum Operating Temperature | -5°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CSA | |
| Width | 49mm | |
| Length | 49.5mm | |
| Depth | 22mm | |
| Hazardous Area Certification | No | |
| Mounting Orientation | Top | |
| Operating Force | 15N | |
| Conduit Entry | M16 | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Actuator Type Plunger | ||
Product Type Limit Switch | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP66 | ||
Contact Type Single Break | ||
Terminal Type Cable | ||
Switching Current 5A | ||
Series 83731 | ||
Minimum Operating Temperature -5°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CSA | ||
Width 49mm | ||
Length 49.5mm | ||
Depth 22mm | ||
Hazardous Area Certification No | ||
Mounting Orientation Top | ||
Operating Force 15N | ||
Conduit Entry M16 | ||
Mechanical Life 1000000Cycles | ||
- COO (Country of Origin):
- MA
Thermal current (Ith) 12 A
Assigned operating current (Ie) 5A at 250V
Minimum operating travel of 0.2mm
Temperature range -5 to +70 deg C
3 Terminal single pole form C changeover contacts
0.5M 3 core cable fitted, 0.75mm2 conductors
Hermetically sealed pushbutton limit switch, NO/NC
Mechanical life 1 000 000 operations
Approvals
CSA
