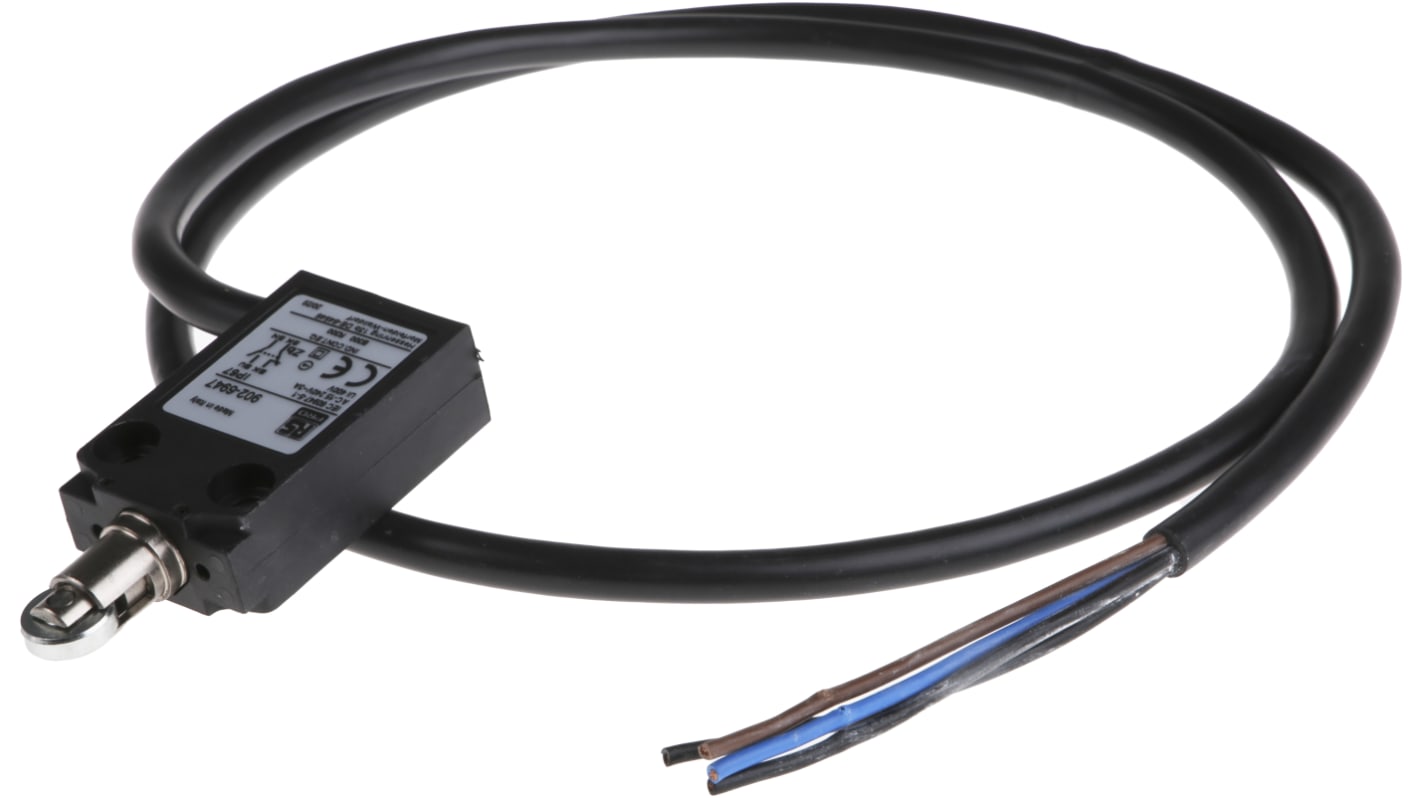

RS PRO Roller Plunger Limit Switch, NO/NC, IP67, DPST, Thermoplastic Housing, 240V ac Max, 5A Max
- RS Stock No.:
- 902-6947
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)**
$84.02
(exc. GST)
$92.42
(inc. GST)
11 In AU stock for next working day delivery*
109 In Global stock for delivery within 10 working day(s)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit |
|---|---|
| 1 - 4 | $84.02 |
| 5 + | $69.15 |
**price indicative
- RS Stock No.:
- 902-6947
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Actuator Type | Roller Plunger | |
| Pole and Throw Configuration | DPST | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP67 | |
| Maximum Current | 5A | |
| Housing Material | Thermoplastic | |
| Maximum AC Voltage | 240V | |
| Maximum DC Voltage | 250V | |
| Connection Type | Cable | |
| Action Type | Snap Action | |
| Length | 31.5mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Depth | 16mm | |
| Width | 70mm | |
| Mounting Orientation | Vertical | |
| Operating Force | 10 N | |
| Mechanical Life | 10000000Operations | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Actuator Type Roller Plunger | ||
Pole and Throw Configuration DPST | ||
Normal State Configuration NO/NC | ||
IP Rating IP67 | ||
Maximum Current 5A | ||
Housing Material Thermoplastic | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 250V | ||
Connection Type Cable | ||
Action Type Snap Action | ||
Length 31.5mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Depth 16mm | ||
Width 70mm | ||
Mounting Orientation Vertical | ||
Operating Force 10 N | ||
Mechanical Life 10000000Operations | ||
