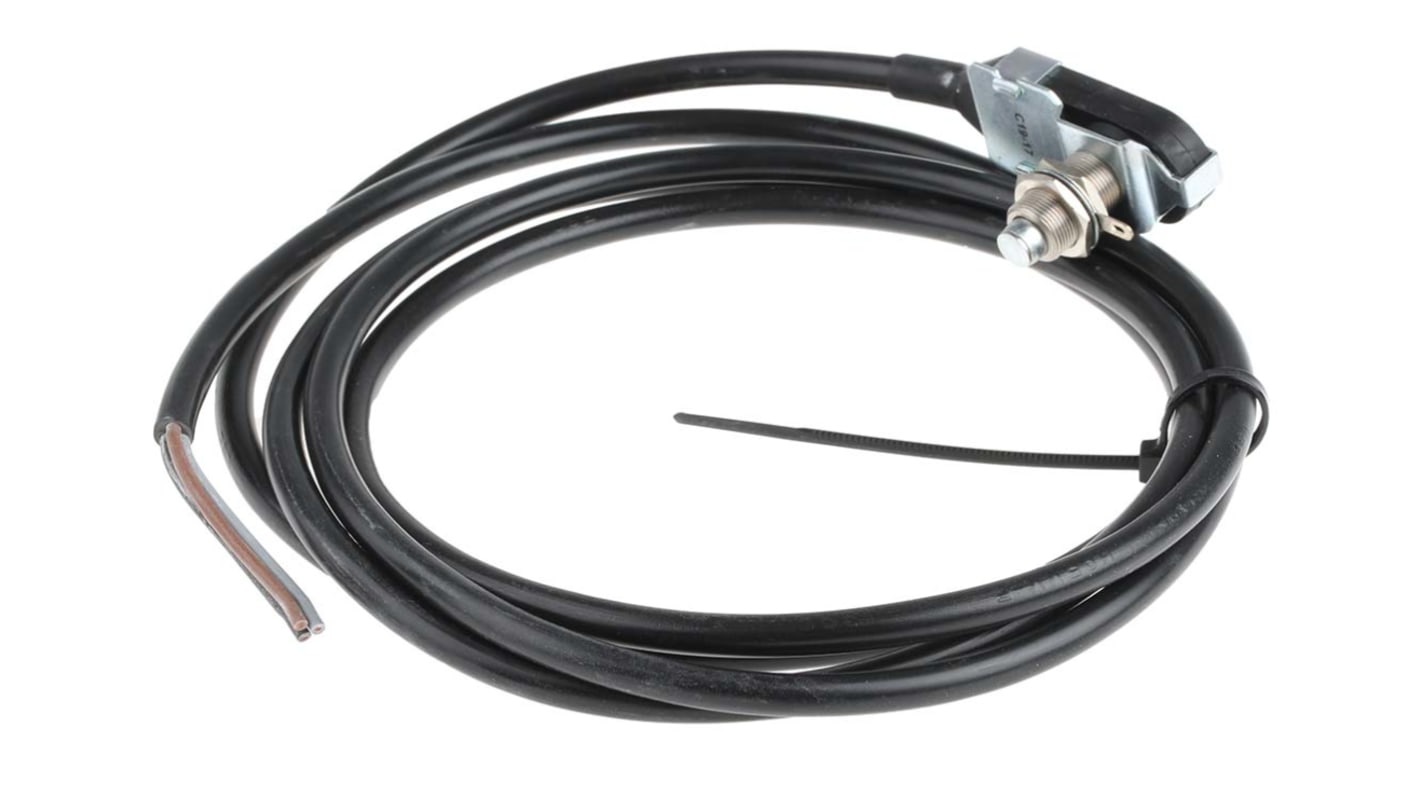

Crouzet 83733 Series Plunger Limit Switch, 1 NO/1 NC, IP56, 250V ac, 5A
- RS Stock No.:
- 539-296
- Mfr. Part No.:
- 83733327
- Brand:
- Crouzet
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$133.11
(exc. GST)
$146.42
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 79 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 5 | $133.11 |
| 6 - 11 | $130.79 |
| 12 + | $128.19 |
*price indicative
- RS Stock No.:
- 539-296
- Mfr. Part No.:
- 83733327
- Brand:
- Crouzet
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Actuator Type | Plunger | |
| Product Type | Limit Switch | |
| IP Rating | IP56 | |
| Contact Configuration | 1 NO/1 NC | |
| Contact Type | Single Break | |
| Terminal Type | Wire | |
| Switching Current | 5A | |
| Series | 83733 | |
| Minimum Operating Temperature | -5°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C | |
| Depth | 24.5mm | |
| Standards/Approvals | CSA | |
| Width | 49mm | |
| Length | 36mm | |
| Hazardous Area Certification | NO | |
| Mounting Orientation | Top | |
| Operating Force | 6N | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Actuator Type Plunger | ||
Product Type Limit Switch | ||
IP Rating IP56 | ||
Contact Configuration 1 NO/1 NC | ||
Contact Type Single Break | ||
Terminal Type Wire | ||
Switching Current 5A | ||
Series 83733 | ||
Minimum Operating Temperature -5°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 70°C | ||
Depth 24.5mm | ||
Standards/Approvals CSA | ||
Width 49mm | ||
Length 36mm | ||
Hazardous Area Certification NO | ||
Mounting Orientation Top | ||
Operating Force 6N | ||
Mechanical Life 1000000Cycles | ||
- COO (Country of Origin):
- MA
Thermal current (Ith) 12 A
Assigned operating current (Ie) 5A at 250V
Minimum operating travel of 0.2mm
Temperature range -5 to +70 deg C
3 Terminal single pole form C changeover contacts
0.5M 3 core cable fitted, 0.75mm2 conductors
Hermetically sealed pushbutton limit switch, NO/NC
Mechanical life 1 000 000 operations
Approvals
CSA
