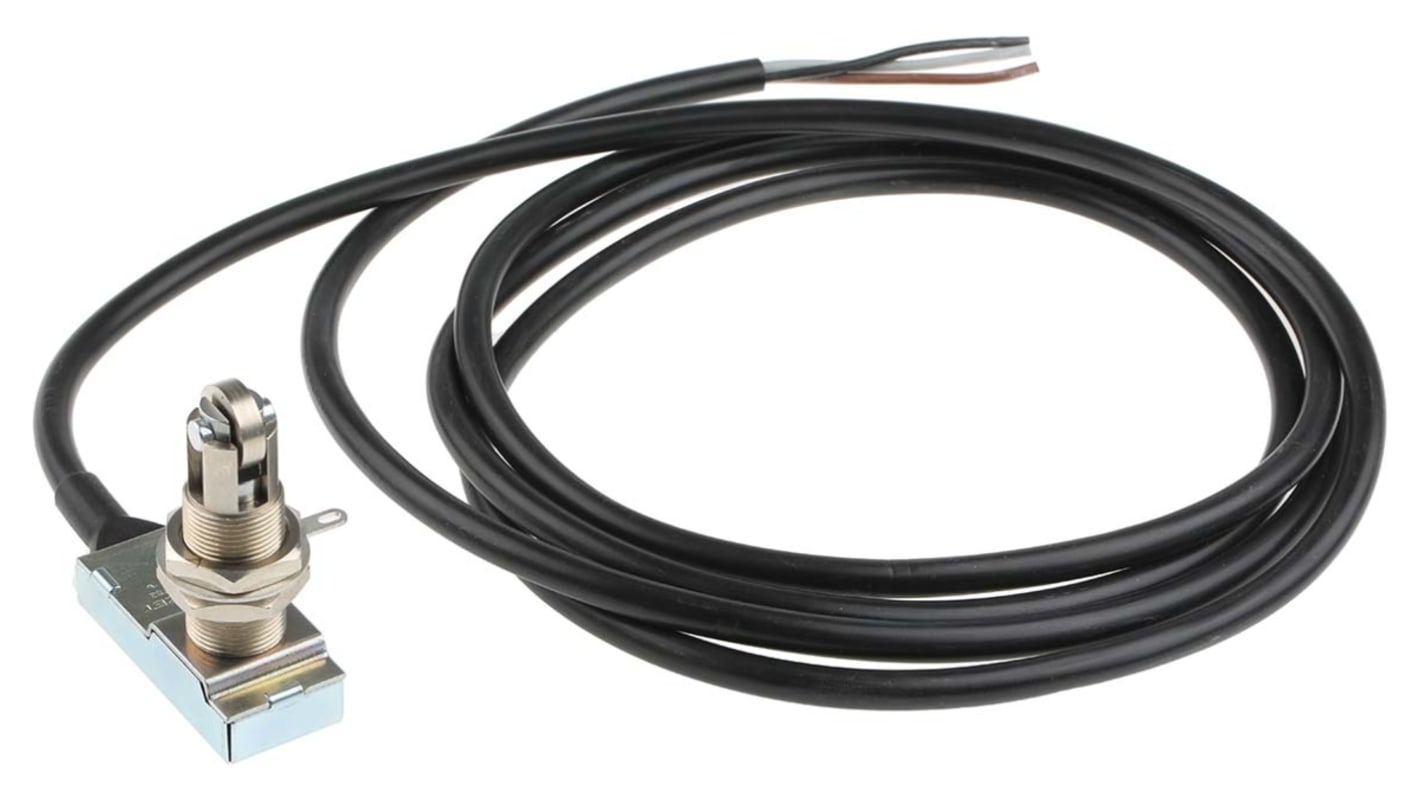

Crouzet 83732 Series Roller Plunger Limit Switch, 1 NO/1 NC, IP56, 250V ac, 5A
- RS Stock No.:
- 539-208
- Distrelec Article No.:
- 304-10-167
- Mfr. Part No.:
- 83732329
- Brand:
- Crouzet
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$155.16
(exc. GST)
$170.68
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 5 | $155.16 |
| 6 - 11 | $151.25 |
| 12 + | $150.38 |
*price indicative
- RS Stock No.:
- 539-208
- Distrelec Article No.:
- 304-10-167
- Mfr. Part No.:
- 83732329
- Brand:
- Crouzet
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Product Type | Limit Switch | |
| Actuator Type | Roller Plunger | |
| IP Rating | IP56 | |
| Contact Configuration | 1 NO/1 NC | |
| Contact Type | Single Break | |
| Terminal Type | Cable | |
| Switching Current | 5A | |
| Series | 83732 | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 49.5mm | |
| Depth | 22mm | |
| Width | 49mm | |
| Standards/Approvals | CSA | |
| Hazardous Area Certification | NO | |
| Operating Force | 15N | |
| Mounting Orientation | Top | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Product Type Limit Switch | ||
Actuator Type Roller Plunger | ||
IP Rating IP56 | ||
Contact Configuration 1 NO/1 NC | ||
Contact Type Single Break | ||
Terminal Type Cable | ||
Switching Current 5A | ||
Series 83732 | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 70°C | ||
Length 49.5mm | ||
Depth 22mm | ||
Width 49mm | ||
Standards/Approvals CSA | ||
Hazardous Area Certification NO | ||
Operating Force 15N | ||
Mounting Orientation Top | ||
Mechanical Life 1000000Cycles | ||
Thermal current (Ith) 12 A
Assigned operating current (Ie) 5A at 250V
Minimum operating travel of 0.2mm
Temperature range -5 to +70 deg C
3 Terminal single pole form C changeover contacts
0.5M 3 core cable fitted, 0.75mm2 conductors
Hermetically sealed pushbutton limit switch, NO/NC
Mechanical life 1 000 000 operations
Approvals
CSA
