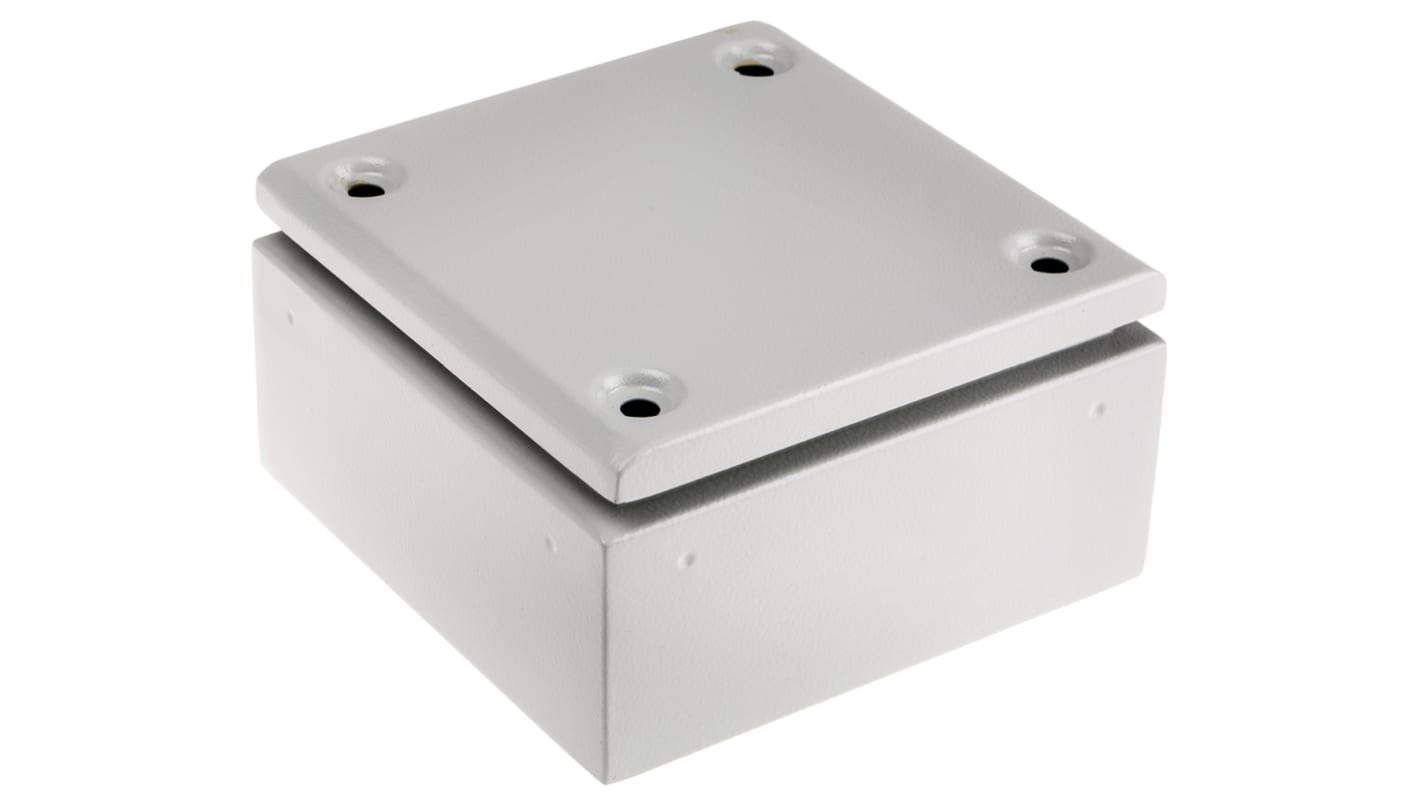

Schneider Electric Spacial SBM Series Steel Wall Box, IP66, 150 mm x 150 mm x 80mm
- RS Stock No.:
- 783-9256
- Mfr. Part No.:
- NSYSBM15158
- Brand:
- Schneider Electric
106 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$306.36
(exc. GST)
$337.00
(inc. GST)
Units | Per unit |
---|---|
1 - 2 | $306.36 |
3 + | $297.80 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 783-9256
- Mfr. Part No.:
- NSYSBM15158
- Brand:
- Schneider Electric
Technical data sheets
Legislation and Compliance
Product Details
Spacial SBM Industrial Boxes
The Spacial SBM steel enclosures from Schneider Electric are available in three versions and are designed for use in industrial machine and building applications.
The wall mounting enclosures have a single piece rectangular body with folded gutters in the front and 2 (or 3*) drilled profiles for installing mounting plates and DIN rails in the rear, fixing centres of 12.5 mm.
The enclosure cover is equipped with a polyurethane sealing gasket and 2, 3, 4 or 6 half-turn threaded screws, depending on the version (**). An M6 x 16 earth stud is welded in the cover to provide equipotential connection with the body.
The wall mounting enclosures have a single piece rectangular body with folded gutters in the front and 2 (or 3*) drilled profiles for installing mounting plates and DIN rails in the rear, fixing centres of 12.5 mm.
The enclosure cover is equipped with a polyurethane sealing gasket and 2, 3, 4 or 6 half-turn threaded screws, depending on the version (**). An M6 x 16 earth stud is welded in the cover to provide equipotential connection with the body.
Features and Benefits
• 28 sizes available increasing to 42 by using the extension box accessory
• 80mm and 120mm depths available, with or without pre-built FL 21 cable entries
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of up to IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Can be Installed with just a screwdriver
• Direct fixing though the rear or with external mounting lugs
• Protected inside and outside with polyester grey paint, RAL 7035
• Attractive and tough design for protection of sensitive electronics
• 80mm and 120mm depths available, with or without pre-built FL 21 cable entries
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of up to IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Can be Installed with just a screwdriver
• Direct fixing though the rear or with external mounting lugs
• Protected inside and outside with polyester grey paint, RAL 7035
• Attractive and tough design for protection of sensitive electronics
Typical Applications
The Spacial SDB range from Schneider are suitable for use in underground parking, road and railway tunnels.
Note
(*) 3 profiles for width 800 mm, (**) 2 for Bus box (3 screws for width greater than 400 mm), 4 for Flat and Entry boxes (6 screws for width greater than 400 mm).
Schneider Electric NSYSBM15158 wall mounting enclosures
This wall box by Schneider Electric is a durable and reliable solution for industrial applications. Its steel construction and IP66 rating ensure protection against harsh environments. It is known for its high-quality products, making this wall box a top choice for various industries.
Features & Benefits
• Made of sturdy steel material for long-lasting durability
• IP66 rating provides protection against dust and water ingress
• Removable cover for easy access to internal components
• Grey colour and sleek design for a professional look
• IP66 rating provides protection against dust and water ingress
• Removable cover for easy access to internal components
• Grey colour and sleek design for a professional look
What are the external dimensions?
• Ideal for outdoor installations due to its IP66 rating
• Used in automation, electronics, and electrical industries
• Suitable for small wall box dimensions requirements
• Can be used for mounting on walls with its wall-mounted design
• Used in automation, electronics, and electrical industries
• Suitable for small wall box dimensions requirements
• Can be used for mounting on walls with its wall-mounted design
NSYSBM15158 has external dimensions of 150 x 150 x 80 mm.
What is supplied?
The NSYSBM15158 enclosure is supplied with a steel body, 1 cover with a half turn metal screw and 4 cover screws.
Can the wall box be used outside?
The NSYSBM15158 has an Ingress Protection rating of IP66 so can be used inside or outside.
What type of lock does it have?
The enclosure has an outside sealed area: PZ2 screwdriver captive screw
Can the cover be easily removed for maintenance purposes?
Yes, the removable cover allows for easy access to internal components.
Does it come with a fixing kit for installation?
No, the wall box does not include a fixing kit but is designed for easy wall mounting.
Standards
IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage.
Specifications
Attribute | Value |
---|---|
External Height | 150 mm |
External Width | 150 mm |
External Depth | 80mm |
Body Material | Steel |
Transparent Door | No |
IP Rating | IP66 |
Chassis Plate | No |
Door Lock Type | Screw |
Gland Plate | No |
Colour | Grey |
RAL Code | RAL 7035 |
Series | Spacial SBM |
Better World Verification | Green Premium |
Better World Product | Yes |
External Mounting Type | Bracket |
Special Features | Removable Cover |
Internal Mounting Type | Panel |
IK Rating | IK10 |
Fixing Kit | No |
