- RS Stock No.:
- 783-9265
- Mfr. Part No.:
- NSYSBM15208
- Brand:
- Schneider Electric
17 In AU stock for next working day delivery
52 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$183.14
(exc. GST)
$201.45
(inc. GST)
Units | Per unit |
1 - 2 | $183.14 |
3 + | $178.02 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 783-9265
- Mfr. Part No.:
- NSYSBM15208
- Brand:
- Schneider Electric
Legislation and Compliance
Product Details

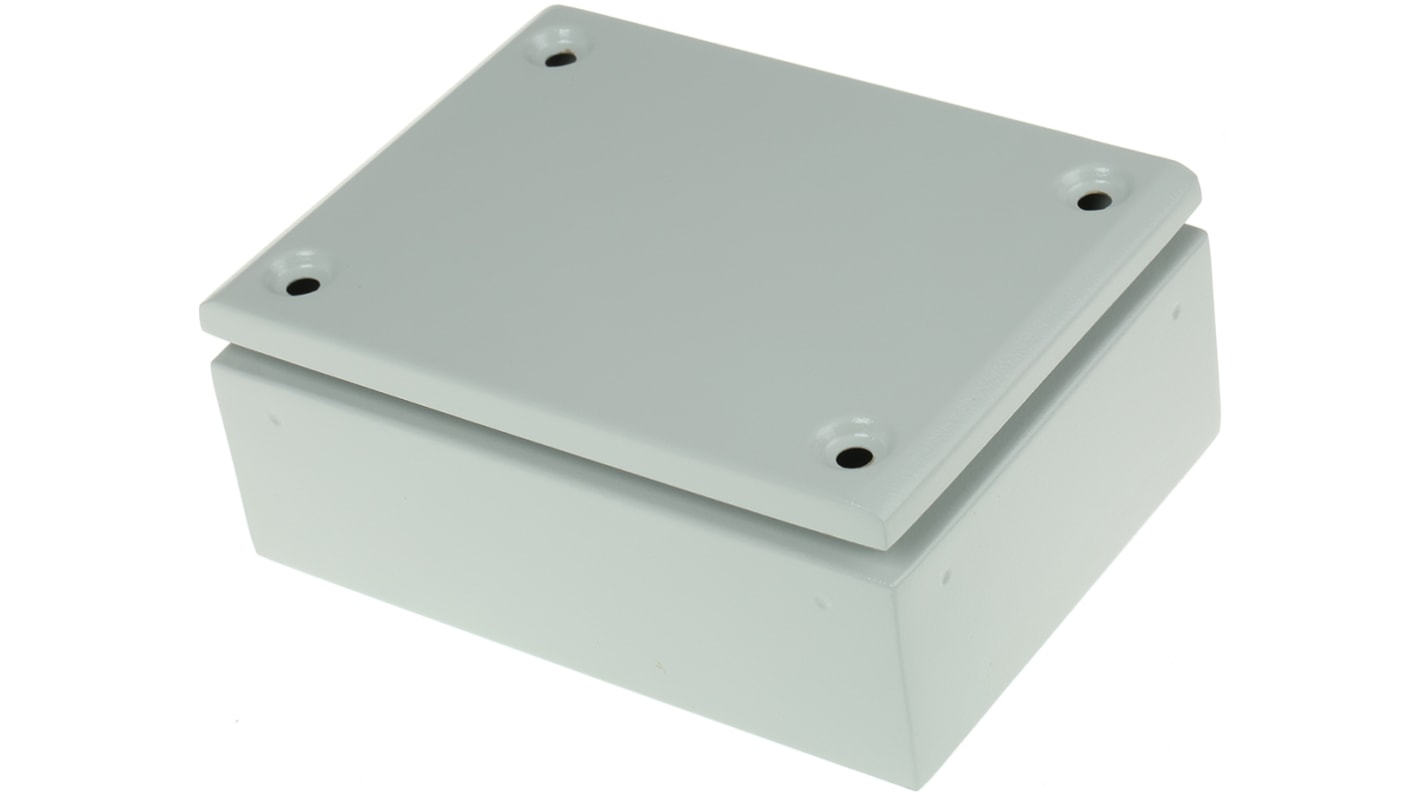

Schneider Electric NSYSBM15208 wall mounting enclosures
Use this hardwearing wall box from Schneider Electric to protect your electrical components from impact and contamination. It's made from durable steel and its epoxy-polyester powder surface finish means it's resistant to corrosion, so you can rely on it for long-term use. You'll find the box is easy to install with a simple screwdriver, and it has a protective cover that latches onto it via captive screws to prevent tampering. Its unobtrusive design makes this wall box a popular choice for public areas like shopping centres and schools.
• Compact dimensions of 80 (depth) x 150 (length) x 200mm (width) to save space
• Wide operating temperature range of -35°C to +80°C for use in harsh environments
• Mechanical impact resistance of up to IK10 (20 joules) keeps contents protected in harsh conditions
• Wide operating temperature range of -35°C to +80°C for use in harsh environments
• Mechanical impact resistance of up to IK10 (20 joules) keeps contents protected in harsh conditions
What are the external dimensions?
• Underground parking systems
• Railway tunnels
• Railway tunnels
NSYSBM15208 has external dimensions of 150 x 200 x 80 mm.
What is supplied?
The NSYSBM15208 enclosure is supplied with a steel body, 1 cover with a half turn metal screw and 4 cover screws.
Can the wall box be used outside?
The NSYSBM15208 has an Ingress Protection rating of IP66 so can be used inside or outside.
What type of lock does it have?
The enclosure has an outside sealed area: PZ2 screwdriver captive screw
Standards
IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage.
Specifications
Attribute | Value |
---|---|
External Height | 150 mm |
External Width | 200 mm |
External Depth | 80mm |
Body Material | Steel |
Transparent Door | No |
IP Rating | IP66 |
Chassis Plate | No |
Door Lock Type | Screw |
Gland Plate | No |
Colour | Grey |
RAL Code | RAL 7035 |
Series | Spacial SBM |
Better World Verification | Green Premium |
External Mounting Type | Bracket |
Better World Product | Yes |
Special Features | Removable Cover |
IK Rating | IK10 |
Fixing Kit | No |
Internal Mounting Type | Panel |
