C & K Toggle Switch, PCB Mount, On-On, SPDT, Solder Terminal, 28 V dc, 125 V ac
- RS Stock No.:
- 231-2620
- Mfr. Part No.:
- E101SD1AV2BE
- Brand:
- C & K

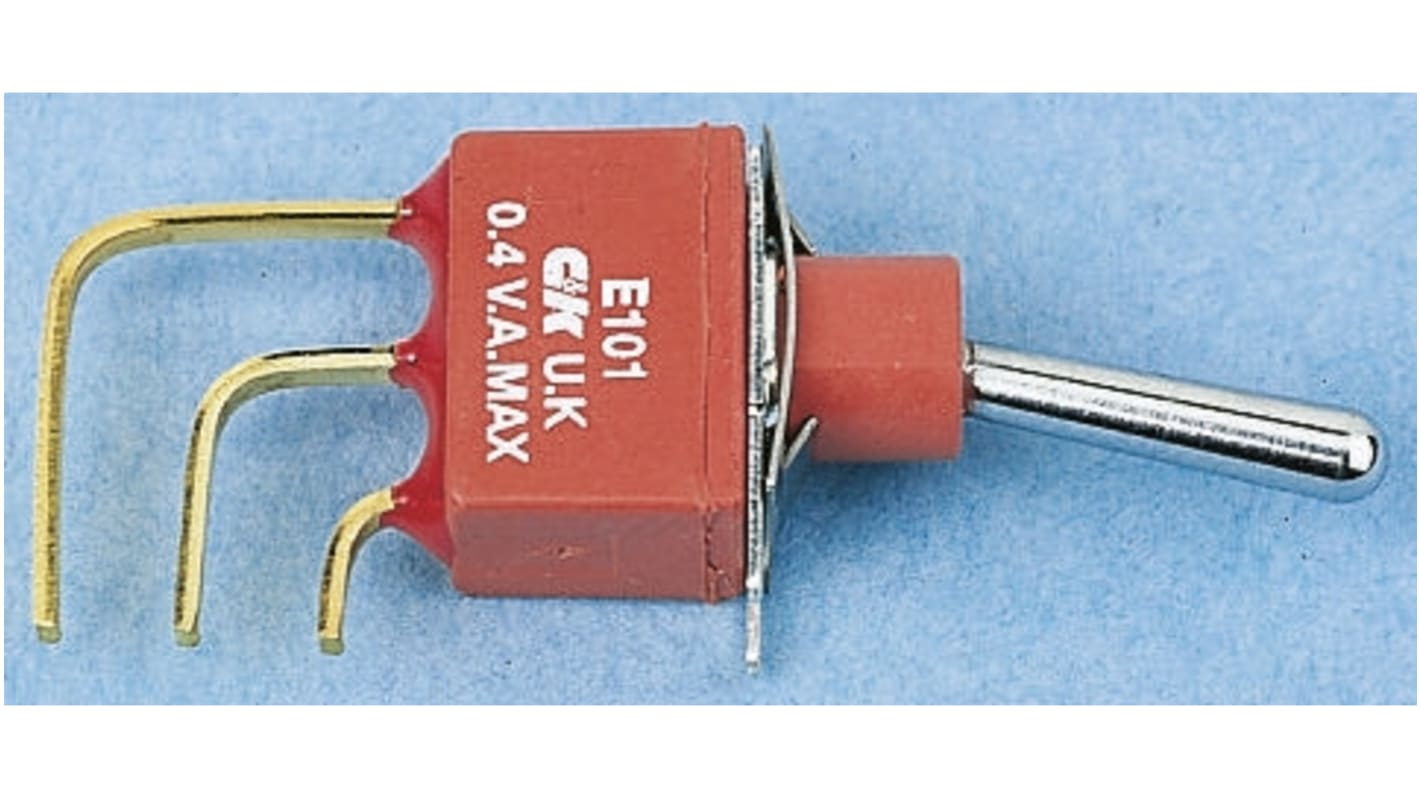

This image is representative of the product range
Subtotal (1 unit)*
$24.03
(exc. GST)
$26.43
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 58 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $24.03 |
*price indicative
- RS Stock No.:
- 231-2620
- Mfr. Part No.:
- E101SD1AV2BE
- Brand:
- C & K
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Product Type | Toggle Switch | |
| Contact Configuration | SPDT | |
| Switch Operation | On-On | |
| Switch Contact Current | 400 mA | |
| Mount Type | PCB | |
| Terminal Type | Solder | |
| IP Rating | IP57 | |
| Illuminated | No | |
| Panel Cutout Size | 6.35 mm | |
| Contact AC Voltage | 125V ac | |
| Minimum Operating Temperature | -30°C | |
| Actuator Length | 12.7mm | |
| Contact DC Voltage | 28V dc | |
| Actuator Material | Brass | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | On-On | |
| Width | 6.6 mm | |
| Height | 34.29mm | |
| Length | 12.7mm | |
| Standards/Approvals | UL, RoHS, CSA | |
| Series | E | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Product Type Toggle Switch | ||
Contact Configuration SPDT | ||
Switch Operation On-On | ||
Switch Contact Current 400 mA | ||
Mount Type PCB | ||
Terminal Type Solder | ||
IP Rating IP57 | ||
Illuminated No | ||
Panel Cutout Size 6.35 mm | ||
Contact AC Voltage 125V ac | ||
Minimum Operating Temperature -30°C | ||
Actuator Length 12.7mm | ||
Contact DC Voltage 28V dc | ||
Actuator Material Brass | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration On-On | ||
Width 6.6 mm | ||
Height 34.29mm | ||
Length 12.7mm | ||
Standards/Approvals UL, RoHS, CSA | ||
Series E | ||
E series angled switches, vertical mounting
This range of switches features the same characteristics as the horizontal version.
