MPN

C & K Toggle Switch, Panel Mount, On-Off-On, SPDT, Solder Terminal, 28 V dc, 125 V ac

RS Stock No.:: 204-7657
Mfr. Part No.:: E107SYZQE
Brand:: C & K

C & K Toggle Switch, Panel Mount, On-Off-On, SPDT, Solder Terminal, 28 V dc, 125 V ac

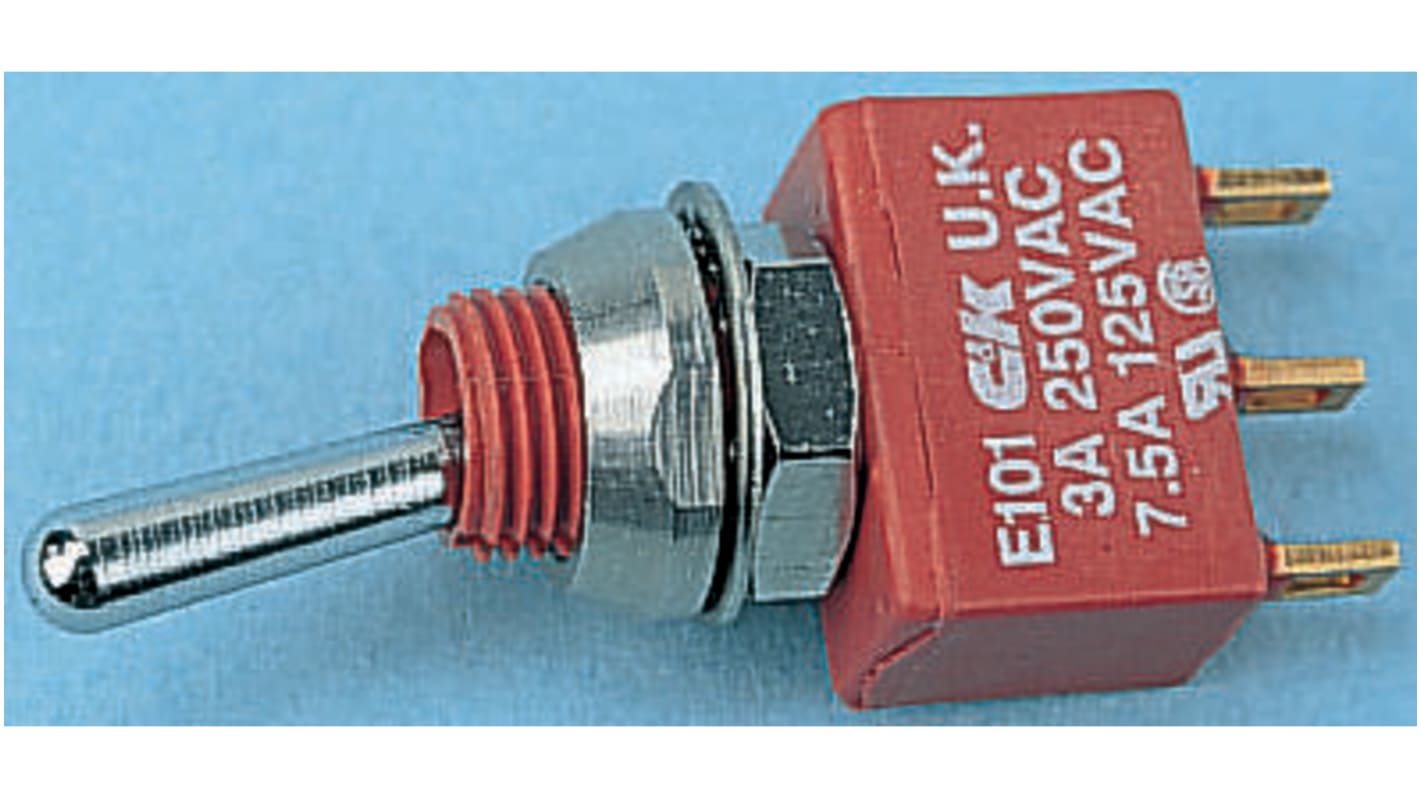

This image is representative of the product range

Bulk discount available

Subtotal (1 unit)*

$26.59

(exc. GST)

$29.25

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

6 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 49	$26.59
50 - 99	$26.12
100 - 249	$25.61
250 - 499	$25.14
500 +	$24.33

*price indicative

RS Stock No.:: 204-7657
Mfr. Part No.:: E107SYZQE
Brand:: C & K

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	C & K
	Product Type	Toggle Switch
	Contact Configuration	SPDT
	Switch Operation	On-Off-On
	Switch Contact Current	7.5A
	Mount Type	Panel
	Terminal Type	Solder
	IP Rating	IP57
	Illuminated	No
	Panel Cutout Size	6.35 mm
	Contact AC Voltage	125V ac
	Minimum Operating Temperature	-30°C
	Contact DC Voltage	28V dc
	Actuator Length	10.16mm
	Actuator Material	Brass
	Switch Configuration	On-Off-Mom
	Maximum Operating Temperature	85°C
	Standards/Approvals	UL, RoHS, CSA
	Width	6.6mm
	Series	E
	Length	12.7mm
	Height	34.29mm

	Select all
	Brand C & K
	Product Type Toggle Switch
	Contact Configuration SPDT
	Switch Operation On-Off-On
	Switch Contact Current 7.5A
	Mount Type Panel
	Terminal Type Solder
	IP Rating IP57
	Illuminated No
	Panel Cutout Size 6.35 mm
	Contact AC Voltage 125V ac
	Minimum Operating Temperature -30°C
	Contact DC Voltage 28V dc
	Actuator Length 10.16mm
	Actuator Material Brass
	Switch Configuration On-Off-Mom
	Maximum Operating Temperature 85°C
	Standards/Approvals UL, RoHS, CSA
	Width 6.6mm
	Series E
	Length 12.7mm
	Height 34.29mm

Sealed Miniature Toggle Switches

E Series - IP57 Sealed (Solder tag)

Waterproof switches with a threaded bush for panel mounting

Solder tags

Silver contacts

Brass actuator and Glass Filled Nylon 6//6 case

Note

For biased switches '(on)' refers to momentary 'on' position

Approvals

UL; CSA
