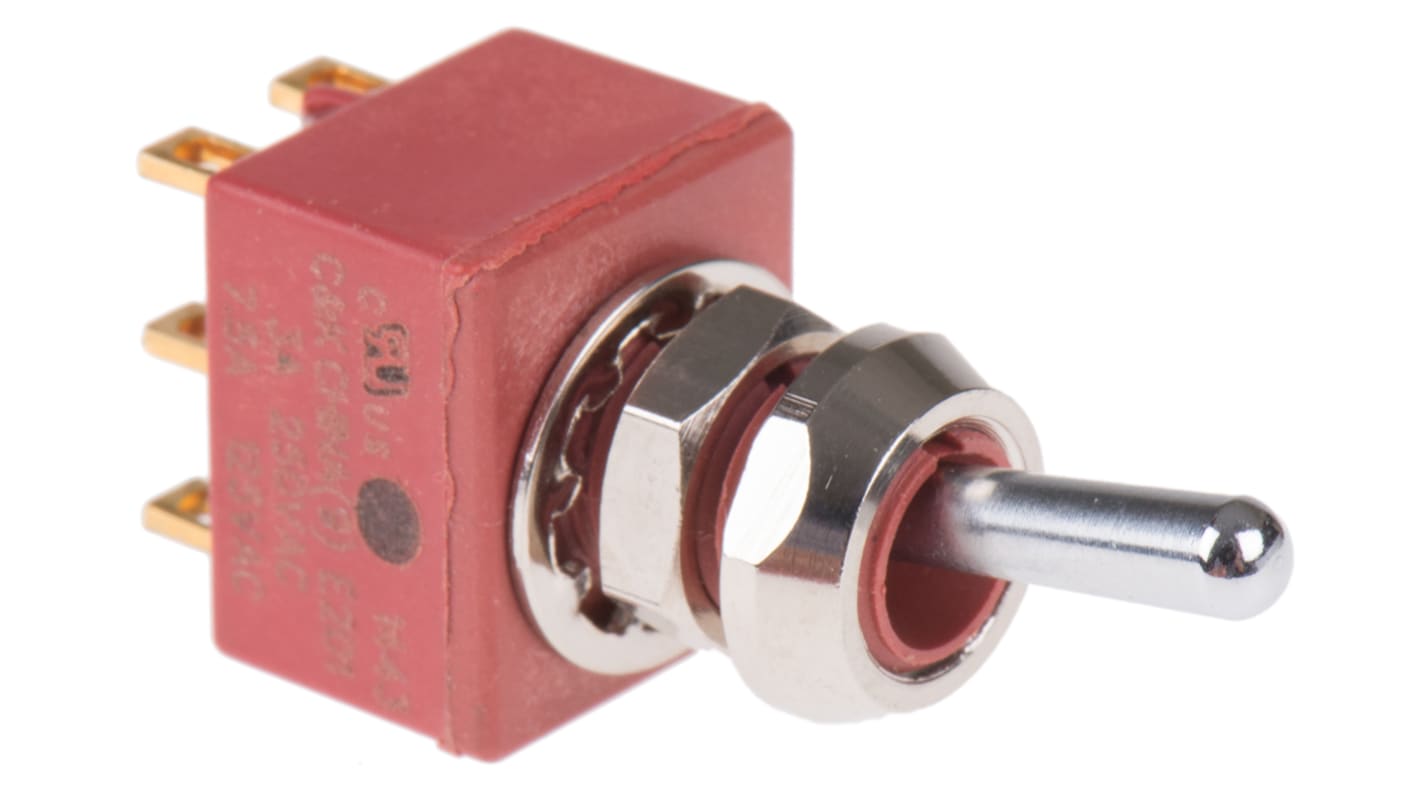

C & K Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, 28 V dc, 125 V ac
- RS Stock No.:
- 174-2430
- Distrelec Article No.:
- 302-59-708
- Mfr. Part No.:
- E201SYZQE
- Brand:
- C & K
Bulk discount available
Subtotal (1 unit)*
$21.41
(exc. GST)
$23.55
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 49 | $21.41 |
| 50 - 99 | $21.05 |
| 100 + | $20.55 |
*price indicative
- RS Stock No.:
- 174-2430
- Distrelec Article No.:
- 302-59-708
- Mfr. Part No.:
- E201SYZQE
- Brand:
- C & K
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Product Type | Toggle Switch | |
| Contact Configuration | DPDT | |
| Switch Operation | On-On | |
| Switch Contact Current | 7.5A | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| IP Rating | IP57 | |
| Illuminated | No | |
| Panel Cutout Size | 6.35 mm | |
| Contact AC Voltage | 125V ac | |
| Contact DC Voltage | 28V dc | |
| Minimum Operating Temperature | -30°C | |
| Actuator Length | 10.16mm | |
| Actuator Material | Brass | |
| Switch Configuration | On-On | |
| Maximum Operating Temperature | 85°C | |
| Length | 12.7mm | |
| Standards/Approvals | UL, RoHS, CSA | |
| Width | 6.6mm | |
| Height | 34.29mm | |
| Series | E | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Product Type Toggle Switch | ||
Contact Configuration DPDT | ||
Switch Operation On-On | ||
Switch Contact Current 7.5A | ||
Mount Type Panel | ||
Terminal Type Solder | ||
IP Rating IP57 | ||
Illuminated No | ||
Panel Cutout Size 6.35 mm | ||
Contact AC Voltage 125V ac | ||
Contact DC Voltage 28V dc | ||
Minimum Operating Temperature -30°C | ||
Actuator Length 10.16mm | ||
Actuator Material Brass | ||
Switch Configuration On-On | ||
Maximum Operating Temperature 85°C | ||
Length 12.7mm | ||
Standards/Approvals UL, RoHS, CSA | ||
Width 6.6mm | ||
Height 34.29mm | ||
Series E | ||
E Series - IP57 Sealed (Solder tag)
Waterproof switches with a threaded bush for panel mounting
Solder tags
Silver contacts
Brass actuator and Glass Filled Nylon 6//6 case
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
UL; CSA
