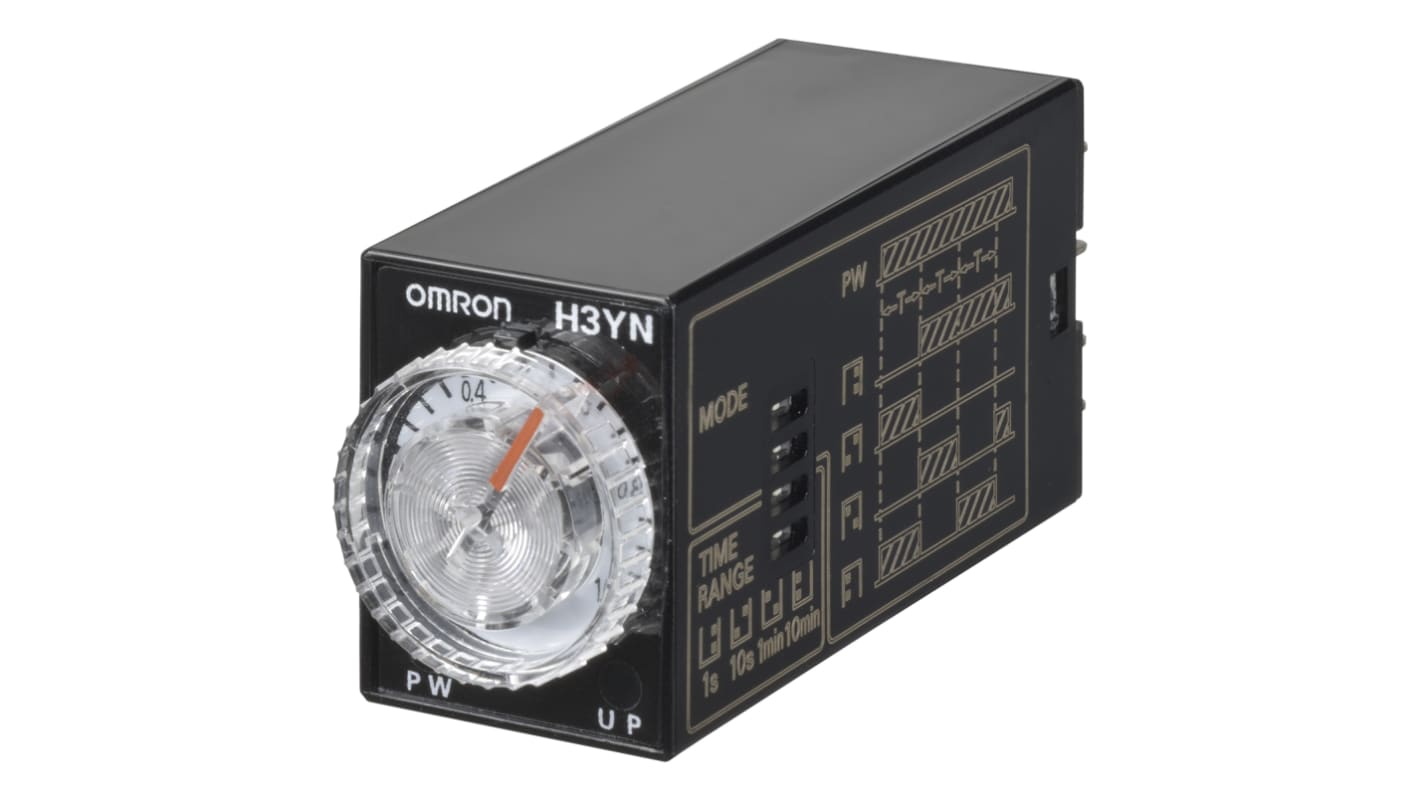

Name: Omron H3YN Series DIN Track Solid State Timer, 4-Contact, 125 V dc 24V ac, 0.1 min to 10 h, Multifunction-Function, DPDT
Brand: Omron
SKU: 106-6258
Price: 165.72 AUD
Availability: OutOfStock

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Solid State Timer
	Function	Timer
	Mount Type	DIN Track
	Time Range	0.1 min to 10 h
	Number of Contacts	4
	Switching Voltage	250V ac
	Number of Timer Functions	Multifunction
	Contact Configuration	DPDT
	IP Rating	IP40
	Supply AC Voltage	24V ac
	Minimum Operating Temperature	-10°C
	Contact Current	5A
	Supply DC Voltage	125 V dc
	Terminal Type	Push-in
	Maximum Operating Temperature	55°C
	Standards/Approvals	CSA C22.2 No. 14, CCC, UL 508, EN 61812-1, Lloyds, IEC 60664-1, CE
	Width	56.6mm
	Height	28mm
	Length	21.5mm
	Series	H3YN

	Select all
	Brand Omron
	Product Type Solid State Timer
	Function Timer
	Mount Type DIN Track
	Time Range 0.1 min to 10 h
	Number of Contacts 4
	Switching Voltage 250V ac
	Number of Timer Functions Multifunction
	Contact Configuration DPDT
	IP Rating IP40
	Supply AC Voltage 24V ac
	Minimum Operating Temperature -10°C
	Contact Current 5A
	Supply DC Voltage 125 V dc
	Terminal Type Push-in
	Maximum Operating Temperature 55°C
	Standards/Approvals CSA C22.2 No. 14, CCC, UL 508, EN 61812-1, Lloyds, IEC 60664-1, CE
	Width 56.6mm
	Height 28mm
	Length 21.5mm
	Series H3YN

Datasheet

COO (Country of Origin):: CN

Omron H3YN Series Solid State Timer, 0.1min-10h Time Range, DPDT Contact Configuration - H3YN-21-B DC24

This solid-state timer is a compact, DIN-rail mounted timing device designed for control-panel and automation installations. It provides programmable time-delay functions over a wide span for sequencing, interlocking and time-dependent control tasks in electrical and mechanical systems while operating within typical industrial ambient conditions.

Features and Benefits:

• Time range 0.1min-10h for flexible delay settings
• DPDT four-contact output enabling independent switching paths
• 5A contact current to handle common control loads
• Push-in terminals for Rapid wiring and maintenance
• Accepts 24VAC and 125VDC supplies for varied power schemes
• IP40 protection suitable for enclosed panel installations

Applications

• Suitable for conveyor motor start sequencing in factories
• Ideal for machine-cycle timing and process delays
• Used for staged lighting control in industrial buildings
• Can be used for safety interlock delay operations
• Used with PLCs for auxiliary timing and fault-reset routines

What approvals does it carry for industrial use?

It meets multiple standards including UL508, CSA C22.2 No.14, EN61812-1 and IEC60664-1 which align with many industrial electrical safety and functional requirements.

What environmental temperature range can I expect reliable operation in?

It is rated to function between -10°C and 55°C, supporting typical indoor plant and control-panel ambient conditions.

How is the device mounted and integrated into panels?

The unit clips to standard DIN rail for straightforward installation and integrates with customary control wiring via push-in terminals.

What mechanical size should I allow for panel layout?

Allow for a width of 56.6mm and a Compact overall footprint to assist dense panel designs.

What switching capability does the output provide for mixed-voltage circuits?

The output is rated for switching up to 250VAC and can be used with the specified supply voltages for a range of control circuits.

Omron H3YN Series DIN Track Solid State Timer, 4-Contact, 125 V dc 24V ac, 0.1 min to 10 h, Multifunction-Function, DPDT
