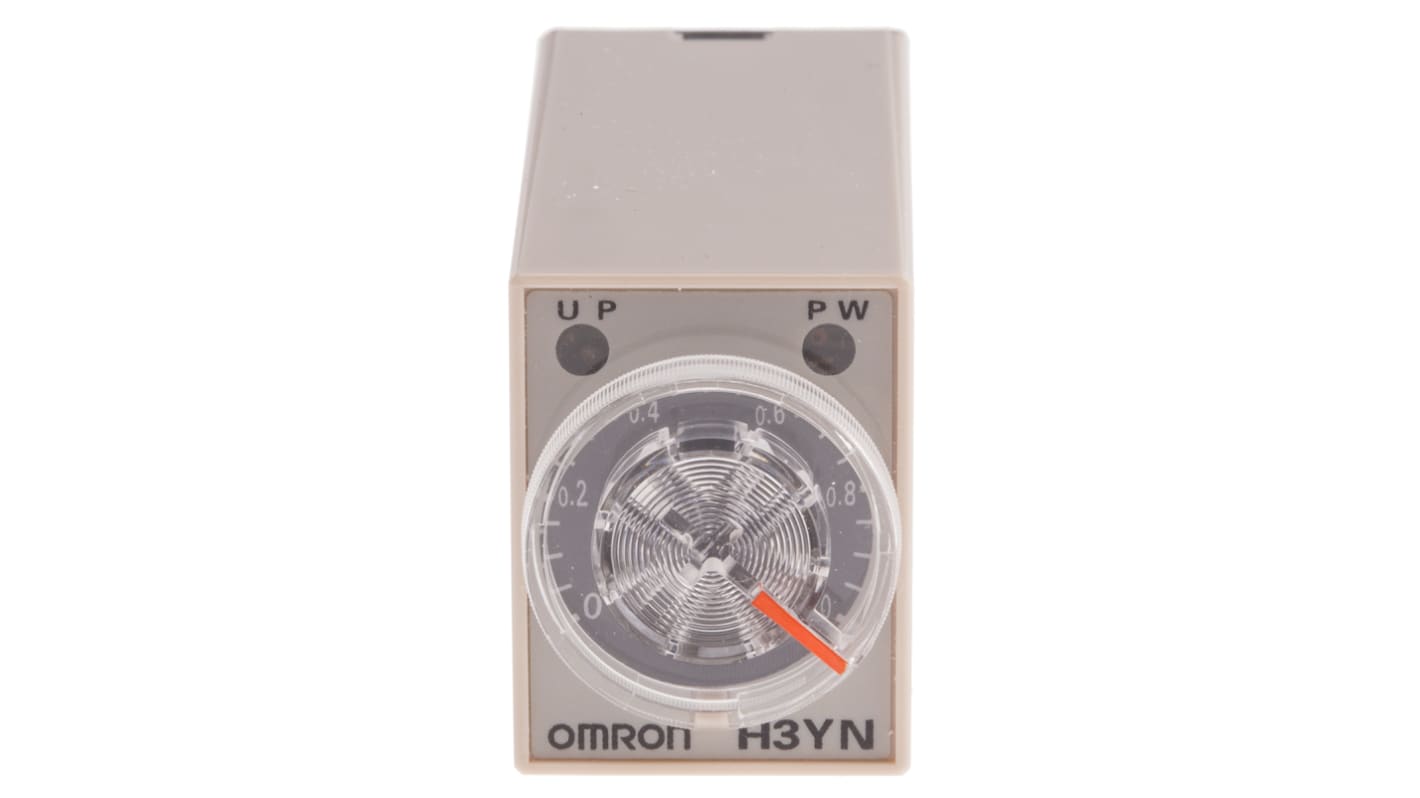

Omron H3YN Series DIN Rail, Panel Mount Timer Relay, 24V ac, 2-Contact, 0.1 min → 10h

RS Stock No.:: 236-1341
Mfr. Part No.:: H3YN-21 AC24
Brand:: Omron

Omron H3YN Series DIN Rail, Panel Mount Timer Relay, 24V ac, 2-Contact, 0.1 min → 10h

1 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$159.84

(exc. GST)

$175.82

(inc. GST)

Units	Per unit
1 - 2	$159.84
3 - 4	$155.37
5 +	$149.00

RS Stock No.:: 236-1341
Mfr. Part No.:: H3YN-21 AC24
Brand:: Omron

CSA LR22310-120
Brochure - H3Y

Attribute	Value
Supply Voltage	24V ac
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Time Range	0.1 min → 10h
Number of Contacts	2
Number of Timer Functions	Multi Function
Time Increment	Hours, Minutes
Maximum Current	5A
Maximum Voltage	250V ac
Switch Configuration	DPDT
Terminal Type	Socket
Power Supply	External
Width	21.5mm
Maximum Operating Temperature	+50°C
Series	H3YN
Length	28mm
Depth	63mm
Time Delay	0.1s
Minimum Operating Temperature	-10°C

Omron H3YN Series DIN Rail, Panel Mount Timer Relay, 24V ac, 2-Contact, 0.1 min → 10h

H3YN - DPDT
