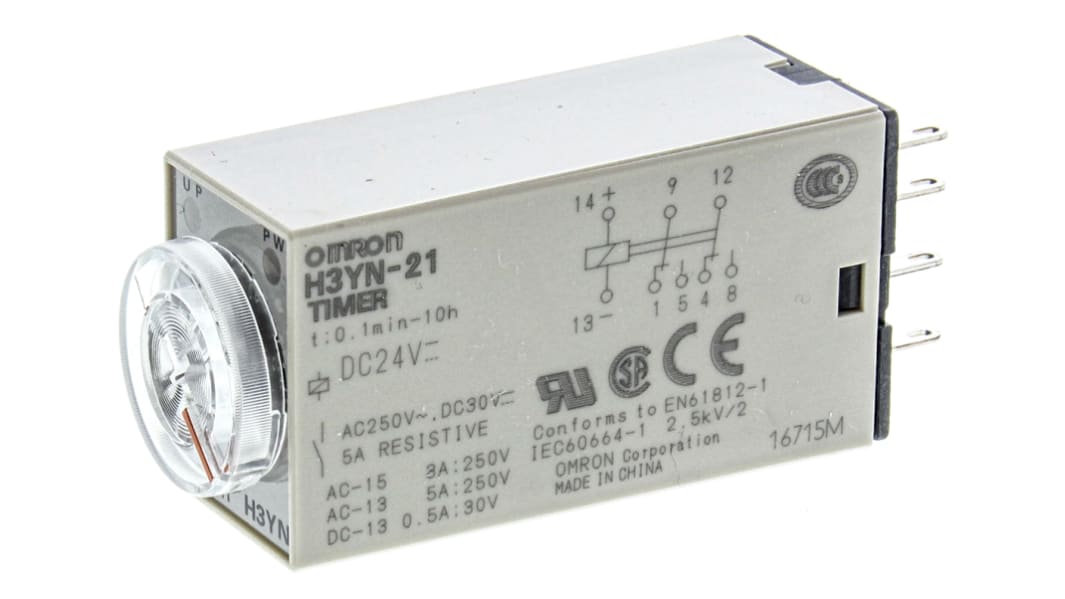

Omron H3YN Series DIN Rail, Panel Mount Timer Relay, 24V dc, 2-Contact, 0.1 min → 10h

RS Stock No.:: 236-1335
Mfr. Part No.:: H3YN-21 DC24
Brand:: Omron

Omron H3YN Series DIN Rail, Panel Mount Timer Relay, 24V dc, 2-Contact, 0.1 min → 10h

29 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$171.33

(exc. GST)

$188.46

(inc. GST)

Units	Per unit
1 - 2	$171.33
3 - 4	$166.58
5 +	$159.72

RS Stock No.:: 236-1335
Mfr. Part No.:: H3YN-21 DC24
Brand:: Omron

Technical data sheets

Legislation and Compliance

Product Details

H3YN - DPDT

Functions - 143,453,611,612
Multiple functions, multiple time ranges
Electrical life: 500000 operations at rated load

Standards

VDE0435/P2021, EN 50081-2, EN 50082-2

Approvals

UL, CSA

Specifications

Attribute	Value
Supply Voltage	24V dc
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Time Range	0.1 min → 10h
Number of Contacts	2
Number of Timer Functions	Multi Function
Time Increment	Hours, Minutes
Maximum Current	5A
Maximum Voltage	250V ac
Terminal Type	Socket
Switch Configuration	DPDT
Power Supply	External
Width	21.5mm
Length	28mm
Depth	63mm
Series	H3YN
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C
Time Delay	0.1s
