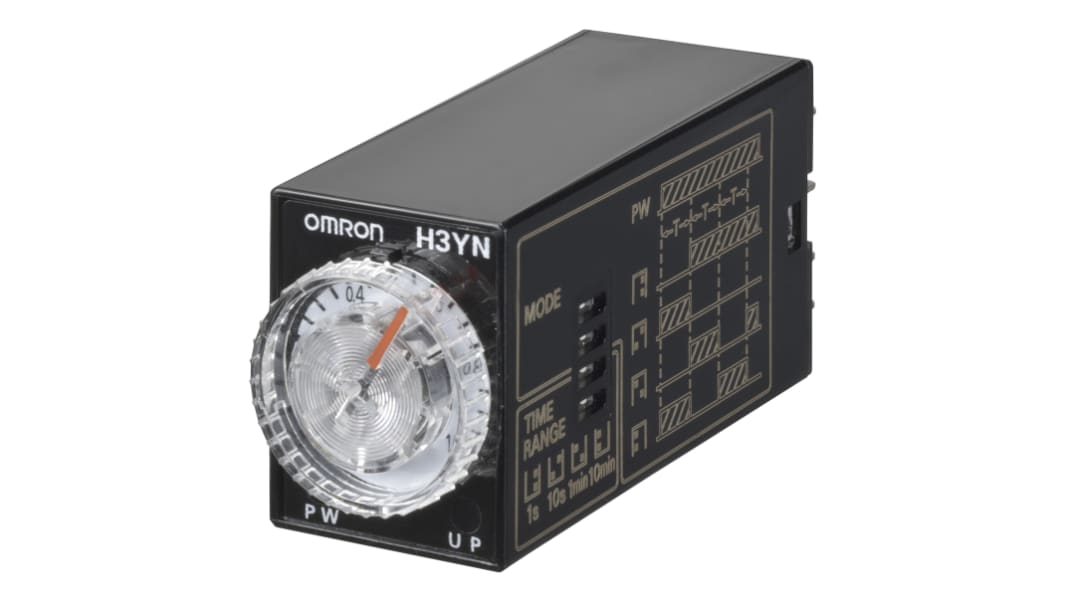

Omron H3YN Series DIN Track Solid State Timer, 4-Contact, 125 V dc 24V ac, 0.1 s to 10 min, Multifunction-Function, DPDT

RS Stock No.:: 106-6250
Mfr. Part No.:: H3YN-2-B AC24
Brand:: Omron

Omron H3YN Series DIN Track Solid State Timer, 4-Contact, 125 V dc 24V ac, 0.1 s to 10 min, Multifunction-Function, DPDT

Subtotal (1 unit)*

$165.72

(exc. GST)

$182.29

(inc. GST)

FREE delivery for orders over $80.00 ex GST

Limited stock

Plus 2 left, shipping from 13 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$165.72

*price indicative

RS Stock No.:: 106-6250
Mfr. Part No.:: H3YN-2-B AC24
Brand:: Omron

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Solid State Timer
	Mount Type	DIN Track
	Function	Timer
	Time Range	0.1 s to 10 min
	Number of Contacts	4
	Number of Timer Functions	Multifunction
	Switching Voltage	250V ac
	Contact Configuration	DPDT
	IP Rating	IP40
	Supply AC Voltage	24V ac
	Contact Current	5A
	Supply DC Voltage	125 V dc
	Minimum Operating Temperature	-10°C
	Terminal Type	Push-in
	Maximum Operating Temperature	55°C
	Height	28mm
	Length	21.5mm
	Standards/Approvals	IEC 60664-1, CCC, CSA C22.2 No. 14, Lloyds, EN 61812-1, CE, UL 508
	Width	56.6mm
	Series	H3YN

	Select all
	Brand Omron
	Product Type Solid State Timer
	Mount Type DIN Track
	Function Timer
	Time Range 0.1 s to 10 min
	Number of Contacts 4
	Number of Timer Functions Multifunction
	Switching Voltage 250V ac
	Contact Configuration DPDT
	IP Rating IP40
	Supply AC Voltage 24V ac
	Contact Current 5A
	Supply DC Voltage 125 V dc
	Minimum Operating Temperature -10°C
	Terminal Type Push-in
	Maximum Operating Temperature 55°C
	Height 28mm
	Length 21.5mm
	Standards/Approvals IEC 60664-1, CCC, CSA C22.2 No. 14, Lloyds, EN 61812-1, CE, UL 508
	Width 56.6mm
	Series H3YN

Datasheet

COO (Country of Origin):: CN

Omron H3YN Series Solid State Timer, 24V Supply AC Voltage, 0.1s-10min Time Range - H3YN-2-B AC24

This solid-state timer is a Compact multifunction timing relay designed for use in industrial control panels and automation systems. It delivers configurable timing from fractions of a second to minutes and connects via push-in terminals for quick installation on DIN rail. The device supports AC and DC supply options and provides multiple changeover contacts for control of loads across standard industrial voltages.

Features and Benefits:

• 0.1s-10min range enables precise timing for varied processes
• DPDT 5A contacts allow switching of moderate AC and DC loads
• Push-in terminals reduce wiring time and improve connection security
• Supports 24V AC and 125V DC supplies for flexible control inputs
• Switching capability up to 250V AC permits direct control of common circuits

Applications

• Suitable for sequencing pneumatic valve actuation in automation
• Ideal for timing control of conveyor start/stop operations
• Used with control cabinets requiring Compact relay functions
• Can be used for delay functions in motor control and interlocks
• Suitable for time-based lighting or signalling in industrial sites

What environmental temperatures can it operate within?

It operates across an ambient range from -10°C to 55°C, suitable for typical indoor industrial environments.

How is the unit mounted in control panels?

It clips onto a DIN rail, allowing standard rail mounting and straightforward replacement.

What level of ingress protection does the enclosure provide?

The housing meets IP40, providing protection against solid objects but not against water ingress.

Which standards approvals does it have for industrial use?

It carries multiple approvals including IEC, UL, CSA and EN standards, indicating conformity with electrical safety and performance criteria.
