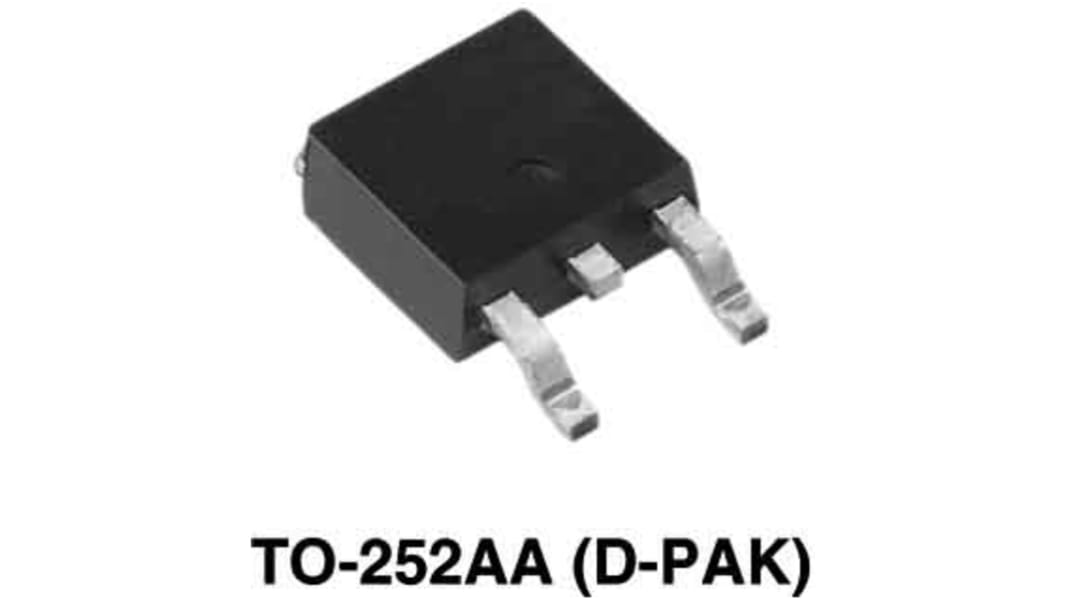

Vishay Switching Diode, 15A 600V, 3 + Tab-Pin TO-252AA VS-15EWH06FN-M3
- RS Stock No.:
- 180-7306
- Mfr. Part No.:
- VS-15EWH06FN-M3
- Brand:
- Vishay
On back order for despatch 21/08/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Pack of 10)
$1.62
(exc. GST)
$1.78
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 10 | $1.62 | $16.20 |
| 20 - 30 | $1.579 | $15.79 |
| 40 + | $1.556 | $15.56 |
| *price indicative | ||
- RS Stock No.:
- 180-7306
- Mfr. Part No.:
- VS-15EWH06FN-M3
- Brand:
- Vishay
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Hyperfast recovery time, reduced Qrr and soft recovery
175 °C maximum operating junction temperature
For PFC CRM/CCM operation
APPLICATIONS:
State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. These devices are intended for use in PFC boost stage in the AC/DC section of SMPS inverters or as freewheeling diodes. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce overdissipation in the switching element and snubbers.
175 °C maximum operating junction temperature
For PFC CRM/CCM operation
APPLICATIONS:
State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. These devices are intended for use in PFC boost stage in the AC/DC section of SMPS inverters or as freewheeling diodes. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce overdissipation in the switching element and snubbers.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Maximum Forward Current | 15A |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 600V |
| Package Type | TO-252AA |
| Pin Count | 3 + Tab |
| Maximum Diode Capacitance | 12pF |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 6.73mm |
| Width | 6.22mm |
| Height | 2.26mm |
| Dimensions | 6.73 x 6.22 x 2.26mm |
