Vishay Switching Diode, Single, 4 A, 4-Pin 600 V TO-252
- RS Stock No.:
- 180-7343
- Mfr. Part No.:
- VS-HFA04SD60S-M3
- Brand:
- Vishay

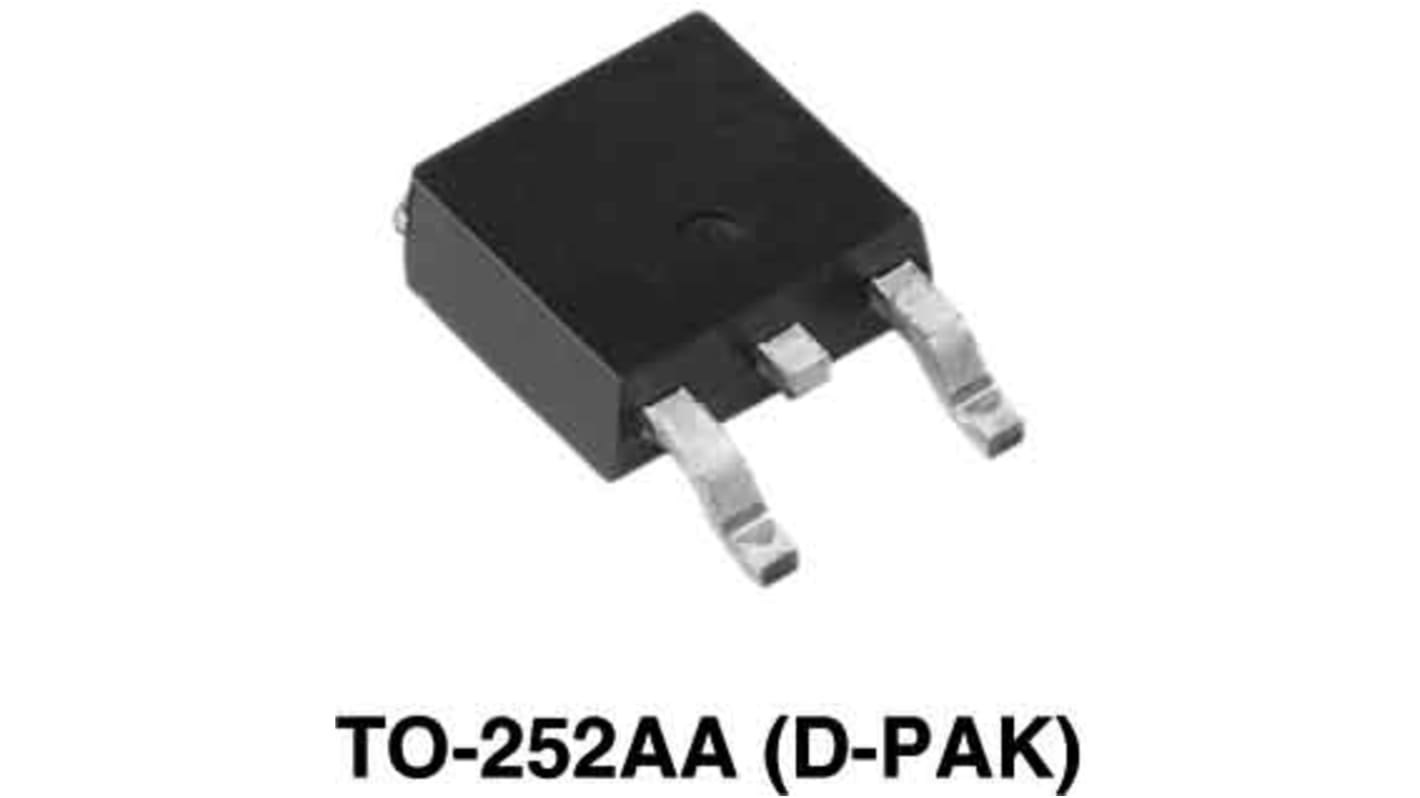

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
$20.17
(exc. GST)
$22.185
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 650 unit(s), ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 15 | $4.034 | $20.17 |
| 20 - 35 | $3.96 | $19.80 |
| 40 + | $3.888 | $19.44 |
*price indicative
- RS Stock No.:
- 180-7343
- Mfr. Part No.:
- VS-HFA04SD60S-M3
- Brand:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Switching Diode | |
| Maximum Forward Current If | 4A | |
| Diode Configuration | Single | |
| Sub Type | General Purpose Diode | |
| Mount Type | Surface | |
| Package Type | TO-252 | |
| Pin Count | 4 | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A | |
| Peak Reverse Recovery Time trr | 57ns | |
| Maximum Power Dissipation Pd | 10mW | |
| Maximum Forward Voltage Vf | 1.4V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 2.26mm | |
| Standards/Approvals | No | |
| Length | 6.73mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Switching Diode | ||
Maximum Forward Current If 4A | ||
Diode Configuration Single | ||
Sub Type General Purpose Diode | ||
Mount Type Surface | ||
Package Type TO-252 | ||
Pin Count 4 | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 600V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 25A | ||
Peak Reverse Recovery Time trr 57ns | ||
Maximum Power Dissipation Pd 10mW | ||
Maximum Forward Voltage Vf 1.4V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Height 2.26mm | ||
Standards/Approvals No | ||
Length 6.73mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
These diodes are optimized to reduce losses and EMI / RFI in high frequency power conditioning systems. The softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for freewheeling, flyback, power converters, motor drives, and other applications where high speed and reduced switching losses are design requirements.
Ultrafast recovery time
Ultrasoft recovery
Very low IRRM
APPLICATIONS:
These diodes are optimized to reduce losses and EMI / RFI in high frequency power conditioning systems. The softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for freewheeling, flyback, power converters, motor drives, and other applications where high speed and reduced switching losses are design requirements.
