Vishay Switching Diode, Single, 4 A, 4-Pin 200 V TO-252

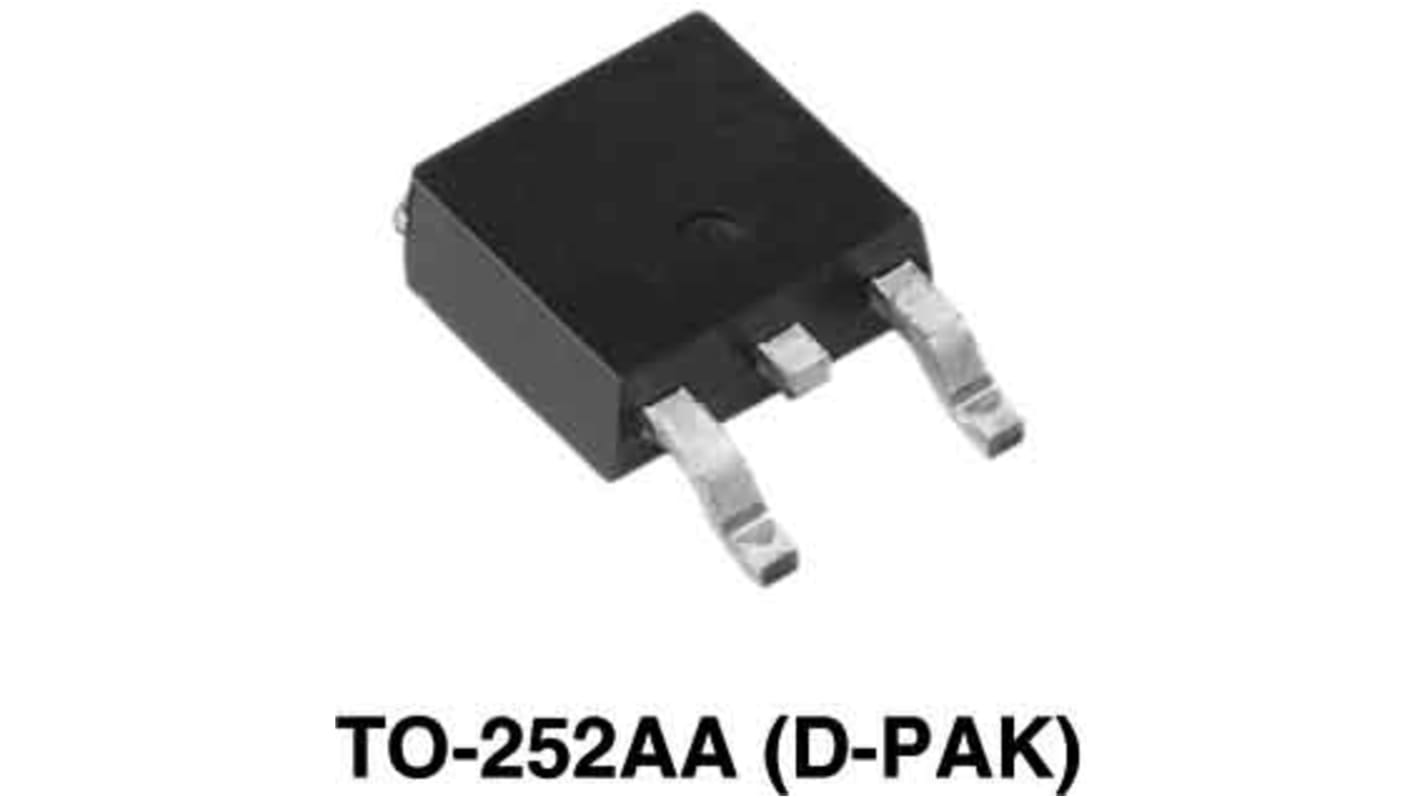

This image is representative of the product range

View all Switching Diodes

Subtotal (1 pack of 20 units)*

$11.76

(exc. GST)

$12.94

(inc. GST)

Add to Basket
Select or type quantity
Last RS stock
  • Final 560 unit(s), ready to ship from another location
Units
Per unit
Per Pack*
20 +$0.588$11.76

*price indicative

RS Stock No.:
180-7338
Mfr. Part No.:
VS-4EWH02FN-M3
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Switching Diode

Diode Configuration

Single

Maximum Forward Current If

4A

Sub Type

General Purpose Diode

Mount Type

Surface

Package Type

TO-252

Pin Count

4

Peak Reverse Recovery Time trr

27ns

Maximum Peak Reverse Repetitive Voltage Vrrm

200V

Peak Non-Repetitive Forward Surge Current Ifsm

80A

Minimum Operating Temperature

-65°C

Maximum Forward Voltage Vf

0.71V

Maximum Operating Temperature

175°C

Standards/Approvals

No

Height

2.26mm

Width

6.22 mm

Length

6.73mm

Automotive Standard

No

COO (Country of Origin):
CN
Hyperfast recovery time

175 °C max. operating junction temperature

Output rectification freewheeling

APPLICATIONS:

State of the ART hyperfast recovery rectifiers specifically designed with optimized performance of forward voltage drop and hyperfast recovery time. The Planar structure and the PLATINUM doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. These devices are intended for use in the output rectification stage of SMPS, UPS, DC/DC converters as well as freewheeling diode in low voltage inverters and chopper motor drives. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.
