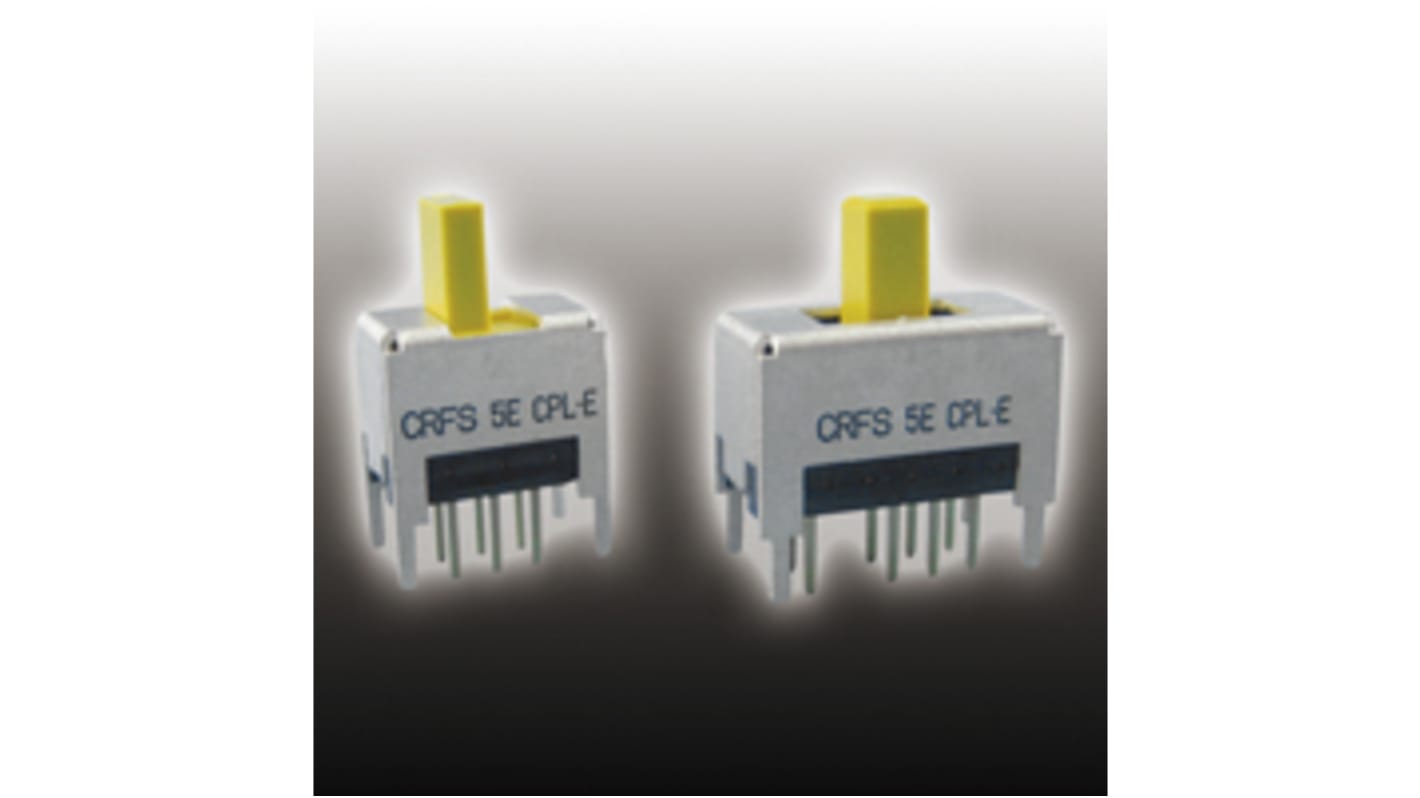

Nidec Components Through Hole Slide Switch DP3T 100 (Non-Switching) mA, 100 (Switching) mA Slide
- RS Stock No.:
- 179-6784
- Mfr. Part No.:
- CRFS-2204W
- Brand:
- Nidec Components
Bulk discount available
Subtotal (1 pack of 2 units)**
$12.71
(exc. GST)
$13.98
(inc. GST)
26 In Global stock for delivery within 5 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit | Per Pack** |
|---|---|---|
| 2 - 12 | $6.355 | $12.71 |
| 14 - 24 | $6.20 | $12.40 |
| 26 + | $6.105 | $12.21 |
**price indicative
- RS Stock No.:
- 179-6784
- Mfr. Part No.:
- CRFS-2204W
- Brand:
- Nidec Components
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Contact Configuration | DP3T | |
| Mounting Type | Through Hole | |
| Contact Current Rating | 100 (Non-Switching) mA, 100 (Switching) mA | |
| Terminal Type | PC Pin | |
| Actuator Type | Slide | |
| Length | 10mm | |
| Width | 6mm | |
| Depth | 18.5mm | |
| Dimensions | 10 x 6 x 18.5mm | |
| Contact Resistance | 70mΩ | |
| Voltage Rating | 50V dc | |
| Minimum Operating Temperature | -40°C | |
| Actuator Material | Polyamide | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Copper Alloy | |
| Operating Temperature Range | -40 → +85°C | |
Select all | ||
|---|---|---|
Brand Nidec Components | ||
Contact Configuration DP3T | ||
Mounting Type Through Hole | ||
Contact Current Rating 100 (Non-Switching) mA, 100 (Switching) mA | ||
Terminal Type PC Pin | ||
Actuator Type Slide | ||
Length 10mm | ||
Width 6mm | ||
Depth 18.5mm | ||
Dimensions 10 x 6 x 18.5mm | ||
Contact Resistance 70mΩ | ||
Voltage Rating 50V dc | ||
Minimum Operating Temperature -40°C | ||
Actuator Material Polyamide | ||
Maximum Operating Temperature +85°C | ||
Contact Material Copper Alloy | ||
Operating Temperature Range -40 → +85°C | ||
