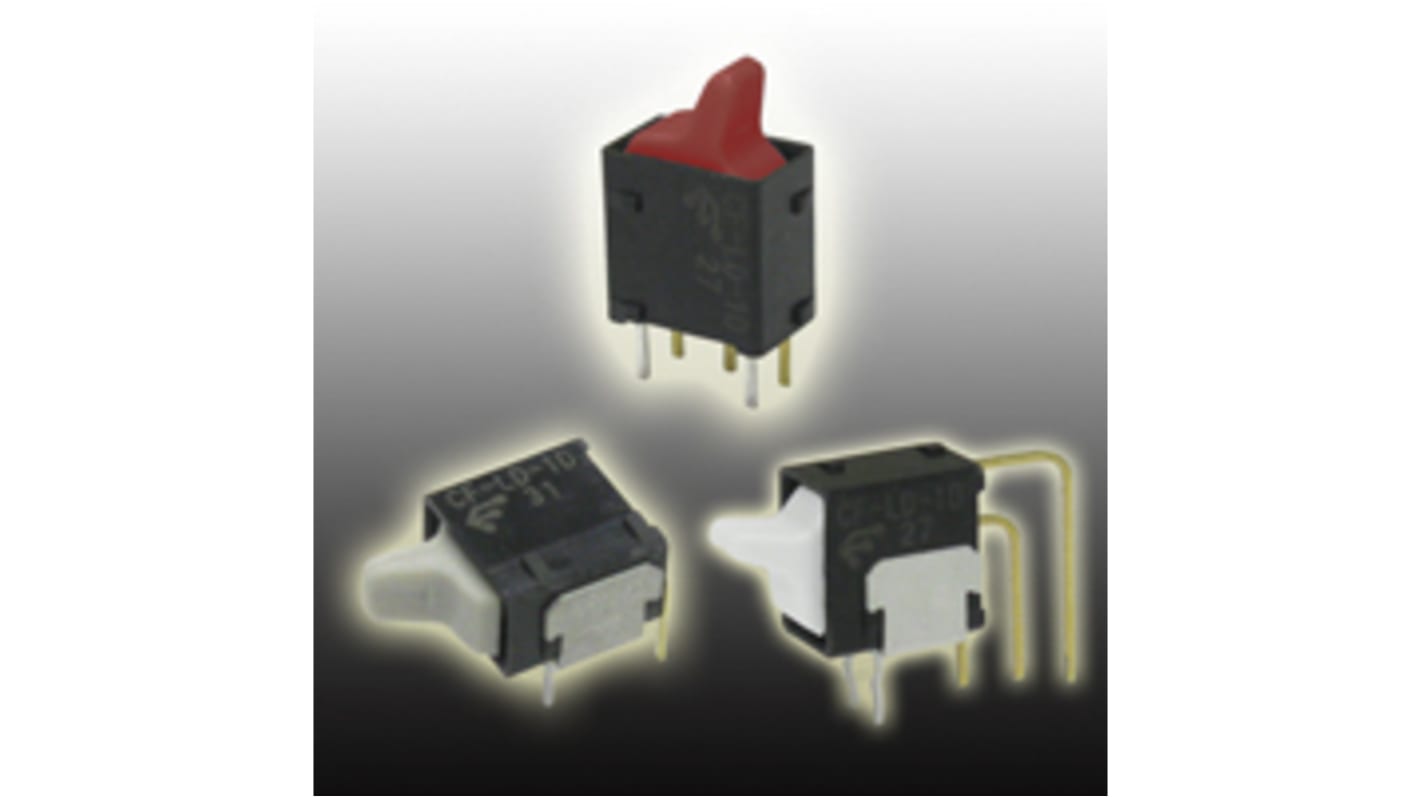

Nidec Components Through Hole Slide Switch SPDT Latching 100 mA Lever
- RS Stock No.:
- 180-6952
- Mfr. Part No.:
- CF-LD-1DC6-AG2
- Brand:
- Nidec Components
Bulk discount available
Subtotal (1 bag of 25 units)**
$101.175
(exc. GST)
$111.30
(inc. GST)
Available for back order.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit | Per Bag** |
|---|---|---|
| 25 - 350 | $4.047 | $101.175 |
| 375 - 1225 | $3.884 | $97.10 |
| 1250 + | $3.723 | $93.075 |
**price indicative
- RS Stock No.:
- 180-6952
- Mfr. Part No.:
- CF-LD-1DC6-AG2
- Brand:
- Nidec Components
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Contact Configuration | SPDT | |
| Mounting Type | Through Hole | |
| Switch Operation | Latching | |
| Contact Current Rating | 100 mA | |
| Terminal Type | Vertical PC Pin | |
| Actuator Type | Lever | |
| Length | 7.9mm | |
| Width | 5mm | |
| Depth | 10.8mm | |
| Dimensions | 7.9 x 5 x 10.8mm | |
| Contact Resistance | 80mΩ | |
| Voltage Rating | 28V ac/dc | |
| Mechanical Life | 50000Cycles | |
| Operating Temperature Range | -40 → +85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Actuator Material | Polyamide | |
Select all | ||
|---|---|---|
Brand Nidec Components | ||
Contact Configuration SPDT | ||
Mounting Type Through Hole | ||
Switch Operation Latching | ||
Contact Current Rating 100 mA | ||
Terminal Type Vertical PC Pin | ||
Actuator Type Lever | ||
Length 7.9mm | ||
Width 5mm | ||
Depth 10.8mm | ||
Dimensions 7.9 x 5 x 10.8mm | ||
Contact Resistance 80mΩ | ||
Voltage Rating 28V ac/dc | ||
Mechanical Life 50000Cycles | ||
Operating Temperature Range -40 → +85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Actuator Material Polyamide | ||
